Technical Specifications
Product Overview
Comprehensive Hydraulic Diagnostic Solution

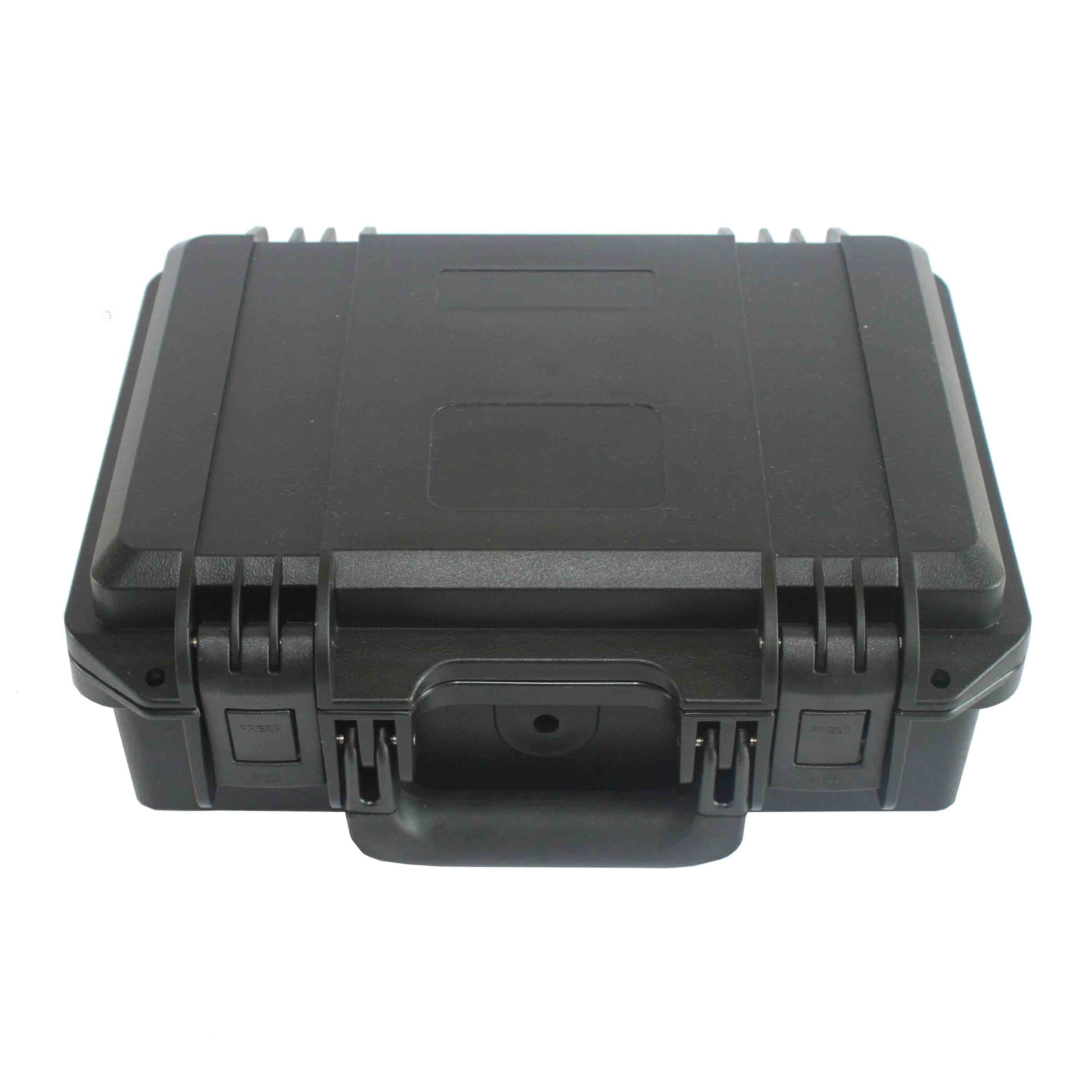

The XZTK-70D(C) hydraulic pressure test kit is a professional-grade diagnostic suite designed for the rigorous maintenance requirements of heavy construction equipment. It provides technicians with the tools necessary to measure and troubleshoot hydraulic system pressures across a vast array of global excavator platforms. Housed in a durable case for field portability, this kit ensures accurate system diagnostics to prevent pump, valve, and cylinder failures.
Performance Metrics
Key Performance Specifications
10,000 PSI
Max Pressure
700 BAR
Max Pressure
70 MPa
Max Pressure
1.5 m
Hose Length
Compatibility & Fittings
Test Couplings Included
- G1/8
- G1/4
- G3/8
- M10*1
- M10*1.25
- M12*1.5
- M14*1.5
- UNF7/16-20
- UNF1/2-20
- UNF9/16-18
- NPT1/4-18
- R1/4-19
- JIC37°-7/16UNF
- Supported Standards
- SAE JIC-37°ORFSBSPPJIS30°
Equipment & Components
Included Components
| Component | Quantity |
|---|---|
| Digital Hydraulic Gauges | 2 |
| Test Hoses | 2 |

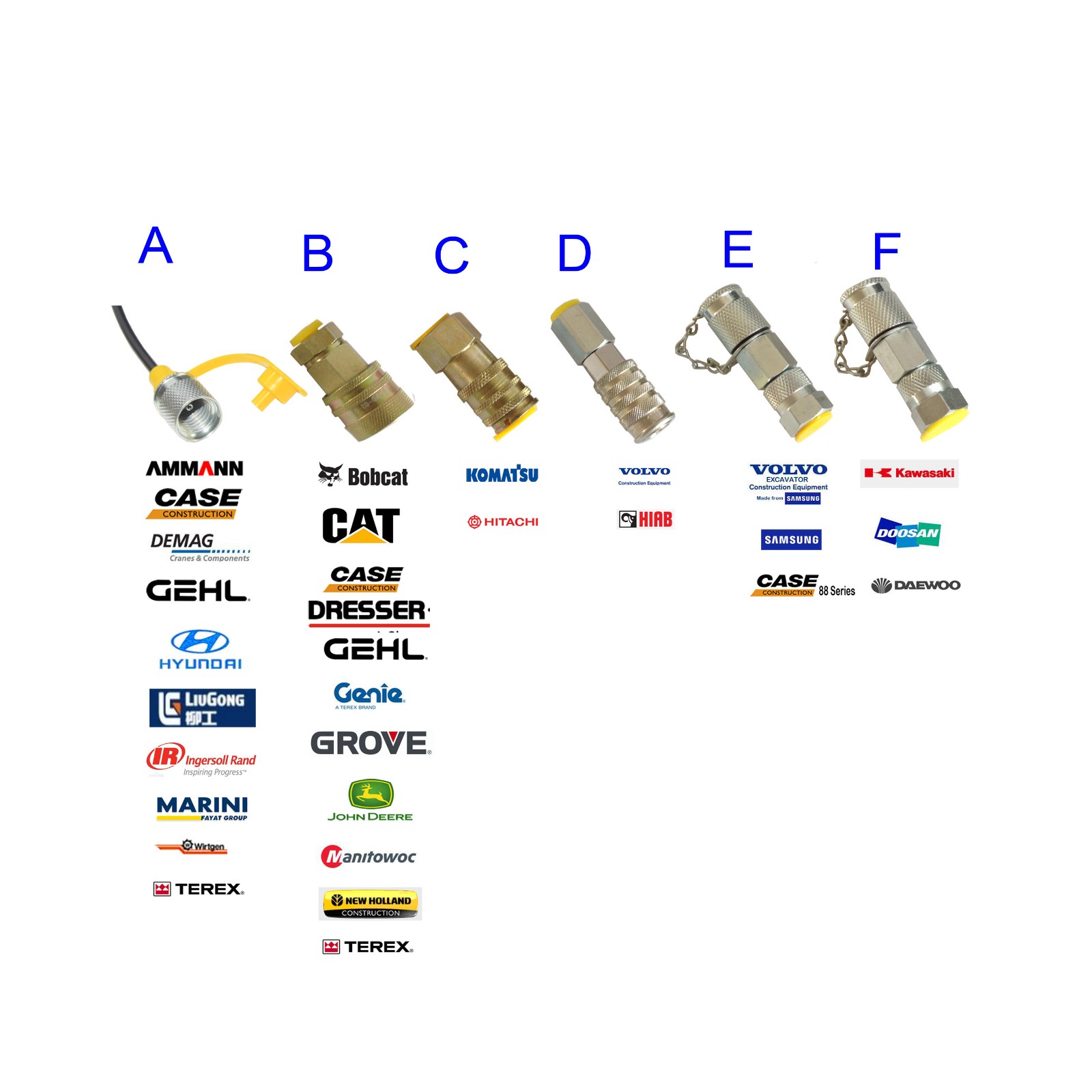

| Quick Connectors (A-F) | 6 |
