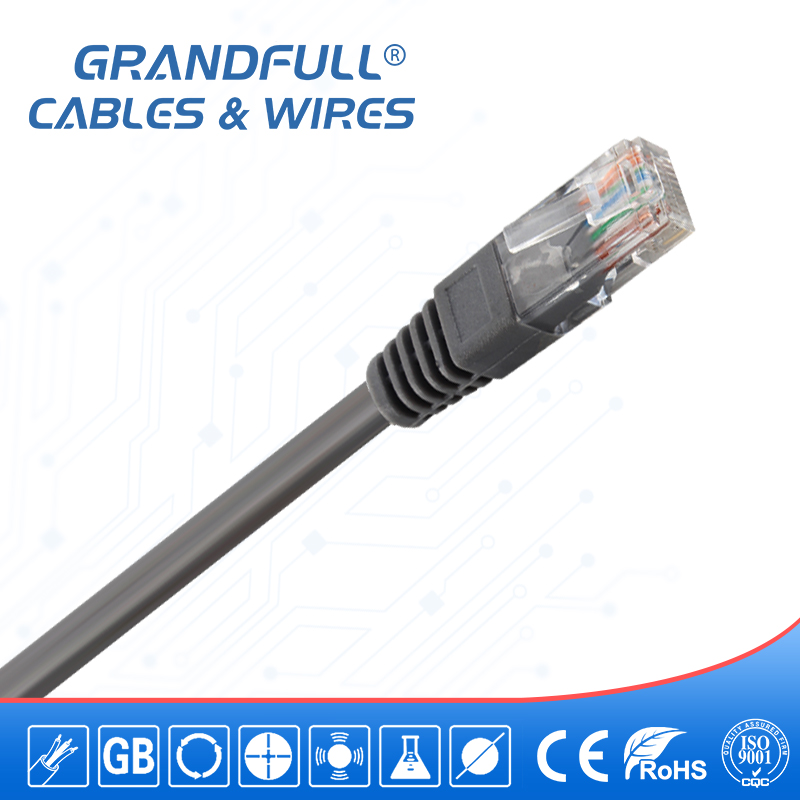

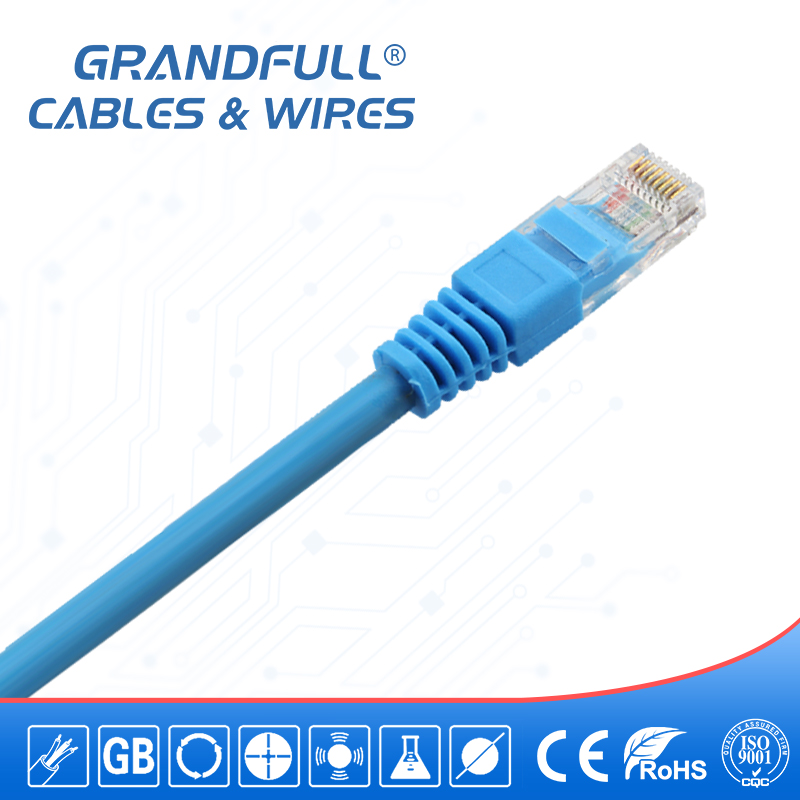

Ethernet Patch Cord
This high-quality Ethernet patch cord is designed for indoor network installations. Shielding, conductor material, and diameter are optional.
Technical Specifications
Product Overview
High-Performance Ethernet Networking
These professional-grade Ethernet patch cords are engineered for reliable data transmission in demanding network environments, including 5G networks, intelligent buildings, and data centers. Designed for indoor installations, the cables offer excellent wear and pressure resistance, ensuring long-term durability and minimal signal loss. Each cable is rigorously tested to meet international standards, providing a stable and secure foundation for voice, image, and video transmission.

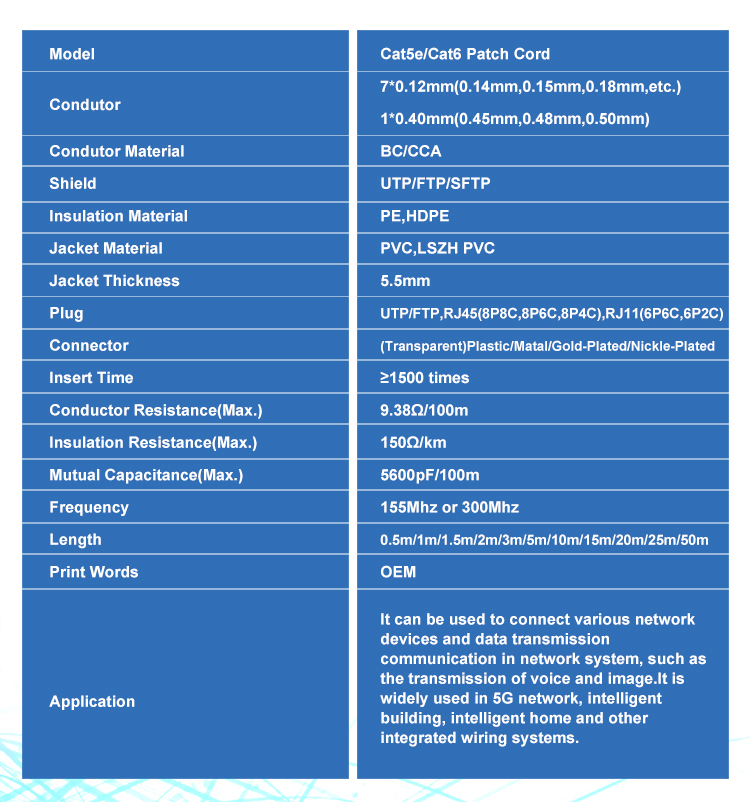

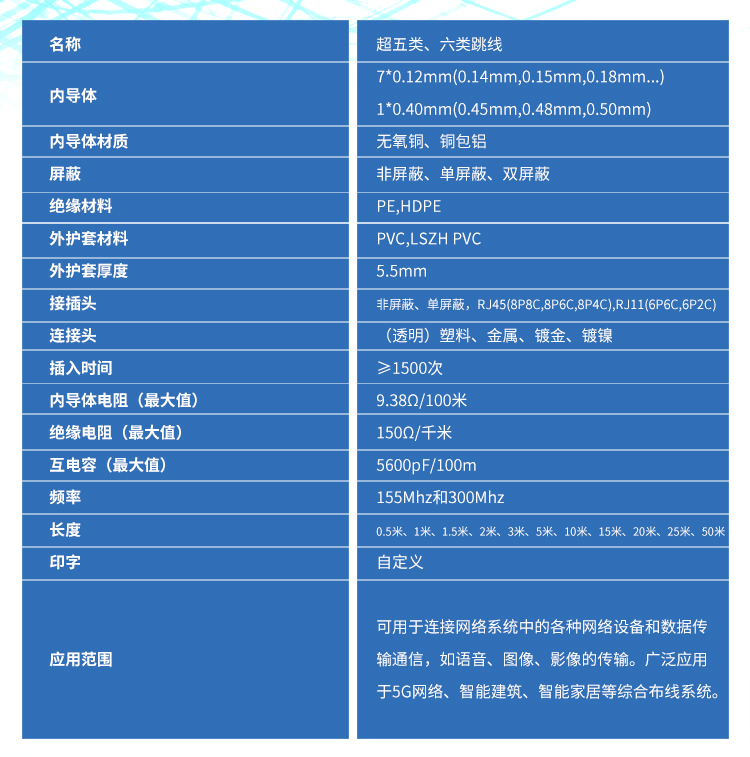

Technical Specifications
Conductor Details
| Parameter | Value/Options |
|---|---|
| Structure | 7*0.12mm (0.14mm, 0.15mm, 0.18mm) or 1*0.40mm (0.45mm, 0.48mm, 0.50mm) |
| Material | Oxygen-free copper or Copper-clad aluminum |
| Max Resistance | 9.38 Ω/100m |
Electrical Performance
150 Ω/km
Insulation Resistance (Max)
5,600 pF/100m
Mutual Capacitance (Max)
300 MHz
Frequency Support
Construction & Materials
Cable Construction
- Shielding: UTP, FTP, or SFTP options
- Insulation: PE or HDPE
- Jacket Material: PVC or LSZH PVC
- Jacket Thickness: 5.5mm

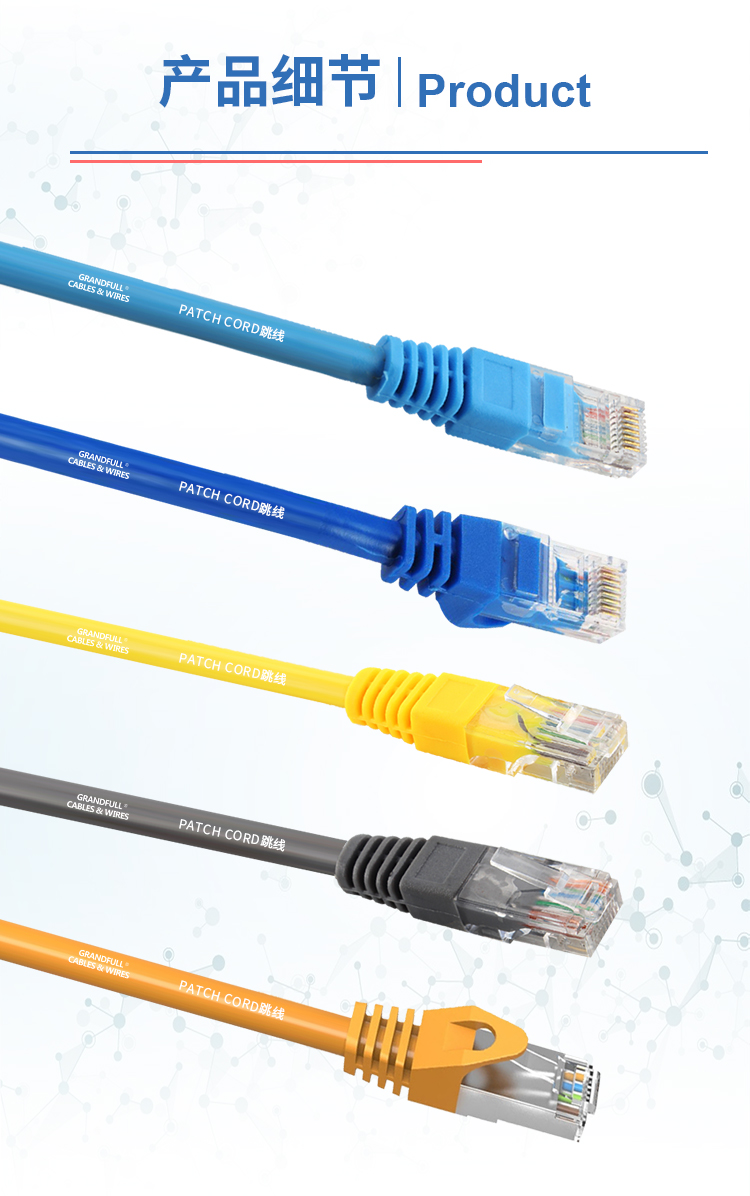

- Connector Compatibility
- RJ45 (8P8C, 8P6C, 8P4C)RJ11 (6P6C, 6P2C)Gold-platedNickel-platedMetalTransparent Plastic
Compliance & Quality
Certifications
ISO 9001ISO 14001ISO 18001CERoHSFluke Test Passed
- Durability Rating
- 1500 cycles
Logistics
- Available Lengths
- 0.5m1m1.5m2m3m5m10m15m20m25m50m
