Technical Specifications
Overview

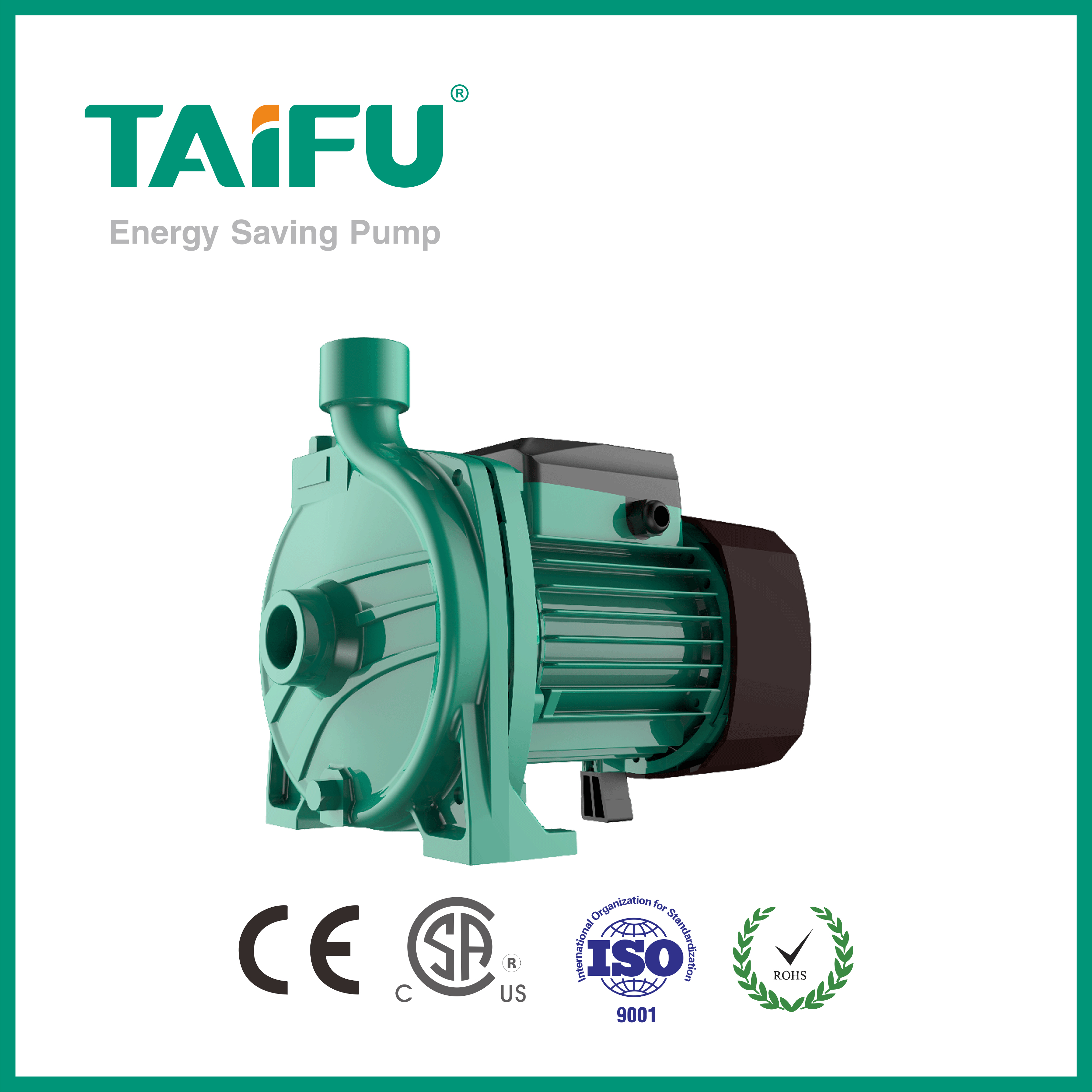

Professional Centrifugal Pump
This high-performance centrifugal pump is engineered for superior efficiency and long-term durability in professional applications. Featuring a reinforced motor body with enhanced heat dispersion and high-precision components, it ensures reliable operation under demanding conditions. The design prioritizes longevity through advanced mechanical seals and corrosion-resistant materials, making it a robust solution for global industrial needs.
Certifications
- Compliance and Quality
- CECSAISO 9001RoHS
Motor Specifications
- Insulation Class
- Class F copper wire (heat resistance up to 155°C)
- Cooling Improvement
- 20 %
Technical Performance
Model Performance Data
| Model | Power (kW) | Max Flow (l/min) | Max Suction (m) |
|---|---|---|---|
| TCP130 | 0.37 | 86 | 8 |
| TCP146 | 0.55 | 102 | 8 |
| TCP158 | 0.75 | 105 | 8 |
| TCP170 | 1.1 | 100 | 8 |
| TCP200 | 1.5 | 120 | 8 |
Design and Materials
Material Composition
- Impeller: Brass
- Mechanical Seal: DE carbon
- Pump Body: Electrophoresis treated cast iron
- Fan Cover: Reinforced nylon
- Mechanical Seal Life Extension
- 170 %
