Technical Specifications
Product Overview
High-Efficiency Intelligent Water Pump
This intelligent water pump is engineered for superior reliability and energy efficiency in both residential and commercial applications. Featuring an advanced motor with class F heat resistance and reinforced structural components, it delivers stable, high-performance operation. Built with premium materials like brass impellers and corrosion-resistant castings, it is designed for long-term durability and leak-proof performance.
Certifications & Standards
- Certifications
- CECSA (C US)ISO 9001RoHS
Motor & Electrical Specifications
Key Motor Metrics
155 °C
Max Heat Resistance
35 %
Mechanical Seal Life Extension
Construction & Materials
Component Materials
- Brass Impeller
- Reinforced Nylon Fan Cover
- Welded Stainless Steel Rotor Shaft
- Class F Copper Wiring

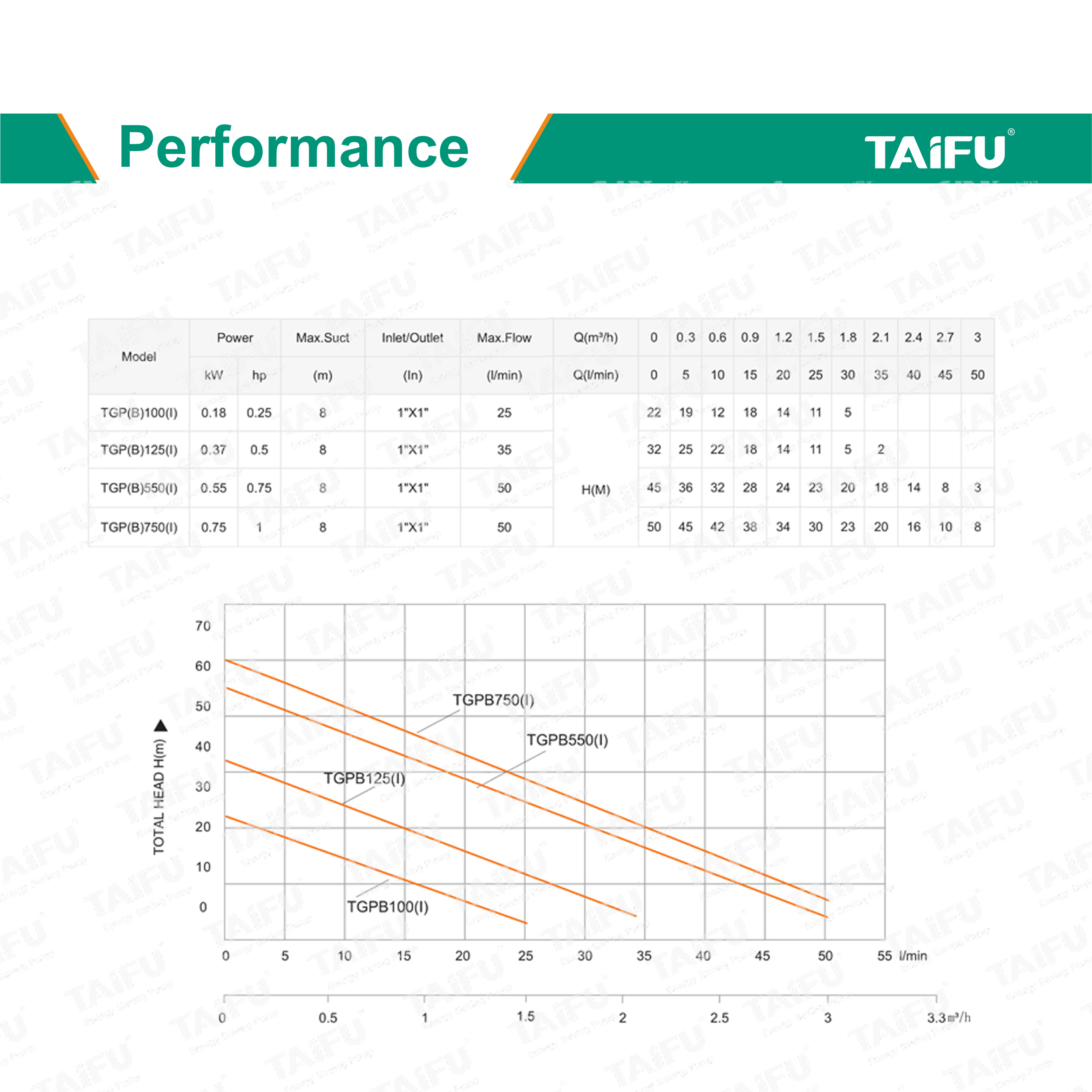

Performance Data
Model Specifications
| Model | Power (kW) | Max Suction (m) | Max Flow (l/min) |
|---|---|---|---|
| TGP(B)100(I) | 0.18 | 8 | 25 |
| TGP(B)125(I) | 0.37 | 8 | 35 |
| TGP(B)550(I) | 0.55 | 8 | 50 |
| TGP(B)750(I) | 0.75 | 8 | 50 |
