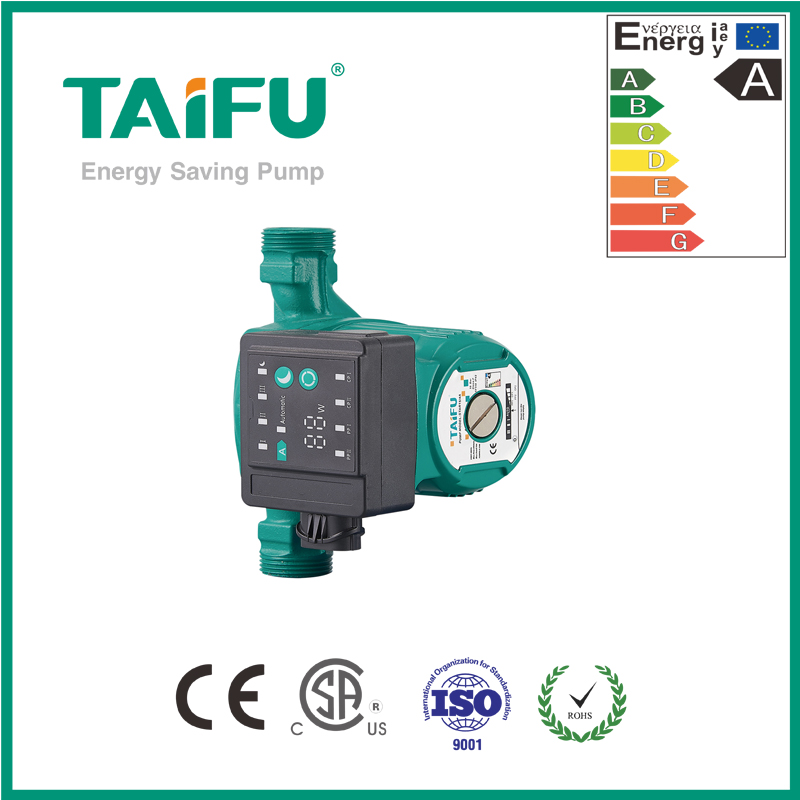

Energy Efficient Water Circulation Pump
This circulating pump is designed for efficient water circulation in heating, cooling, and domestic hot water systems. It features an automatic control mode for optimized performance and energy consumption.
Technical Specifications
Product Overview
High-Efficiency Circulation Solution
This energy-efficient water circulation pump is engineered for optimal performance in heating, cooling, and domestic hot water systems. Featuring advanced variable frequency technology and a permanent magnet rotor, it ensures low energy consumption and meets strict European ERP standards. Built with durable materials like graphite ceramic shafts and cast iron bodies, this pump is designed for long-term reliability with a failure rate of less than 0.8%.
Technical Specifications
Noise Levels
40 dB
100W Model
48 dB
200W Model
- Max Fluid Temperature
- 110 °C
- Wire Insulation Class
- Class H
- EEI Rating
- 0.23 EEI
- Failure Rate
- < 0.8%
Construction & Materials
Key Components
- Electrophoretic cast iron body
- Graphite ceramic shaft
- Permanent magnet rotor
- Ceramic bearing
- GF-PP impeller
Certifications & Compliance
- Certifications
- CECSAISO 9001RoHSERP Grade A
