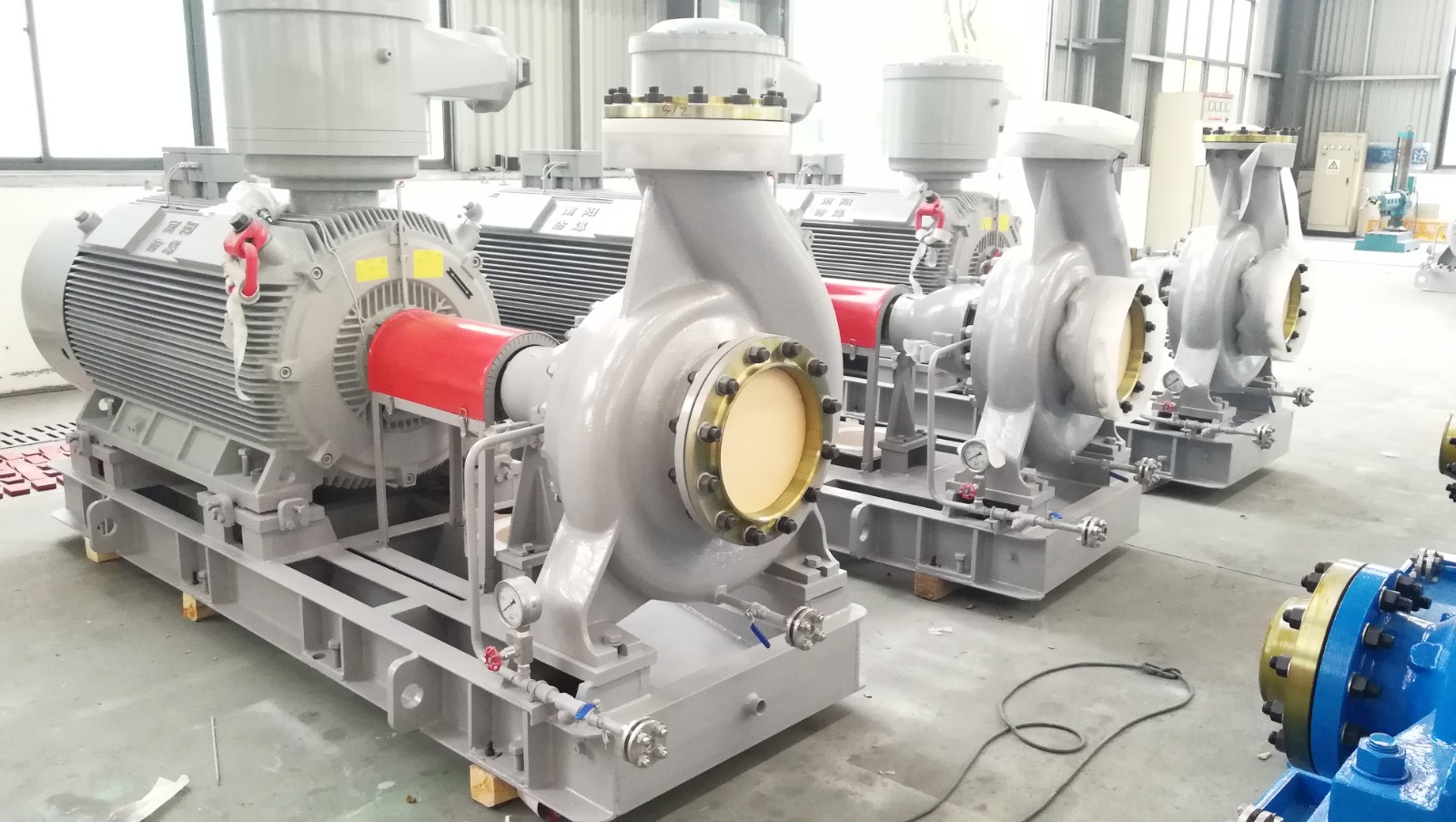

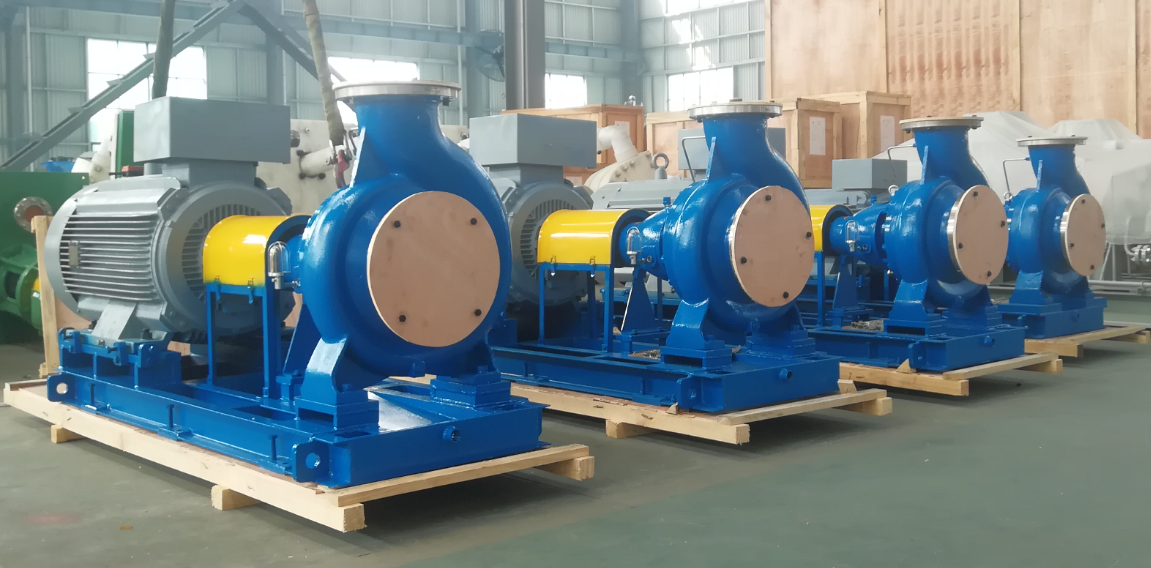

End Suction Centrifugal Pump ISO5199
This ISO5199 end suction pump is a cost-effective solution for various applications. It is suitable for conveying clean or slightly polluted liquids, as well as low and high-temperature liquids.
Technical Specifications
Overview
SCZ Series Process Pump
The SCZ series is a horizontal, single-stage, single-suction, radial split, foot-mounted centrifugal pump engineered to meet the ISO5199 standard. Designed for durability and versatility, it efficiently handles clean or slightly polluted liquids, including neutral, corrosive, flammable, explosive, or toxic media. Its full pull-out design allows for easy maintenance of internal components without disconnecting the pump casing or motor.

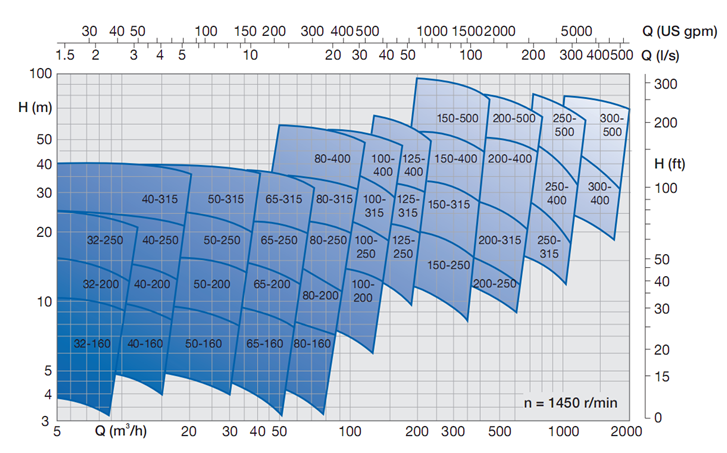

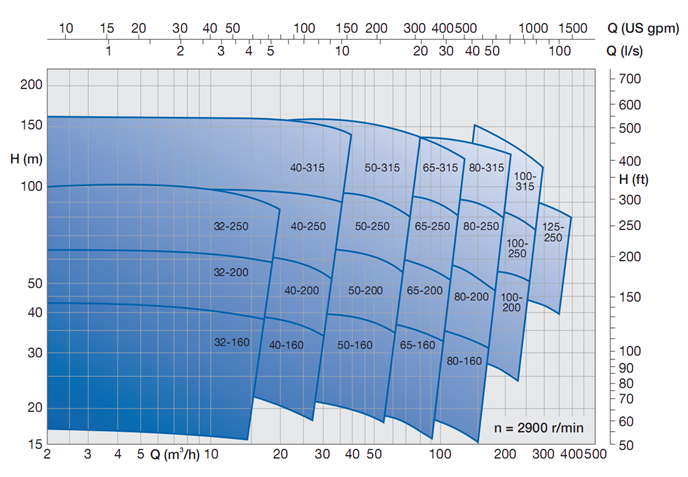

Performance
- Flow Rate
- 2000 m3/h
- Head
- 160 m
- Pressure Rating
- 2.5 MPa
- Operating Temperature
- 150 °C
- Nozzle Size
- 32 - 300 mm

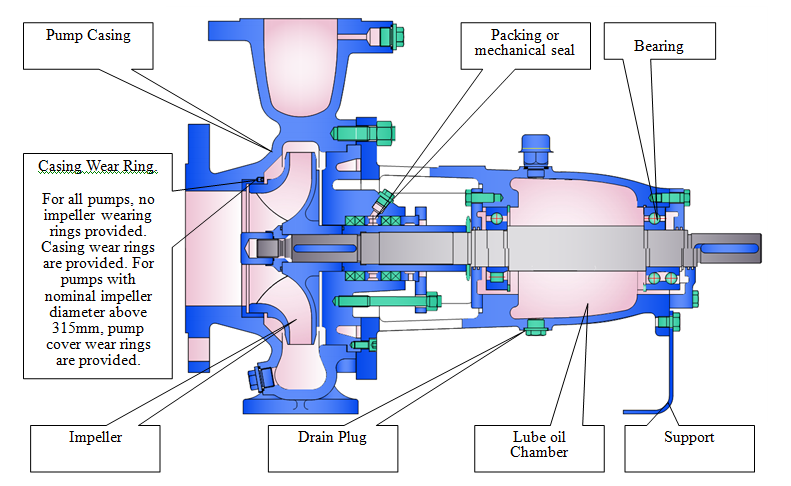

Design Features
Standard Compliance
ISO 5199API 610 (Auxiliary System)
- Shaft Seal Options
- Packing SealSingle Mechanical SealDouble Mechanical Seal
Materials
Available Material Grades
- S-5 (Carbon Steel)
- A-7 (304 Stainless Steel)
- A-8-1 (316 Stainless Steel)
- A-8-2 (316L Stainless Steel)
- D-1
- D-2
Material Test Pressures
| Material Category | Test Pressure |
|---|---|
| Cat I (304, 304L) | 2.7 MPa |
| Cat II (316, 316L, 804, 904, 904L, 20# Alloy, Ti) | 2.7 MPa |
| Cat III (HT 250, HT 200) | 2.1 MPa |
| Cat IV (ZG230-450) | 3.75 MPa |
Applications
- Industry Applications
- ChemicalPetrochemicalRefineryPower PlantPaper IndustryPharmaceuticalSugar IndustryFood ProcessingSteel PlantWater Supply & Drainage
