End Mill Sharpener 4-14mm

This portable end mill sharpener is designed for precise and rapid grinding of 2, 3, and 4-flute end mills. It utilizes a Taiwan diamond grinding wheel for accurate angle creation and long service life.

Request a Quote Download PDFPDF

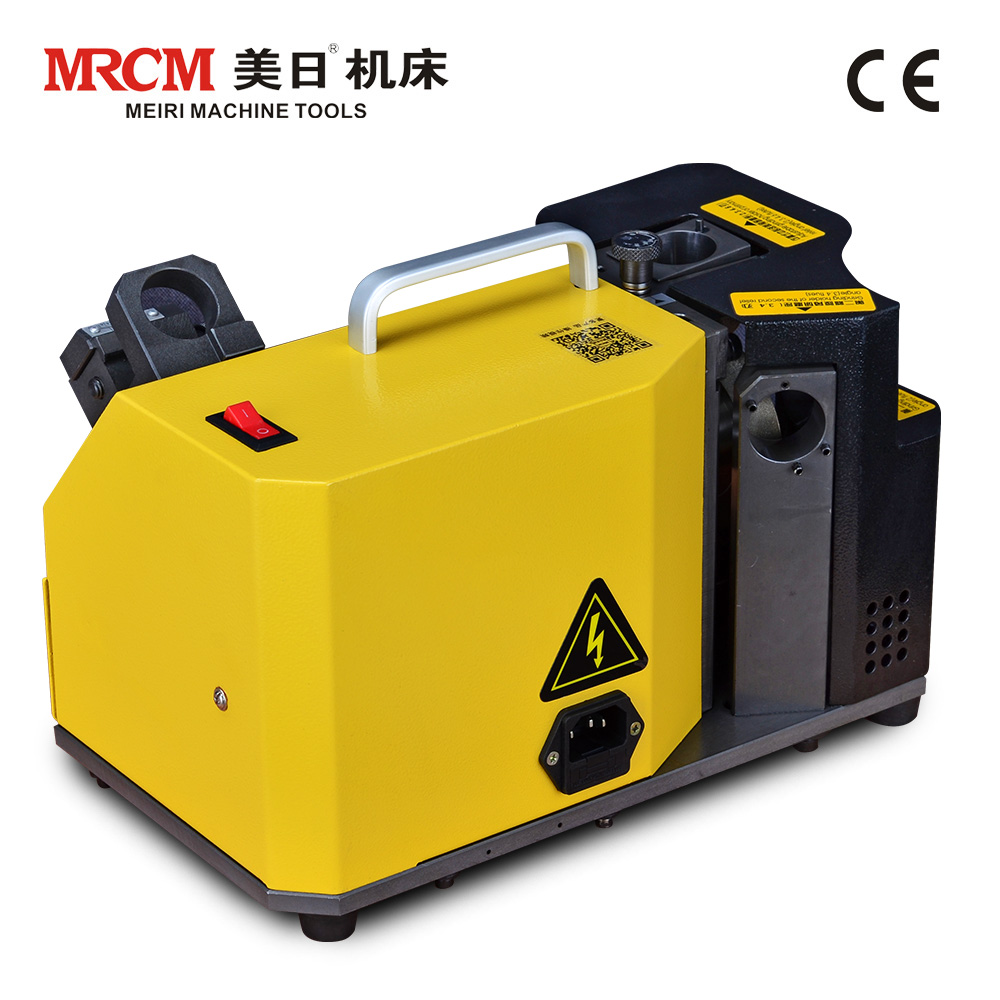

MR- X3 4- 14mm High Quality End Mill Tool Grinder with high speed - Image 1

Technical Specifications

Overview

Precision End Mill Sharpening

This portable end mill sharpener is engineered for rapid, high-precision maintenance of 2, 3, and 4-flute end mills. Designed for simplicity, it allows users to achieve accurate grinding angles without requiring advanced machining skills. The unit features a robust construction and is compatible with both carbide and HSS materials, making it an essential tool for extending the service life of your cutting inventory.

Compact and robust design suitable for professional workshop environments.

Technical Specifications

Rotational Speed

4,400 rpm

Speed

Grinding Diameter Range: 4mm - 14mm
Power Requirements: 220V / 160W
Point Angle Range: 0° - 5°
Dimensions: 35 x 25 x 25 cm
Weight: 14 kg

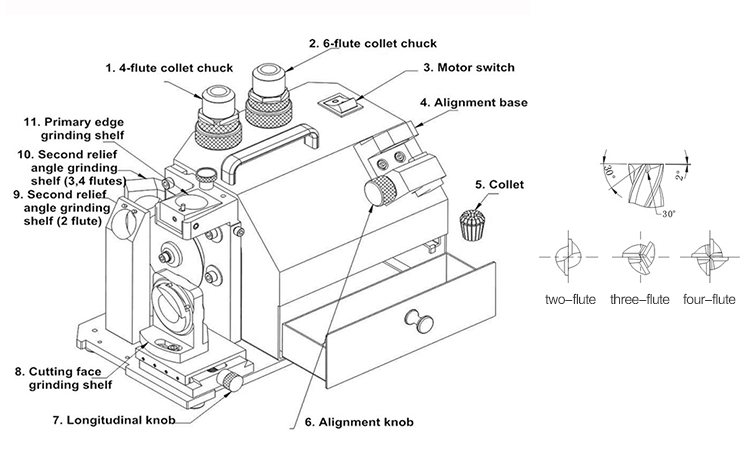

Diagram showing the various grinding shelves and adjustment knobs on the end mill sharpener. — Detailed layout of grinding shelves and adjustment controls for precise tool sharpening.

Compatibility & Materials

Grinding Wheel Compatibility

Material Type	Wheel Type
Carbide	SDC (Standard)
HSS	CBN (Optional)

Compatible End Mill Flutes: 2-flute3-flute4-flute

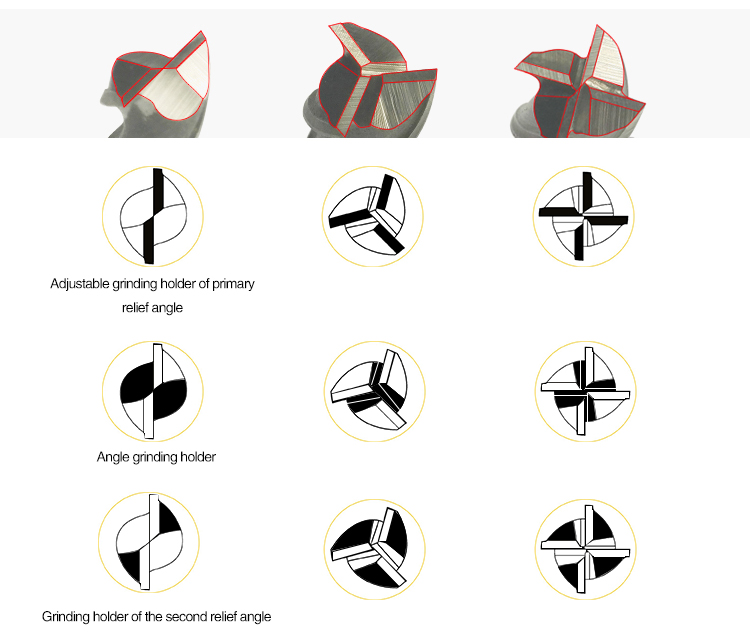

Close up of the adjustable grinding holders. — Adjustable holders for primary and secondary relief angles ensure consistent grinding geometry.

Included Equipment

Included Collet Sizes

4
6
8
10
12
14

Standard Accessories

SDC Grinding Wheel6 Collets2 Collet Chucks
