End Mill Sharpener 13-30mm

This portable end mill sharpener can grind 2, 3, and 4-flute end mills. Grinding is accurate and rapid, offering easy operation.

Request a Quote Download PDFPDF

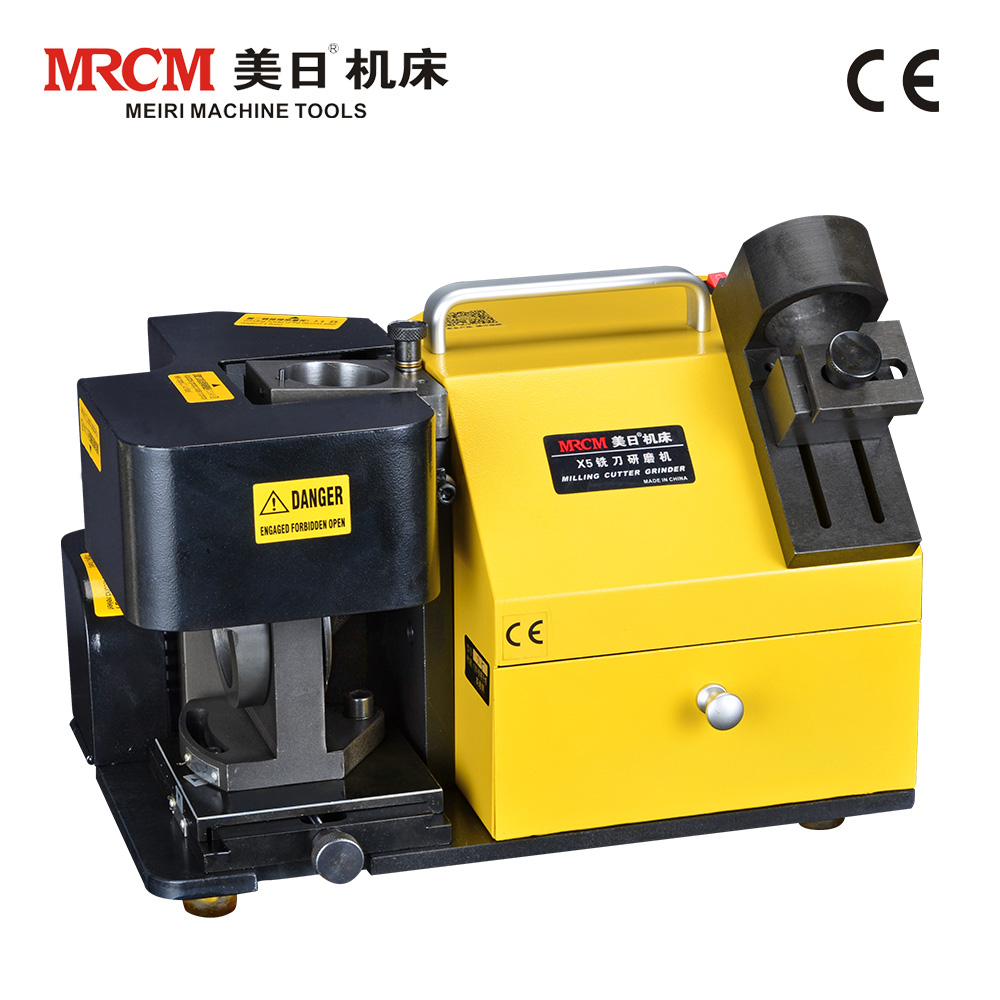

MR-X5 13-30mm High precision end mill sharpening machine - Image 1

Technical Specifications

Product Overview

High-Precision End Mill Sharpening

This portable end mill sharpener is designed for rapid and accurate grinding of 2-flute, 3-flute, and 4-flute end mills. Engineered for ease of use, it allows operators to achieve professional sharpening results without requiring advanced grinding skills. The machine is built for durability and precision, making it an essential tool for maintaining optimal cutting performance in small to medium enterprises, workshops, and repair facilities.

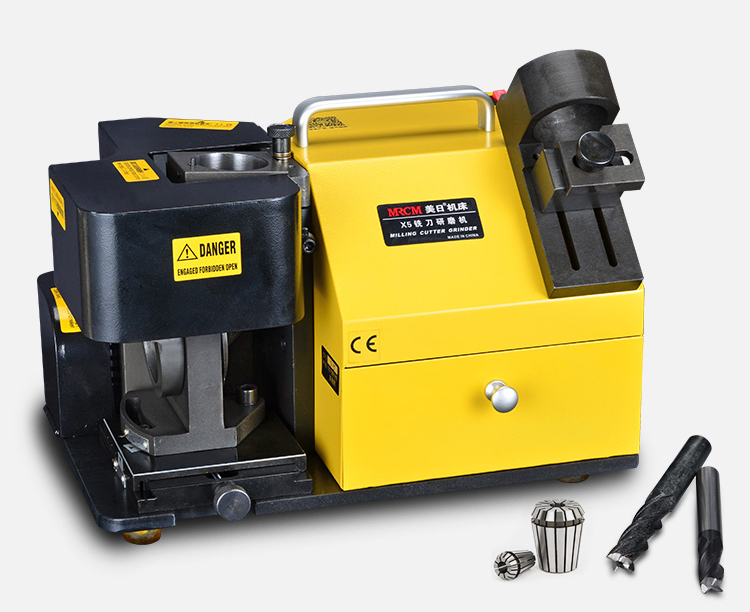

Front view of the end mill sharpener — Compact and portable design suitable for various workshop environments.

Technical Specifications

Diameter Range: 13 mm
Maximum Diameter: 30 mm
Power Supply: 220V / 250W
Rotation Speed: 4400 rpm
Point Angle: 0°-5°
Dimensions: 40 x 28 x 31 cm
Weight: 28 kg

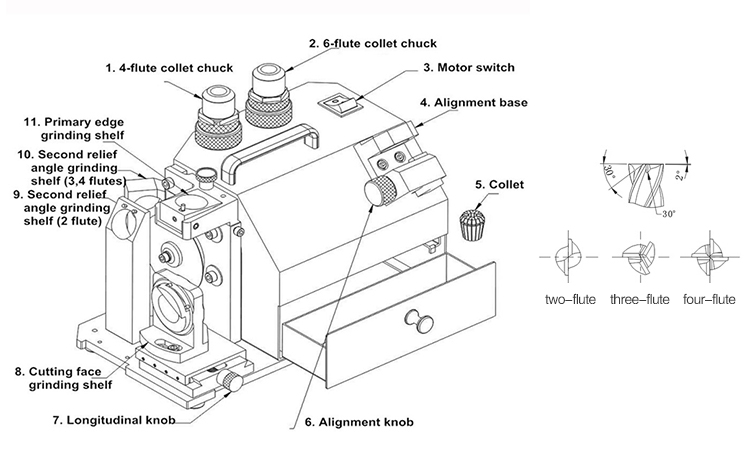

Diagram showing the various adjustment knobs and grinding shelves on the sharpener — Detailed view of the sharpening machine controls, including alignment bases and grinding shelves for primary and secondary relief angles.

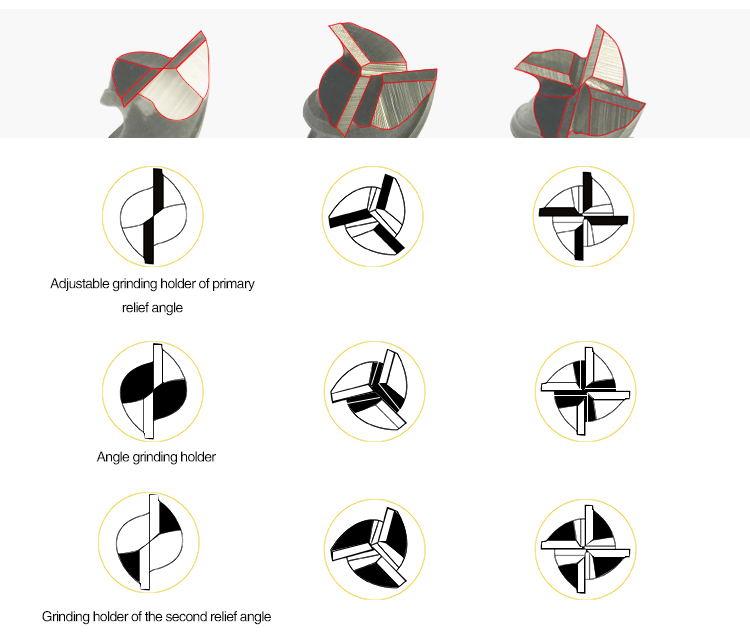

Close up of the adjustable grinding holders — The machine features specialized grinding holders for primary and secondary relief angles to ensure precise tool geometry.

Capabilities

Compatible Flute Counts: 2-flute3-flute4-flute

Equipment

Standard Equipment

SDC Grinding Wheel (for Carbide)
Collets: 13, 14, 16, 18, 20, 22, 24, 26, 28, 30mm
Collet Chuck (2, 4 flutes)
Collet Chuck (3, 6 flutes)

Optional Equipment

CBN Grinding Wheel (for HSS)
Collets: 8, 10, 12mm
