End Mill Grinder 6-20mm with ER25 Collets

This end mill grinder is designed for ball end mills. Grinding is accurate, rapid, and easy, requiring no special skills.

Request a Quote Download PDFPDF

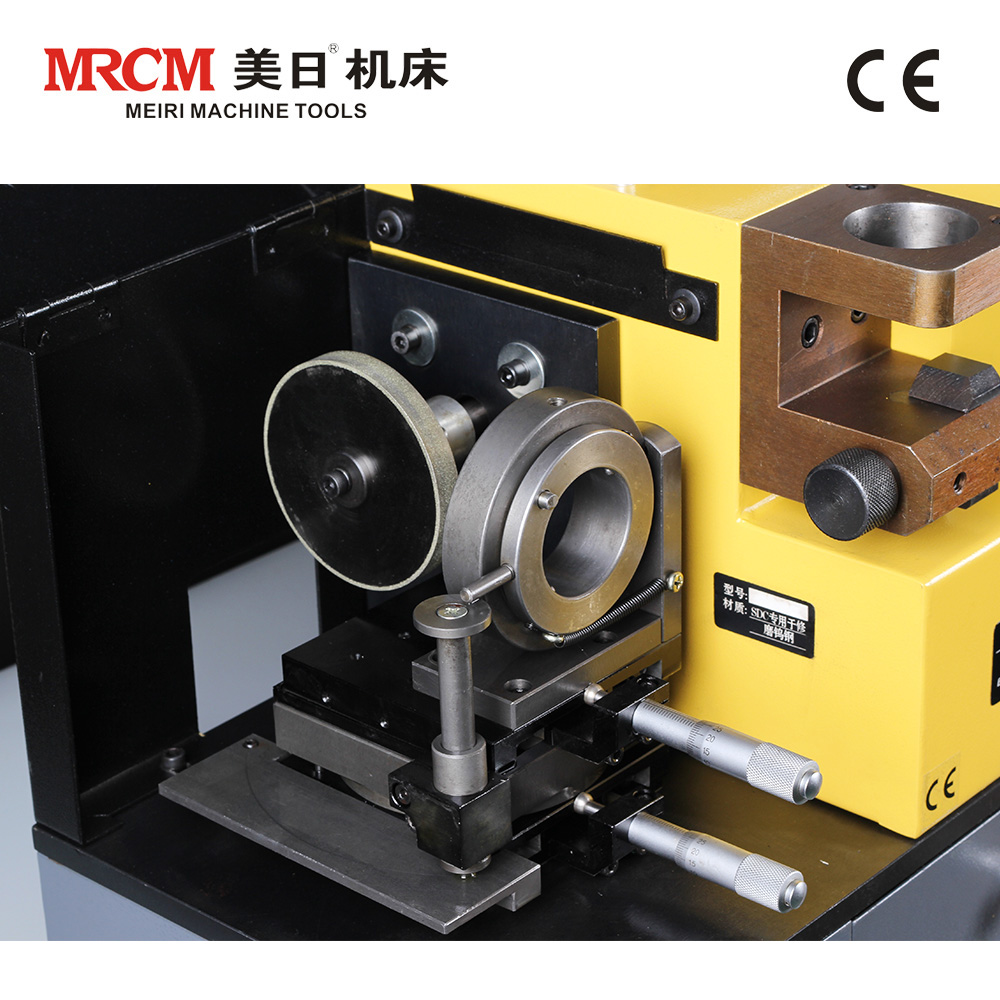

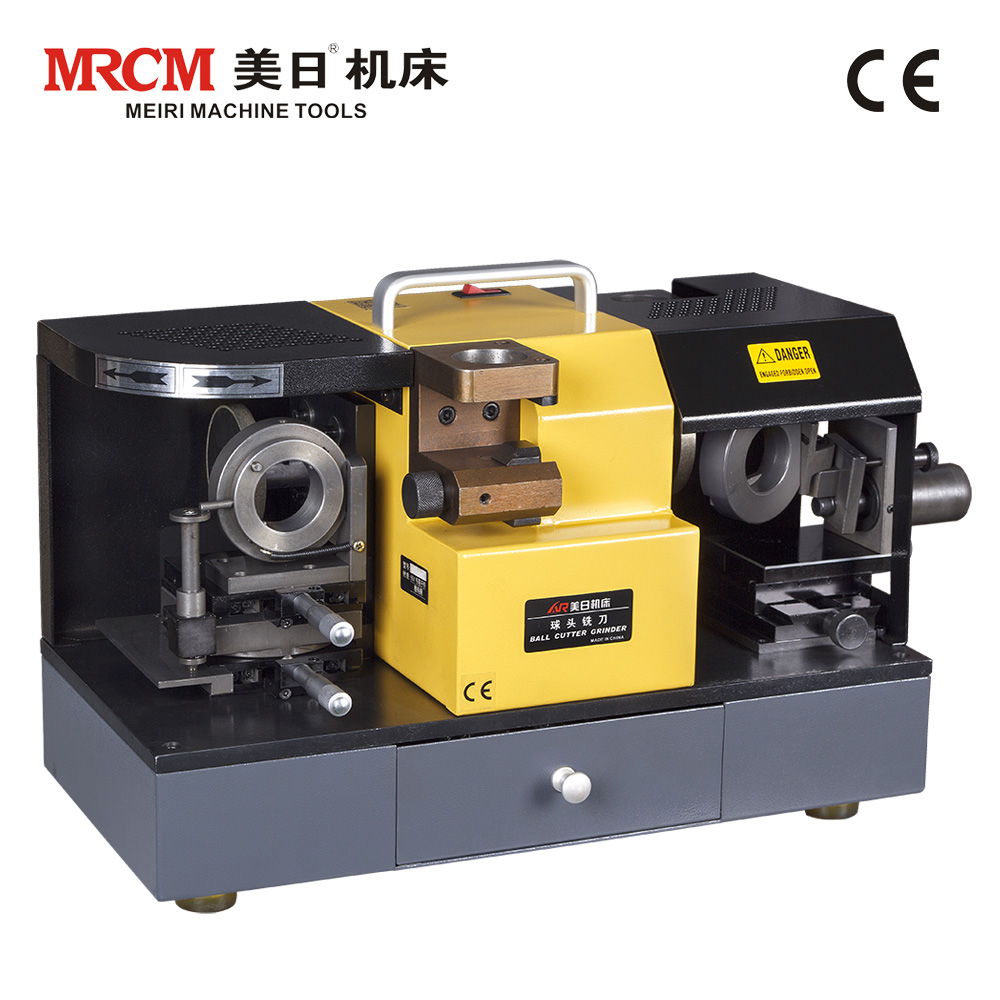

MRCM 6- 20mm ball mill machine grinder MR- X8 with ER25 collects FOR grinding end mill - Image 1

Technical Specifications

Overview

Precision Grinding Solution

This specialized grinding machine is designed for the accurate and rapid sharpening of ball end mills. It simplifies the grinding process, requiring no advanced operator skills to achieve professional results. Built with high-quality components, it ensures long service life and precise cutting angles for optimal tool performance.

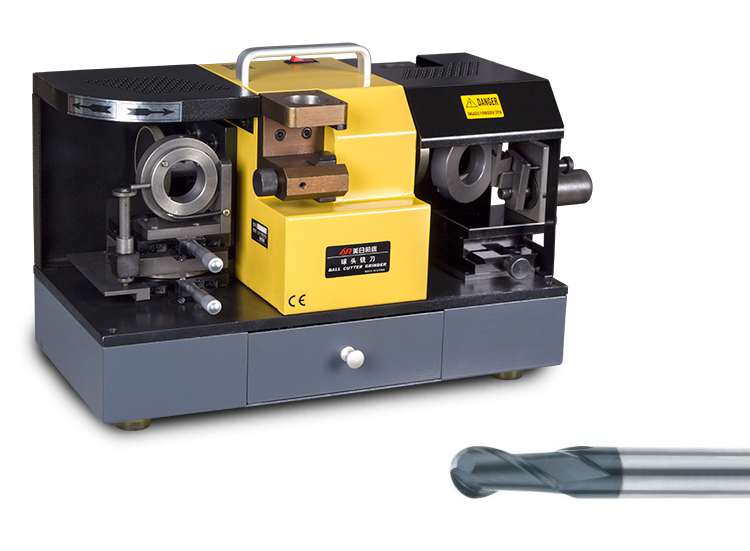

Front view of the ball mill grinding machine — Specialized grinder for precision sharpening of ball end mills.

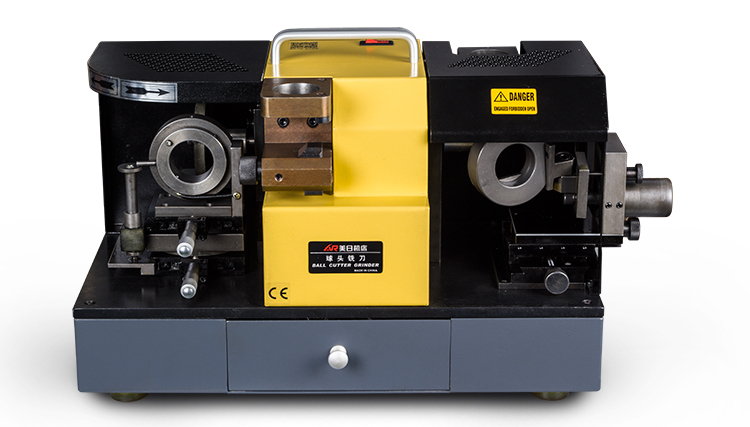

Robust construction designed for stability and consistent grinding results.

Technical Specifications

Model: MR-X8
Grinding Diameter Range: 6 mm
Max Grinding Diameter: 20 mm
Rotational Speed: 4400 rpm
Power Supply: 220V/250W
Dimensions: 60 x 29 x 37 cm
Weight: 40 kg

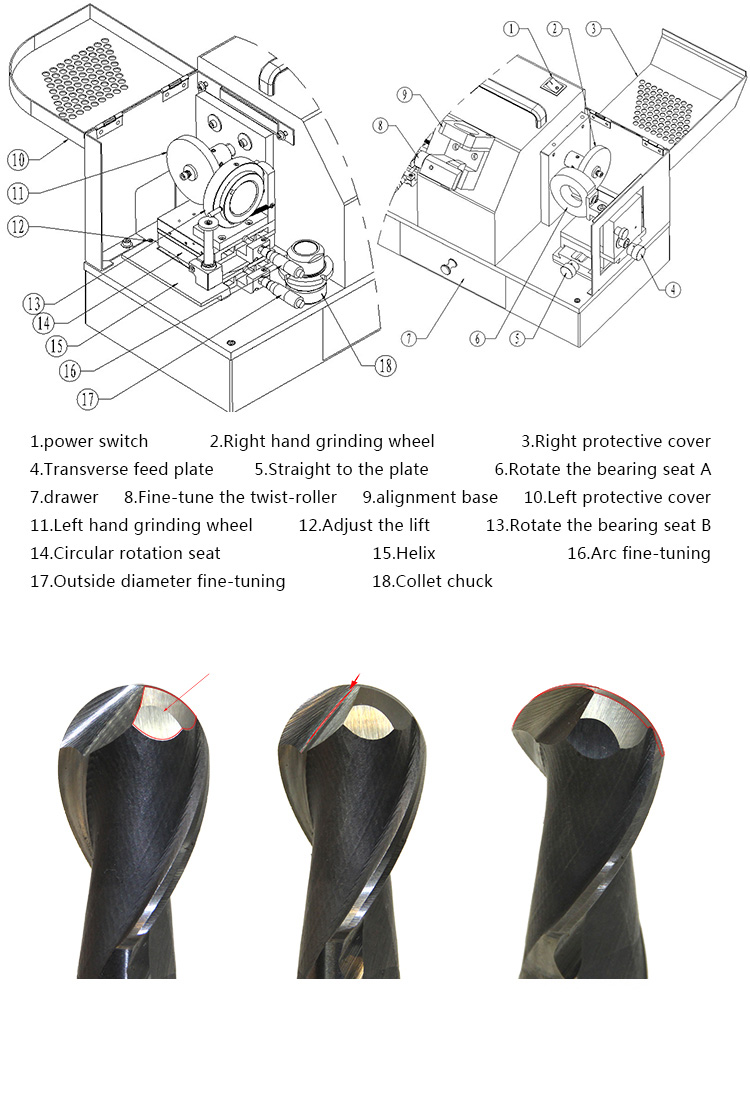

Annotated diagram of the grinding machine showing key operational parts — Detailed view of machine components including feed plates, grinding wheels, and adjustment controls.

Equipment & Compatibility

Grinding Wheel Compatibility

Wheel Type	Material Application
SDC (Standard)	Carbide
CBN (Optional)	HSS

Standard Equipment

Ball grinding wheel (SDC)
Front grinding wheel (SDC)
Collet chuck
8-piece collet set

Included Collets: Φ6Φ8Φ10Φ12Φ14Φ16Φ18Φ20

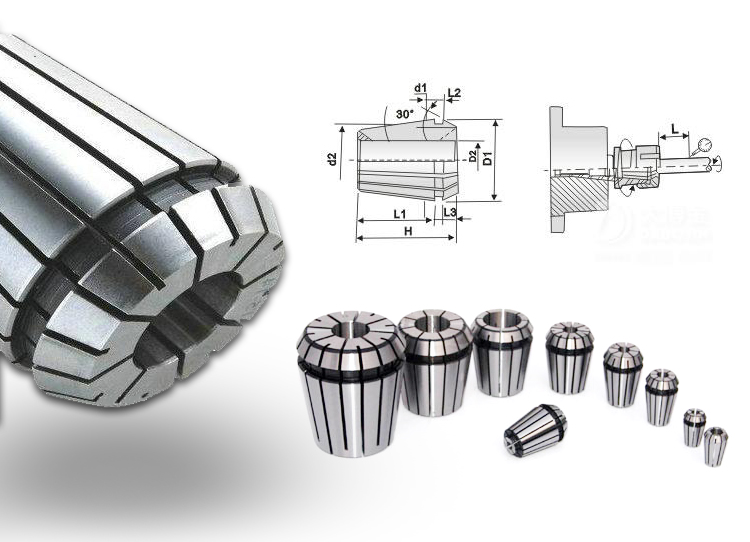

Close up of the precision collet chuck set — Precision collet chuck set designed for secure tool holding and accurate centering.
