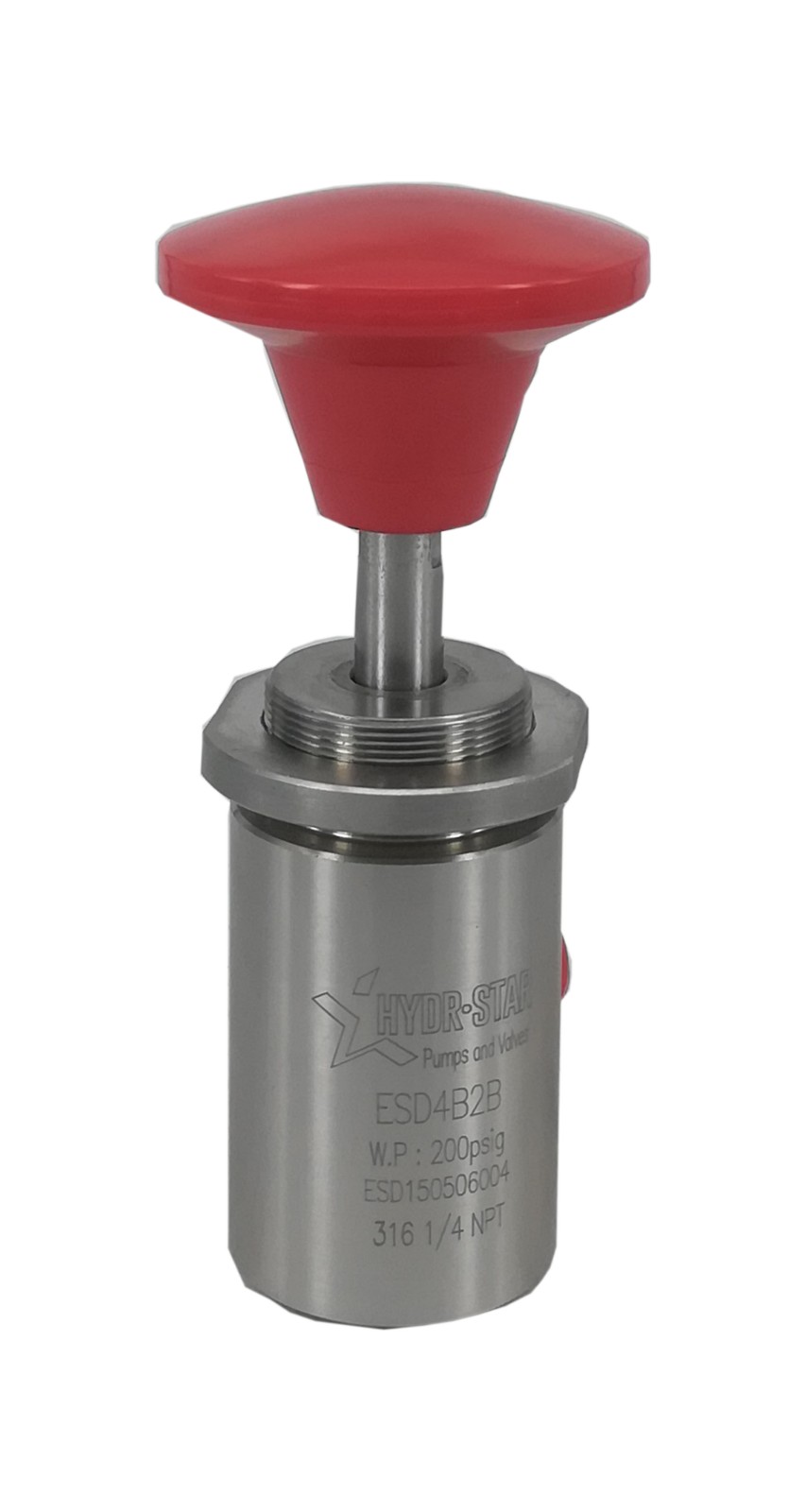

Emergency Shutdown Valve
This emergency shutdown valve is designed to quickly close or exhaust a system in critical situations. It is commonly used in emergency shutdown control circuits to immediately close SSV or SDV actuators and surface-controlled subsurface safety valves.
Technical Specifications
Product Overview
Emergency Shutdown Capabilities
These emergency shutdown valves are precision-engineered for critical safety applications, designed to immediately close or exhaust systems in emergency scenarios. Built with 316 stainless steel, they offer exceptional durability and corrosion resistance for demanding pneumatic or hydraulic environments. With a large Cv factor for rapid system response and an easily repairable design, these valves ensure reliable performance and minimal downtime.

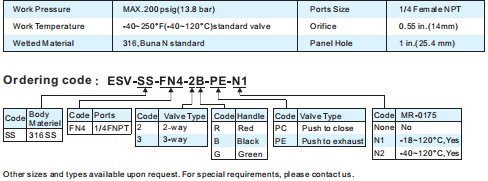

Technical Specifications
- Maximum Working Pressure
- 200 psig
- Temperature Range
- -40 to 250°F (-40 to 120°C)
- Port Size
- 1/4 Female NPT
- Orifice Diameter
- 0.55 in
- Panel Hole Size
- 1 in
Materials & Construction
- Body Material
- 316 Stainless Steel
- Standard Seal Material
- Buna N
- Compliance
- NACE MR-0175
Operational Features
Configuration Options
- 2-way
- 3-way
- Push to exhaust (Normally closed)
- Push to close (Normally opened)
Performance Highlights
200 psig
Max Pressure
14 mm
Orifice
