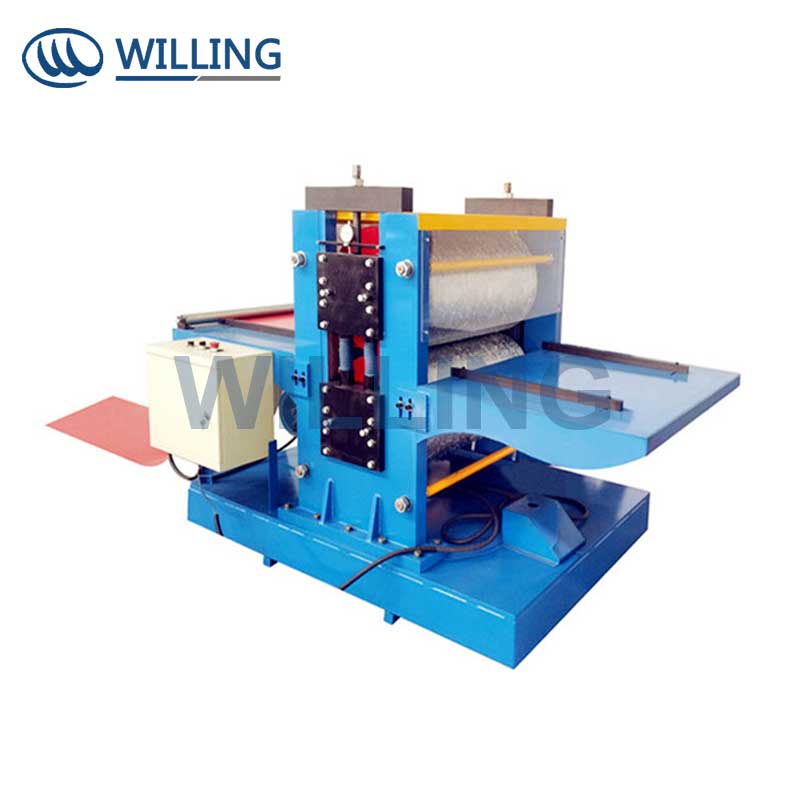

Embossing Machine for Metal and Plastic
This embossing machine is designed for creating textured surfaces on various materials. It utilizes an adjustable roller system to apply pressure and create the desired embossing pattern on metal sheets, plastic films, and more.
Technical Specifications
Overview
Professional Embossing Solution
This industrial embossing machine is engineered for producing high-quality textured surfaces on steel, aluminum, stainless metal sheets, and particle boards. Featuring a robust design and precise roller systems, it delivers clear, three-dimensional patterns suitable for diverse decorative material applications. The machine's compact footprint and efficient operation make it an ideal addition to both specialized workshops and integrated production lines.
Technical Specifications
Performance Metrics
15 m/min
Max Working Speed
2.2 kW
Main Motor Power
3,500 kg
Total Weight
Roller Specifications
| Specification | Value |
|---|---|
| Material | Cr12MoV |
| Diameter | 350mm |
| Max Width | 1300mm |
- Compatible Materials
- SteelAluminumStainless SteelParticle BoardPlastic Film
Operational Requirements
Input Material Specs
- Thickness: 0.35-0.4mm
- Coil Width: 914mm or 1250mm
- Material: Colored steel sheet at stress 33KSI
- Power Supply
- 380V / 3-Phase / 50Hz
- Machine Dimensions
- 1700mm x 1300mm x 1500mm
