Technical Specifications
Product Overview

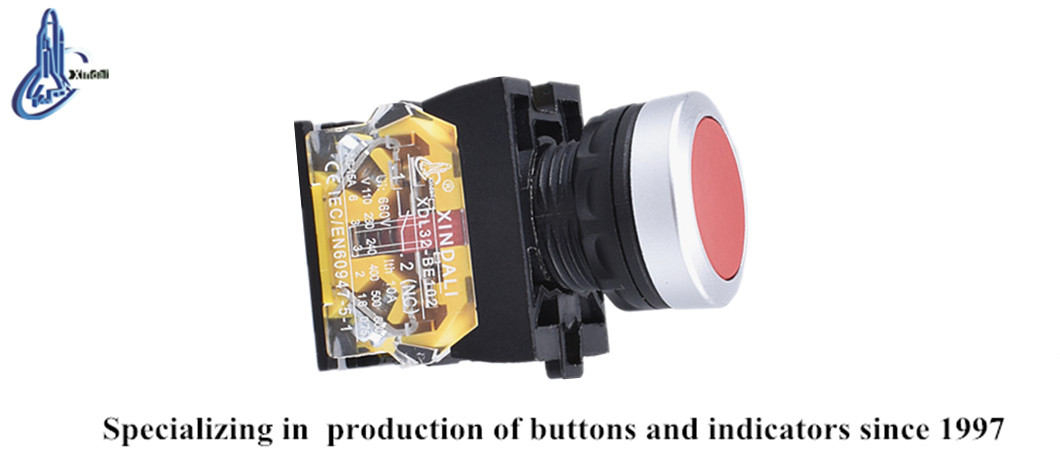

Industrial Push Button Switch
This waterproof push button switch is designed for reliable operation in demanding electrical control systems, including elevator applications. Built with high-grade anti-flam plastic and zinc alloy, it features specialized silver alloy contacts for excellent erosion resistance. The unit complies with international safety standards and offers a robust design with high impact and vibration resistance.
Electrical Specifications
- Rated Insulation Voltage
- 600 V
- Thermal Current
- 10 A
- Max AC Operating Voltage
- 660 V
- Max DC Operating Voltage
- 400 V
Environmental Durability
IP Rating
IP65IP66IP67IP68
- Operating Temperature
- -5°C to +55°C

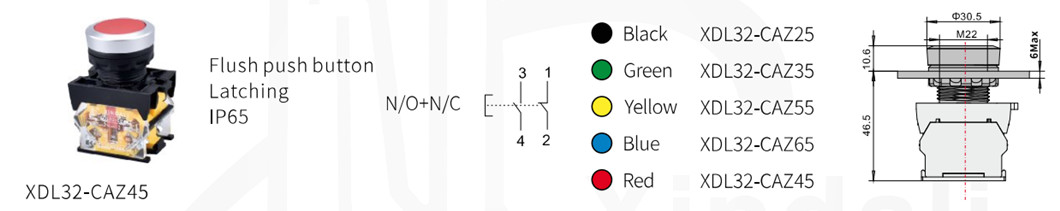

Mechanical Specifications
Mechanical Life
3,000,000 ops
Standard Button
300,000 ops
Emergency Button
- Fastening Torque
- 0.8 Nm
Compliance and Standards
International Standards
- IEC60947-5-1
- GB/T14048.1
- GB14048.5
- Certifications
- CEISO 9001ROSHUL
