Elevator Release Key Switch
This elevator release key switch provides secure access control for elevators. It features a key-operated mechanism for use in elevator control systems.
Technical Specifications
Product Overview
Professional Elevator Control Key Switch
The XDL16-11YF is a high-performance electrical key switch engineered specifically for reliable operation in elevator control systems. Featuring robust zinc alloy and anti-flame plastic construction, this switch is designed to withstand frequent mechanical and electrical cycles in demanding industrial environments. It provides secure, authorized access and precise signal control, meeting international safety and quality standards including CE and RoHS.
Electrical Ratings
Electrical Parameters
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Heating Current
2.5 KV
Withstand Voltage

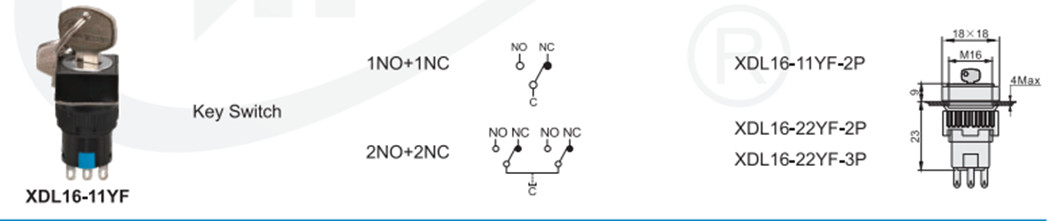

Physical Dimensions
Dimensions & Mounting
| Feature | Specification |
|---|---|
| Mounting Hole | M16 |
| Face Size | 18x18mm |
| Above Panel Height | 4mm |
| Total Height | 23mm |

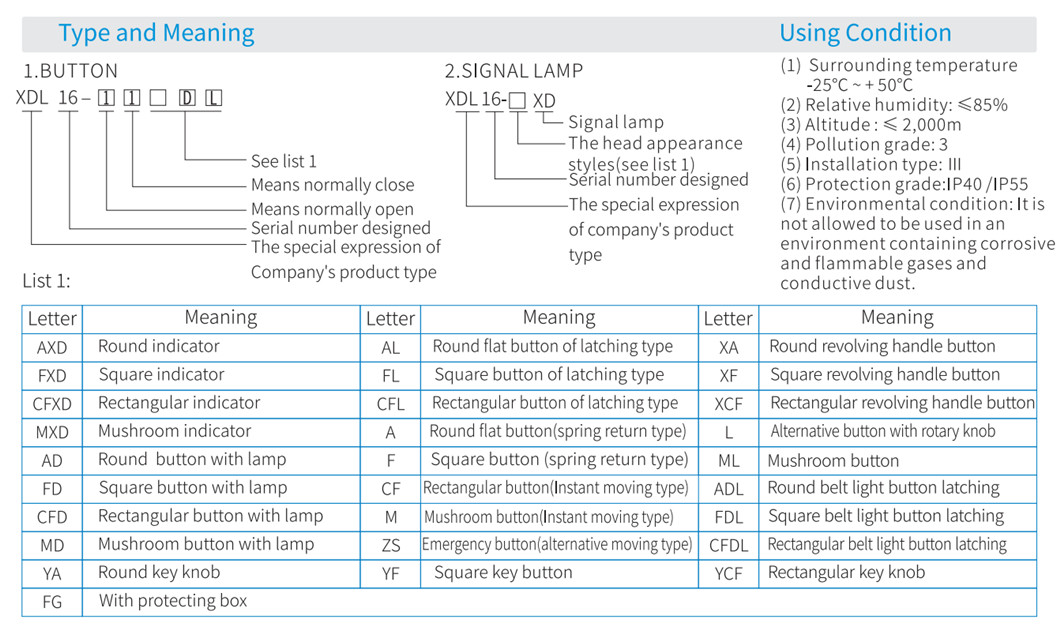

Operating Conditions
- Environment Compliance
- IP40/IP55 RatedPollution Grade 3Installation Category IIIRoHS CompliantCE Certified
- Temperature Range
- -25°C to +50°C
Product Performance
Operational Lifespan
- Mechanical Life: 500,000 cycles (Selector switch)
- Electrical Life: 250,000 cycles (Selector switch)
- Continuous working life: 100,000 hours
