Elevator Position Switch Three-Position Pushbutton
This three-position electronic pushbutton switch is designed for elevator position indication and control. It features a robust construction and reliable operation.
Technical Specifications
Product Overview
Three-Position Elevator Position Switch
The XDL32-CD35 is a professional-grade three-position electronic pushbutton switch engineered for precision control and signal interlocking in elevator systems and industrial circuits. Built with a durable zinc alloy body and high-grade anti-flam plastic, it features silver alloy contacts to ensure exceptional resistance to electrical erosion. The unit is designed for versatility and reliability, supporting AC voltage up to 660V and complying with international safety standards.

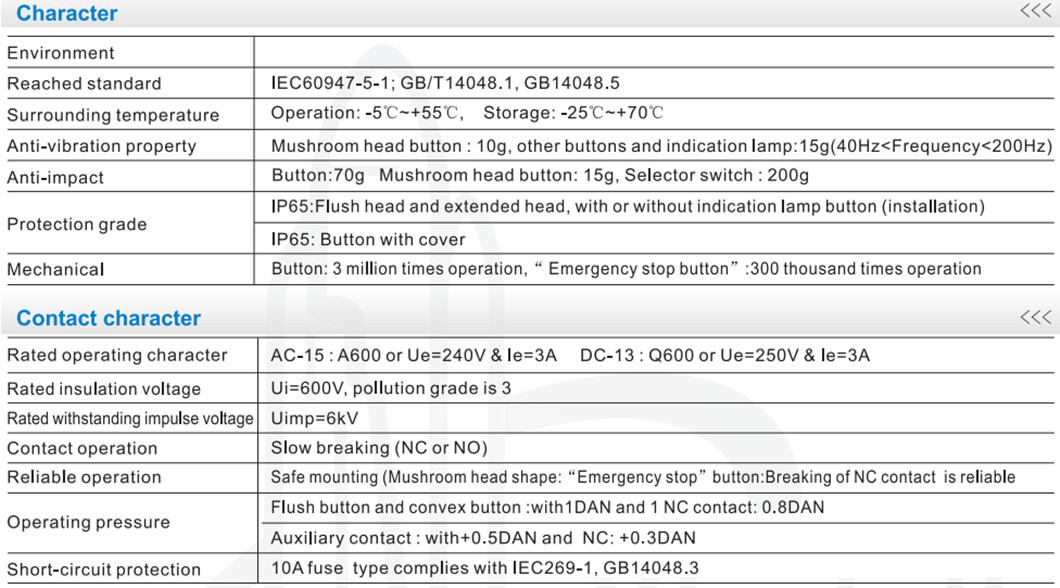

Technical Ratings
Electrical Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Rated Current (Ith)
6 kV
Impulse Voltage (Uimp)
Environmental Performance
Operating Conditions
- Operating: -5°C to +55°C
- Storage: -25°C to +70°C
- Relative Humidity: 35% - 85% RH
- Pollution Grade: 3
Compliance & Protection
Protection Grade
IP40IP54IP65IP66IP67IP68
- Safety Standards
- CEISO 9001RoHSULIEC 60947-5-1GB/T 14048.1

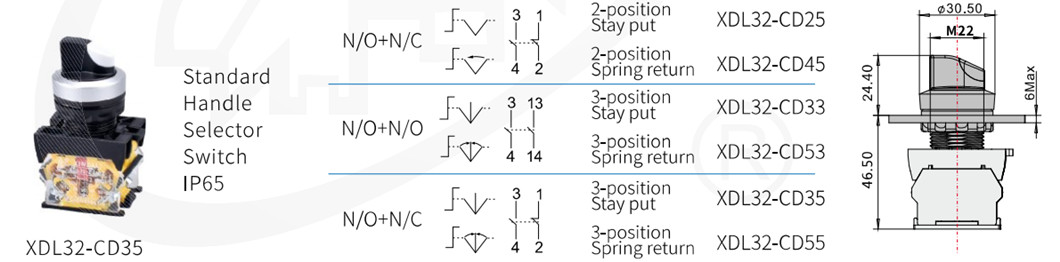

Dimensions and Mounting
Dimensional Details
| Feature | Value |
|---|---|
| Mounting Diameter | M22 |
| Top Diameter | 30.50 mm |
| Max Panel Thickness | 6 mm |
| Height above surface | 24.40 mm |
| Overall Height | 46.50 mm |
