Elevator Position Indicator Pushbutton Switch
This 2-position pushbutton switch indicates elevator position. It is suitable for use in control cabinets and communication networks.
Technical Specifications
Product Overview
Professional Elevator Position Indicator Switch

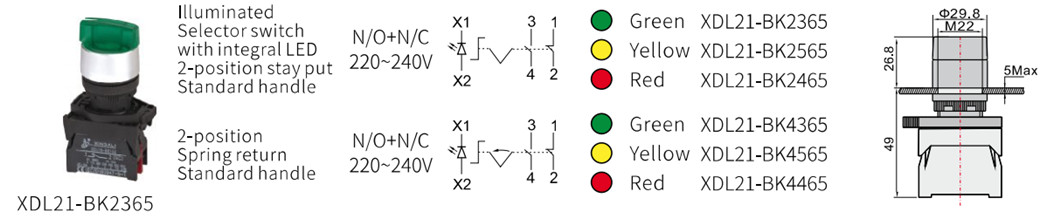

The XDL21-BK2365 is a high-performance 2-position selector switch designed for elevator position indication and industrial control applications. Engineered for reliability in demanding environments, this unit features a durable zinc alloy and anti-flame plastic construction with silver alloy contacts to minimize electrical erosion. It is fully certified to international safety standards, making it an ideal choice for control circuits in distribution cabinets, power stations, and communication networks.
Key Features
- Certifications
- CEISO 9001ROHSUL
Technical Parameters
Rated Insulation Voltage
600 V
AC Voltage
Operating Characteristics
| Metric | Button Value | Selector Switch Value |
|---|---|---|
| Mechanical Life (Cycles) | 1,000,000 | 500,000 |
| Electrical Life (Cycles) | 5,000,000 | 250,000 |
Electrical Integrity
- Insulation resistance: ≥50MΩ
- Contact resistance: ≤25mΩ
- Voltage wave: ±20%
- Brightness: 60cd/m2
- Conventional Heating Current
- 10 A
Physical Dimensions
Mounting & Physical Specs
- Mounting size: M22
- Diameter: 29.8mm
- Height: 26.8mm
- Max panel thickness: 5mm
IP Rating
IP65
