Elevator Key Selector Switch 2-Position
This 2-position key selector switch is designed for elevator control panels. It provides a secure and reliable method for enabling or disabling equipment.
Technical Specifications
Overview
Elevator Key Selector Switch

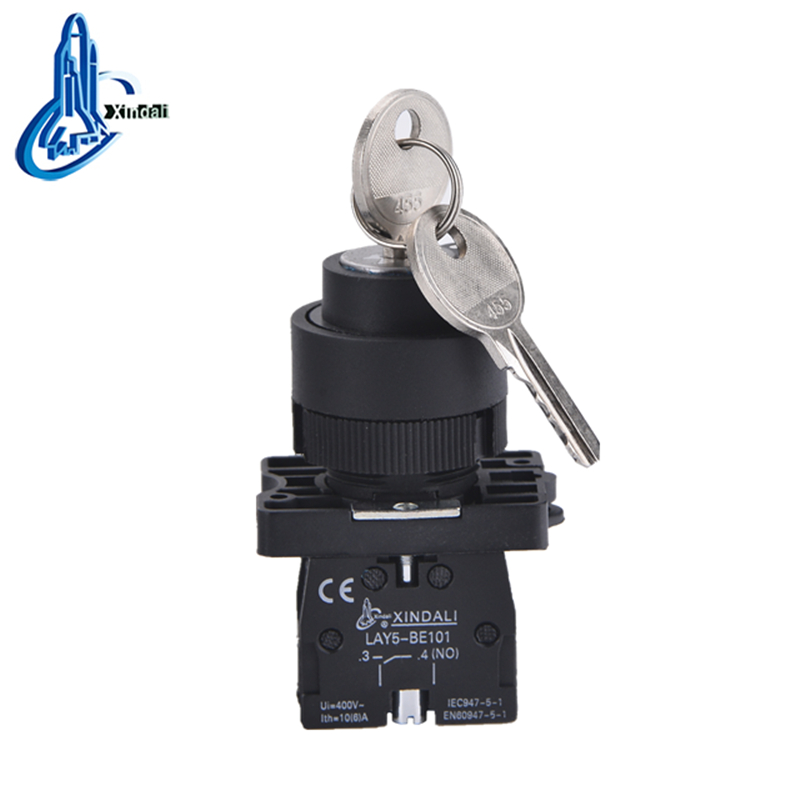

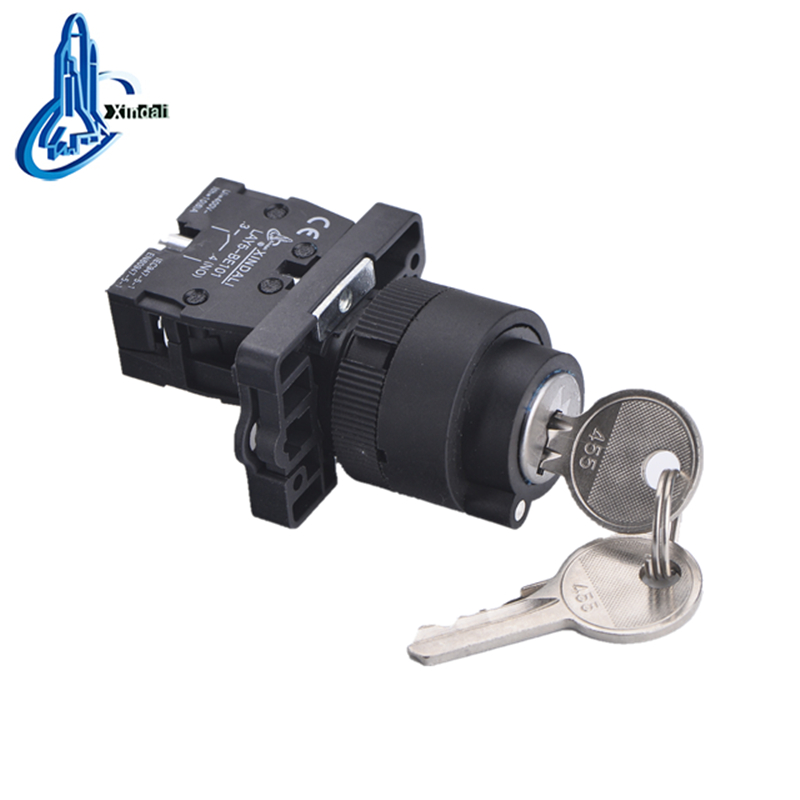

The LAY5-EG21 is a professional-grade 2-position key-operated selector switch designed for secure access and control in elevator panels and industrial electrical systems. Featuring a robust construction of zinc alloy and high-grade anti-flam plastic, it ensures durability and reliability in demanding environments. The switch utilizes special silver alloy contacts to minimize electrical erosion, providing consistent performance for critical signal and interlocking applications.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
- Voltage Wave Tolerance
- ±20%
Performance Metrics
Mechanical Life
500,000 cycles
Selector Switch Cycles
Electrical Life
250,000 cycles
Selector Switch Cycles
Design & Construction
- Switch Positions
- 2
- Mounting Diameter
- 22mm
- Materials
- Zinc AlloyAnti-flam PlasticSilver Alloy Contacts
Compliance
Certifications & Standards
CEISO 9001RoHSULIEC 60947-5-1
