Electrostatic Discharge Tester
This electrostatic discharge tester safely eliminates static electricity buildup on personnel in hazardous areas. It uses conductive plastic to extend discharge time and prevent sparks.
Technical Specifications
Product Overview
Industrial Electrostatic Discharge Eliminator

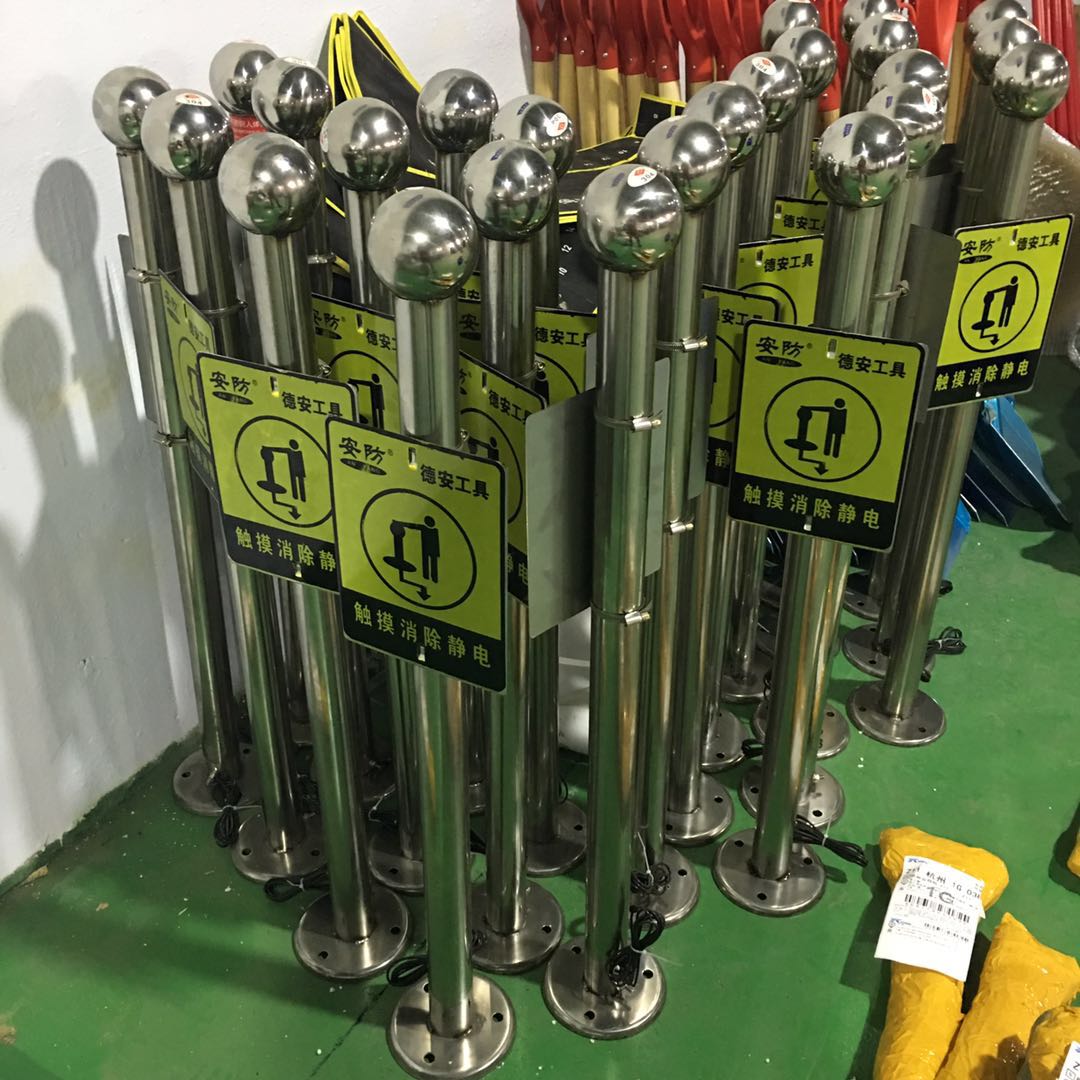

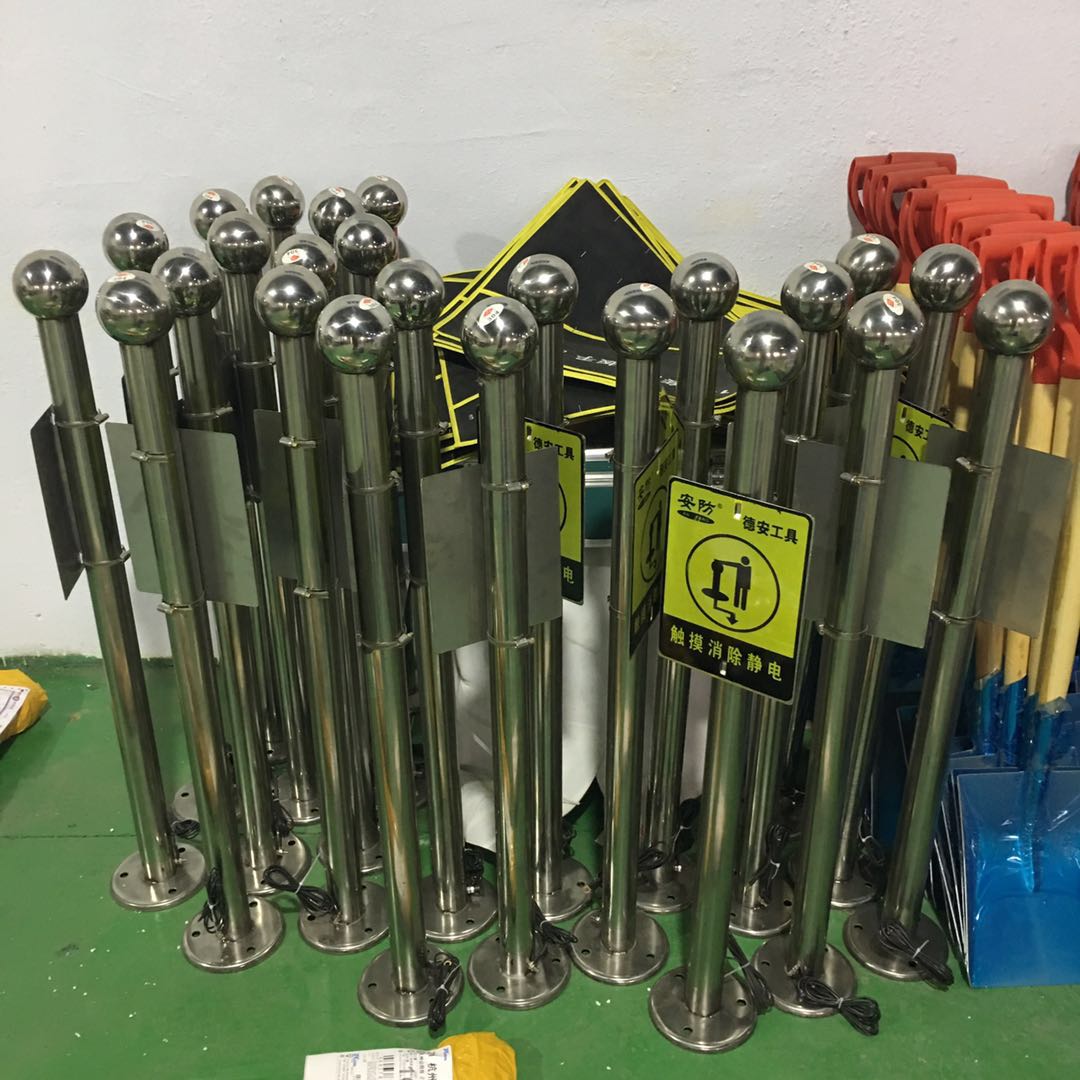

This human body electrostatic eliminator is designed specifically for hazardous environments, such as the petrochemical industry, where static electricity poses a significant fire or explosion risk. Utilizing advanced conductive plastic and a durable stainless steel construction, it safely discharges accumulated static energy from the human body upon contact. The system features an explosion-proof touch ball and moisture-proof epoxy resin casting, ensuring reliable performance and safety in demanding industrial settings.
Performance & Safety
Key Performance Metrics
55 Ω
Grounding Resistance
20 KV
Static Voltage Capacity
- Safety Features
- Explosion-proofAnticorrosiveWaterproofMoisture-proofUltra-low power design
Mechanical Specifications
Physical Dimensions
| Component | Specification |
|---|---|
| Product Height | 1.0 m |
| Touch Ball Diameter | 90 mm |
| Stud Diameter | 51 mm |
| Wall Thickness | 1.5 mm |
| Flange Diameter | 150 mm / 200 mm |
Construction Details
- Rod Material: SS304 Stainless Steel
- Ground Cable: 2m-5m Linear PU Cable
Compliance & Standards
Compliance Standards
- GB3836.1-2010 (Explosive environment - General requirements)
- GB3836.4-2010 (Explosive environment - Intrinsically safe 'i')
- GB5074-2002 (Petroleum library design specification)
- SH3097-2000 (Petrochemical electrostatic grounding design specification)
