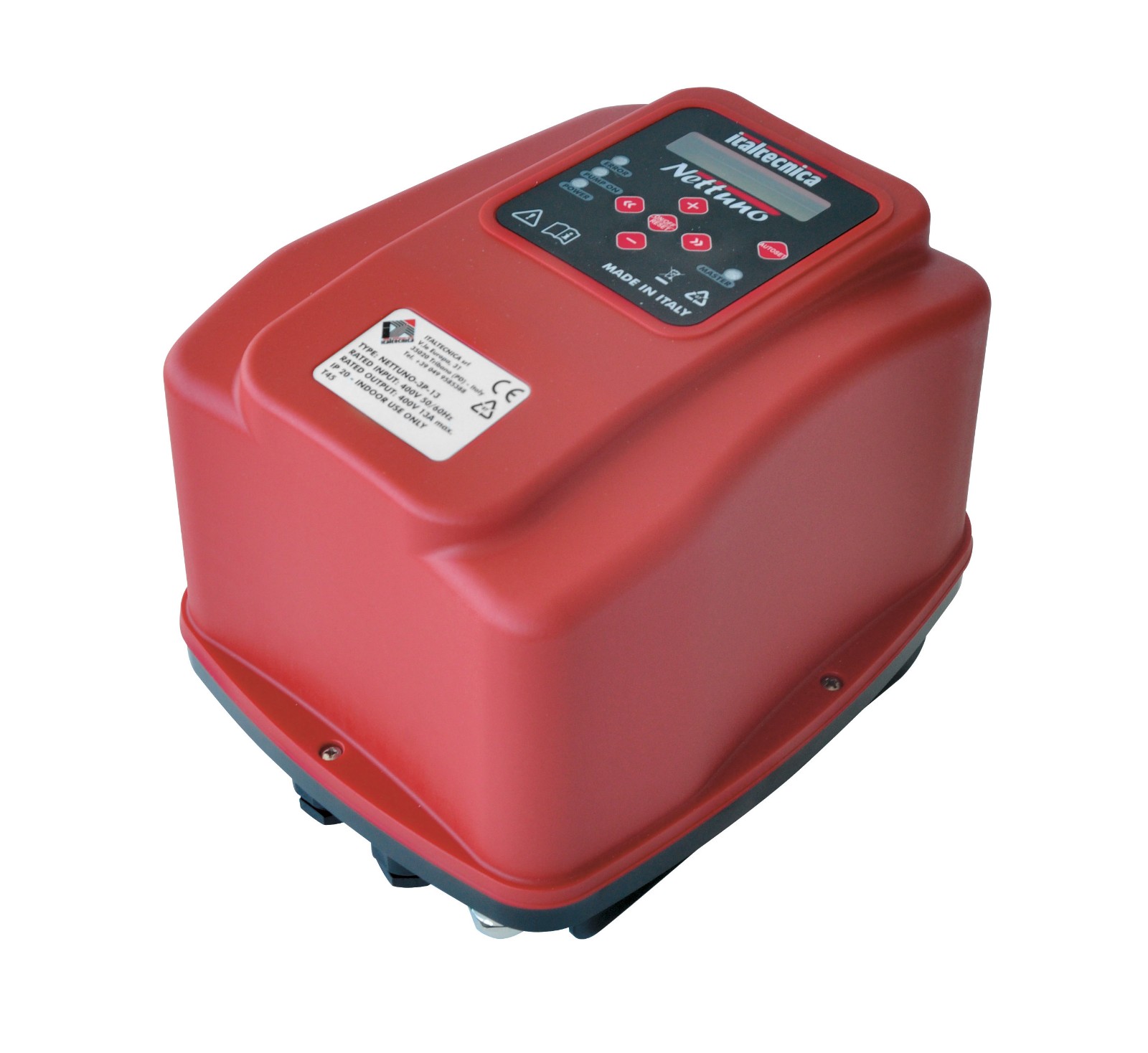

Electronic Pump Inverter with Motor Control
This electronic device uses inverter-based technology to control electric pump functions. It modulates the motor's input current frequency to adjust the speed according to the system's water demand.
Technical Specifications
Overview
Intelligent Pump Control
This electronic inverter utilizes advanced frequency modulation technology to control traditional electric pumps, including surface, vertical, and submersible models. By adjusting motor speed according to real-time system demand, it ensures constant pressure and significant energy savings. The device features a soft-start function to prevent water hammer, built-in protection against dry running, and leak monitoring for reliable, long-term operation.
Key Features
- Operational Capabilities
- Constant Pressure ControlSoft-Start/StopDry Running ProtectionAutomatic ResetLeakage MonitoringAnti-Seize Function
Technical Specifications
Electrical Ratings
400 V
Rated Input Voltage
50 Hz
Frequency
13 A
Max Output Current

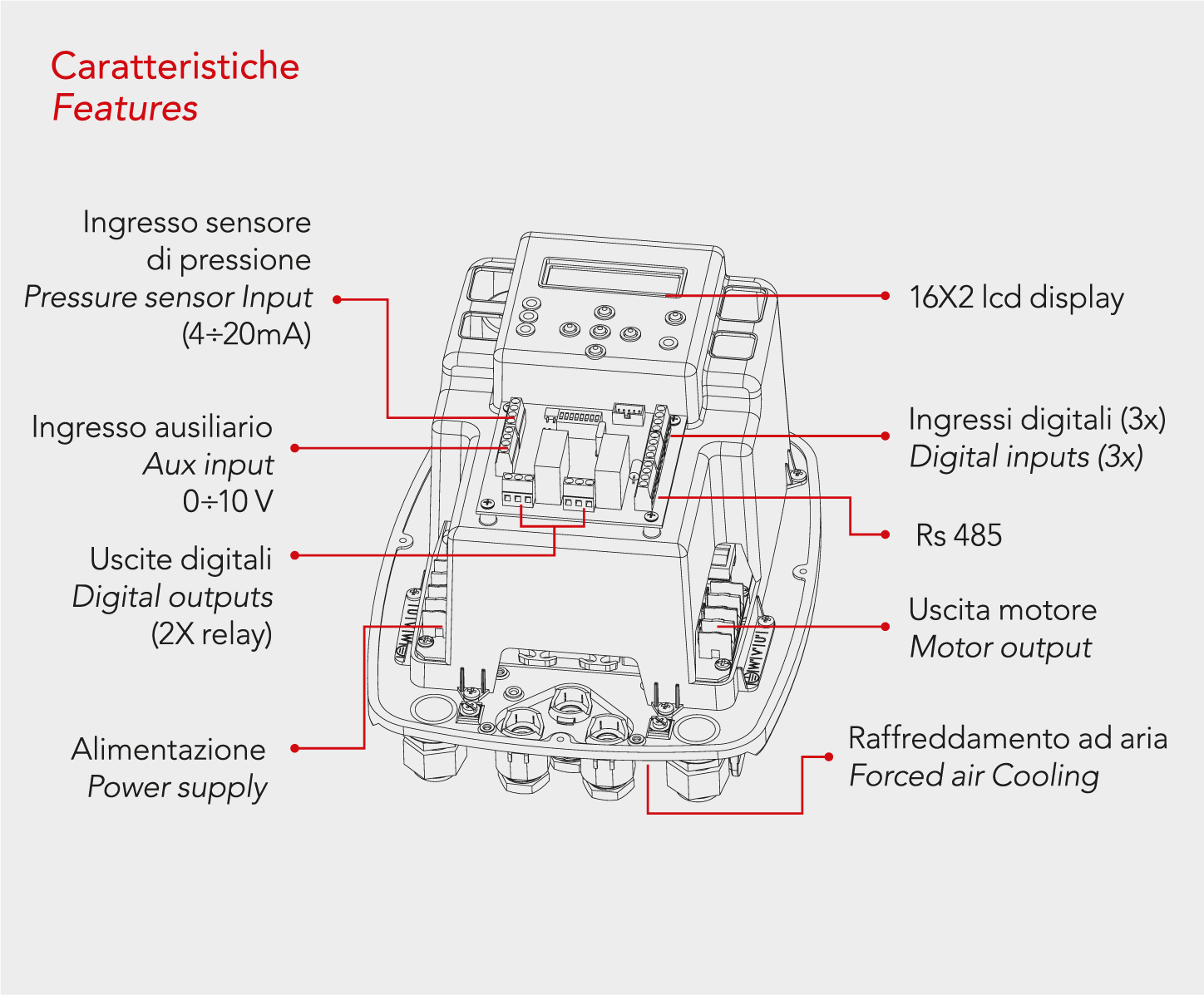

System Configuration
- Supports up to 8 pumps in booster sets
- 4-20mA analog inputs for pressure sensors
- RS485 communication port
- Forced air cooling system
- 16x2 LCD display interface

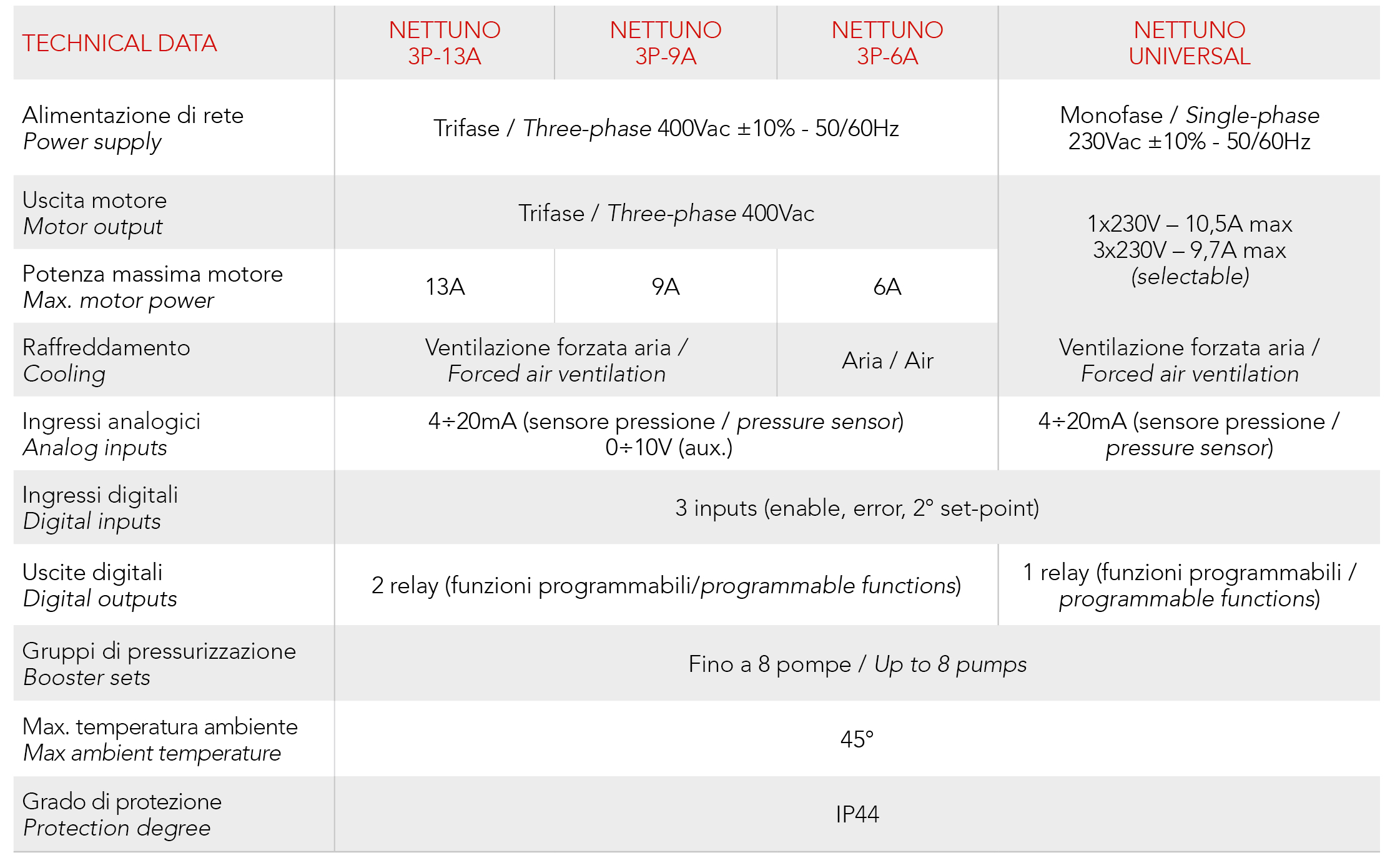

Model Performance Data
| Model | Power Supply | Max Motor Current | Cooling |
|---|---|---|---|
| 3P-13A | 400Vac | 13 | Forced Air |
| 3P-9A | 400Vac | 9 | Forced Air |
| 3P-6A | 400Vac | 6 | Air |

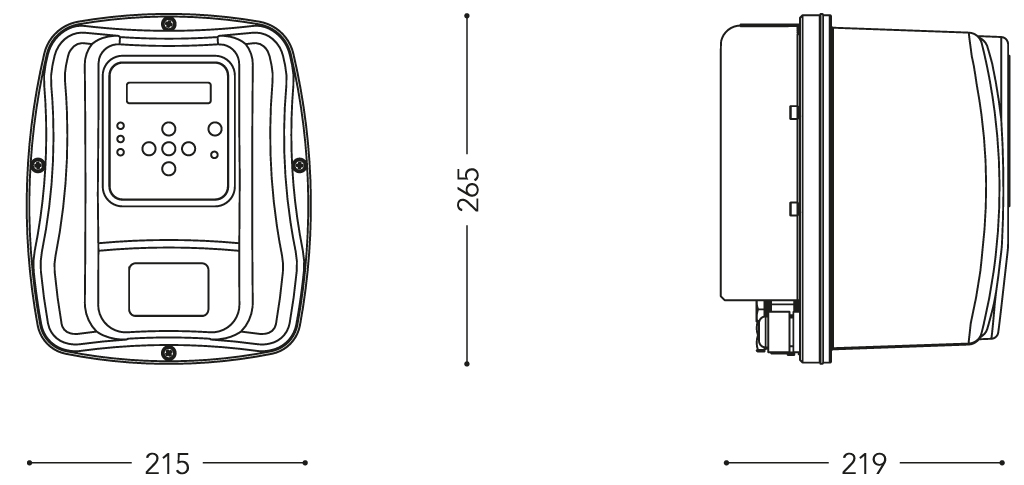

Physical Dimensions
Physical Size
265 mm
Height
215 mm
Width
219 mm
Depth
Environment & Mounting
- Indoor use only
- IP20 protection rating
- Pipeline installation compatible
- Wall mounting compatible
- Max ambient temperature: 45°C
