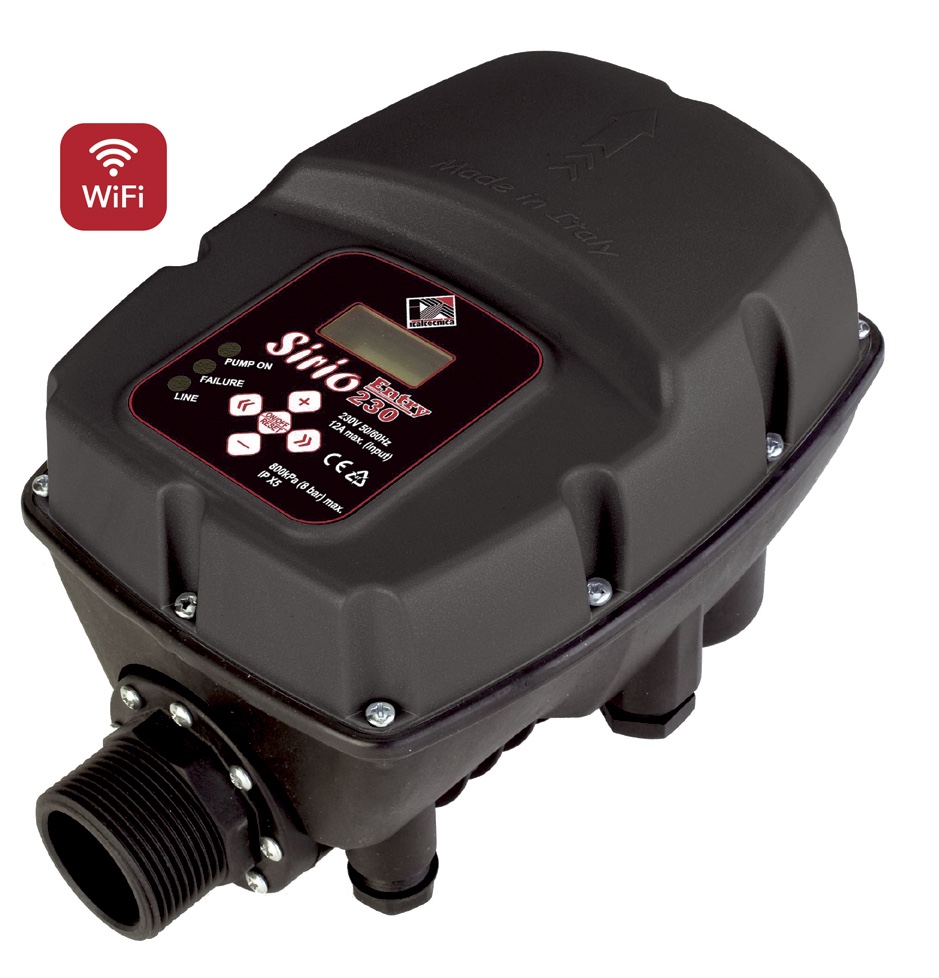

Electronic Pump Controller with Protection Features
This electronic device is designed to control and protect water pumps. It manages the start and stop of the pump, ensuring constant pressure and flow rate while also protecting against dry running and overcurrent.
Technical Specifications
Product Overview
Smart Pump Control
This advanced electronic controller manages electric pump operations by modulating motor speed based on real-time water demand, ensuring constant system pressure. By regulating soft starts and stops, it effectively eliminates water hammering and avoids high inrush starting currents. The unit is designed to safeguard infrastructure with comprehensive protection against dry running, leaks, over-pressure, and electrical abnormalities.
Technical Performance
Operational Metrics
230 V
Voltage
12 A
Max Current
8 bar
Max Pressure
IP Protection
IP X5
- Frequency Range
- 50/60 Hz
System Compatibility
Control & Connectivity
- Wi-Fi smartphone connectivity
- Programmable I/O for Master/Slave configuration
- Multilingual 16-character display
- Adjustable flow sensor sensitivity
- Compatible Pump Types
- SurfaceVerticalSubmersible

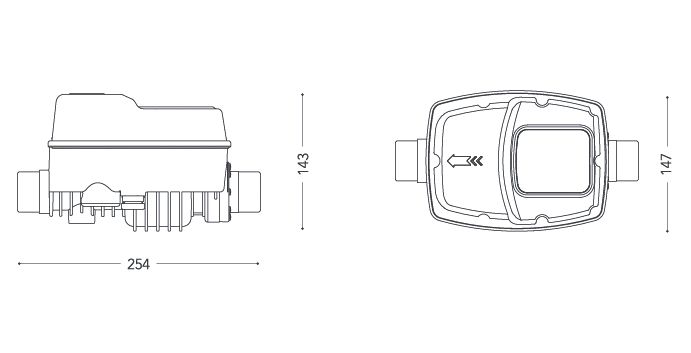

Physical Dimensions
Unit Dimensions
| Dimension | Value |
|---|---|
| Length | 254 |
| Width | 147 |
| Height | 143 |
Safety & Protection
Automated Protections
- Dry running protection with auto-reset
- Leakage detection
- Over-pressure protection
- Over-heating protection
- Rotor blocking detection
- Abnormal power supply monitoring
- Motor over-current control
