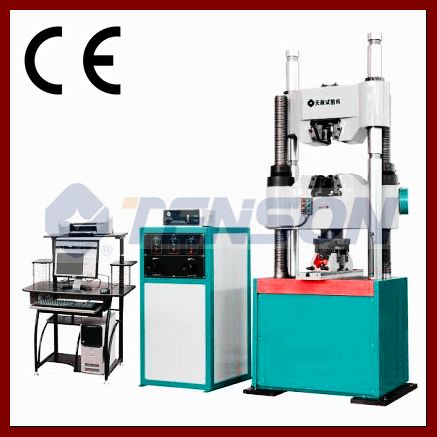

Electro-Hydraulic Servo Universal Testing Machine
This electro-hydraulic servo universal testing machine is designed for tensile, compression, bending, and shearing tests on metals and non-metals. It is used in aviation, aerospace, quality testing, and educational institutions.
Technical Specifications
Overview
Professional Material Testing Solution
The Electro-hydraulic Servo Universal Testing Machine provides precise and automated material testing capabilities for tensile, compression, bending, and shearing applications. Equipped with advanced servo control systems and a high-precision load cell, it ensures reliable data acquisition and analysis. This robust instrument is ideal for research, quality control, and educational purposes across various industrial sectors.
- Certifications
- CE
Performance
Key Performance Metrics
600 KN
Max Test Force
0.5 %
Deformation Accuracy
1 %
Displacement Accuracy
Operating Ranges
| Parameter | Range |
|---|---|
| Stress Rate Control | 1-60 MPa/S |
| Displacement Rate | 0.5-50 mm/min |
| Test Stress Rate | 1-60 N/mm2S |
Mechanical Specs
Testing Capacities
- Tensile space: 800 mm
- Compression space: 700 mm
- Piston travel: 250 mm
- Flat specimen width: 80 mm
- Flat specimen thickness: 0-30 mm
- Power Supply
- 3-phase 4-wire, 380V 50Hz, 2Kw
Physical Attributes
Equipment Dimensions & Weight
| Unit | Dimensions (mm) | Weight (kg) |
|---|---|---|
| Host Machine | 905 x 580 x 2325 | 3000 |
| Control Box | 600 x 600 x 1165 | 200 |
