Electrically Insulated Deep Groove Ball Bearing
This electric insulated bearing utilizes specialized coating technology. The coated outer surface provides strong insulation, preventing electrical erosion and extending the bearing's service life.
Technical Specifications
Product Overview
Advanced Electrical Protection

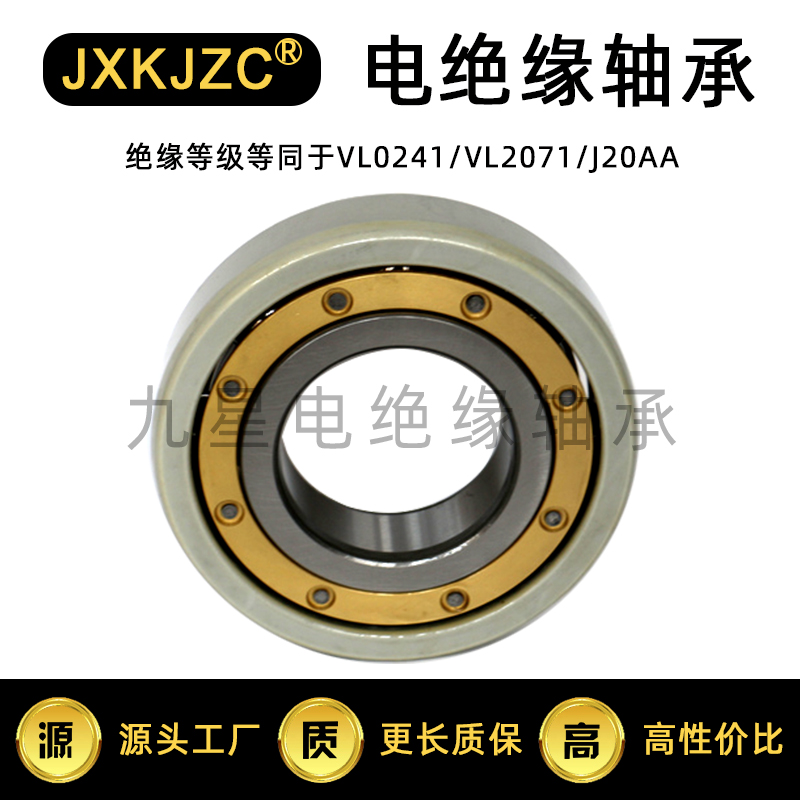

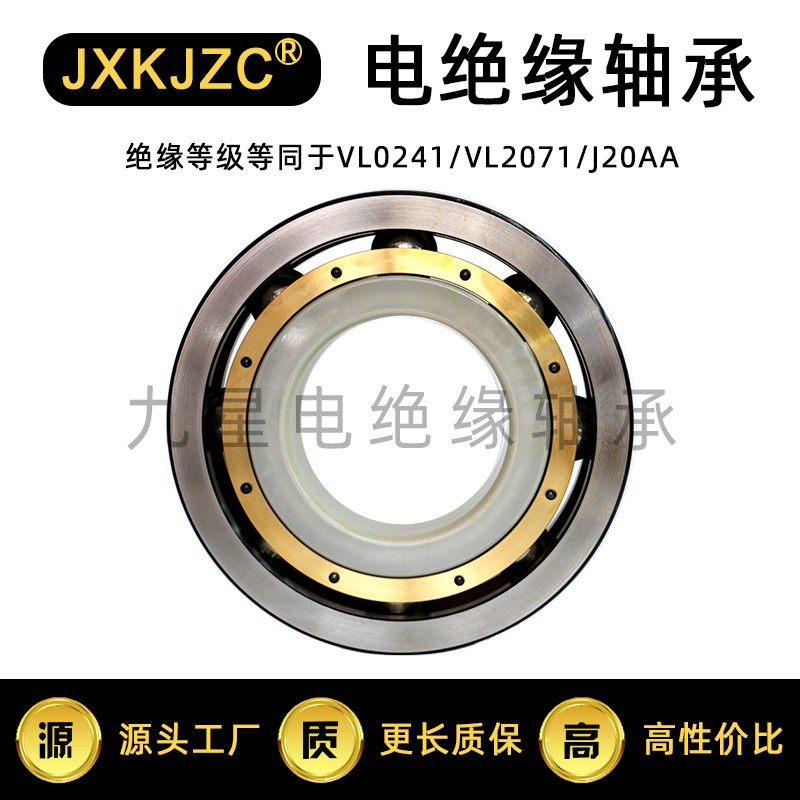

These deep groove ball bearings utilize advanced spraying technology to apply a high-quality aluminum oxide coating to the inner or outer rings. This specialized insulation layer effectively prevents electrical erosion caused by induced currents, thereby protecting the grease, rolling elements, and raceways from damage. Engineered for reliability, these bearings significantly extend operational service life in environments where electrical currents are a concern.
Technical Specifications
- Standard Voltage Capacity
- 1000 V DC
- Custom Voltage Range
- 500V - 3000V DC
- Coating Location
- Inner RingOuter Ring
Applications
Suitable Industries
Power GenerationRailwayMetallurgyPetrochemicalHigh-Voltage Motors
Available Types
Insulated Bearing Varieties
- Deep Groove Ball Insulated
- Angular Contact Ball Insulated
- Self-Aligning Ball Insulated
- Cylindrical Roller Insulated
- Tapered Roller Insulated
Model Ranges
Copper Cage Deep Groove Models
| Series | Range |
|---|---|
| 60 Series | 6003M/C3 - 60/600M/C3 |
| 62 Series | 6203M/C3 - 6260M/C3 |
| 63 Series | 6303M/C3 - 6352M/C3 |
| 64 Series | 6407M/C3 - 6426M/C3 |
