Electrical Power Distribution Connector Box

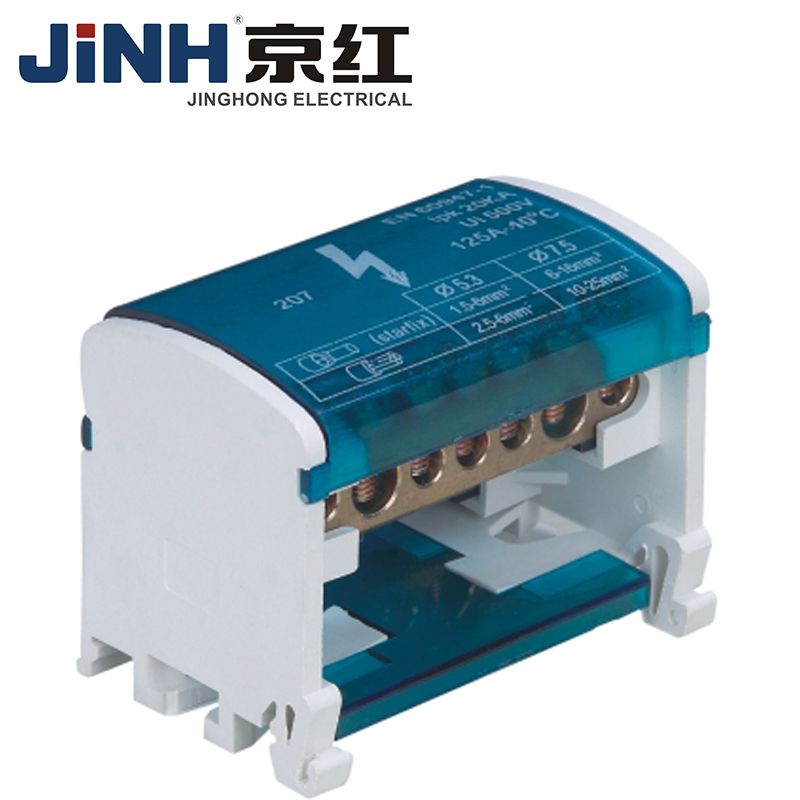

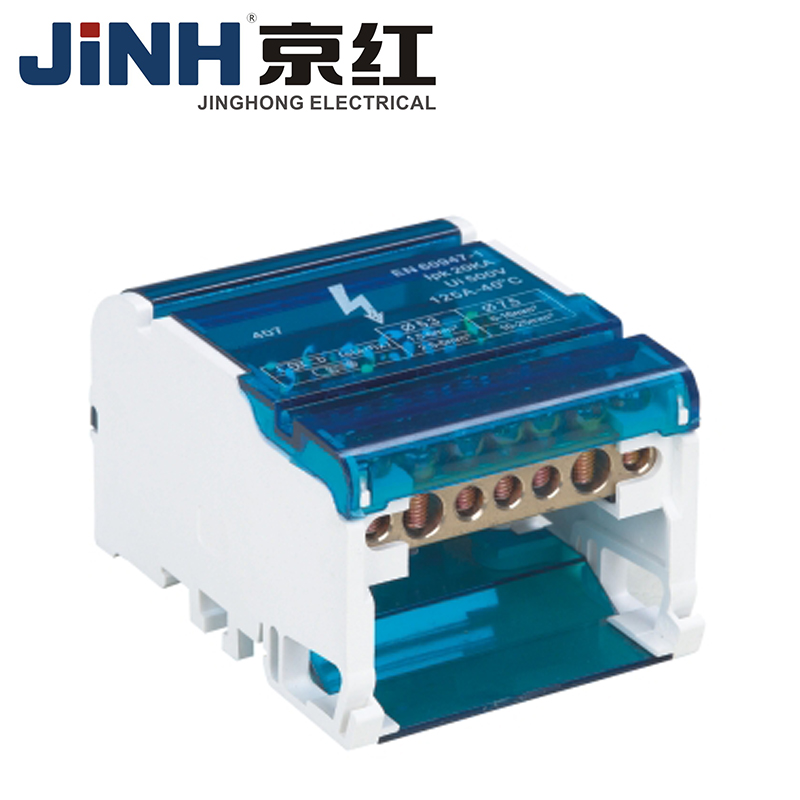

This connector box is designed for electrical power transmission and distribution applications, specifically for contactor connections. It features multiple connection points with copper conductors and a transparent blue cover for easy inspection.
Technical Specifications
Overview
High-Performance Distribution Connector
This professional-grade electrical power distribution connector box is engineered for reliable power transmission in demanding industrial environments. Featuring a robust nylon PA66 casing and high-conductivity copper internal components, it ensures safety and longevity. The design includes a transparent cover for convenient visual inspection and supports versatile wire termination options, making it suitable for complex electrical distribution setups.
Electrical Ratings
Rated Current
125 A
Rated Current
Voltage Ratings
| Type | Value |
|---|---|
| Rated Voltage (Ue) | 600V AC |
| Rated Insulation Voltage (Ui) | 500V |
- Peak Withstand Current
- 20 kA
Technical Specifications
Supported Wire Sizes
- 1.5-6mm²
- 2.5-6mm²
- 6-16mm²
- 10-16mm²
- 10-25mm²
- 10-35mm²
- Model Series
- JH8
- Construction Materials
- Nylon PA66Copper
- Operating Temperature Range
- -40°C to 125°C
Compliance
Standards Compliance
EN 60947-1EN 60947T-S
