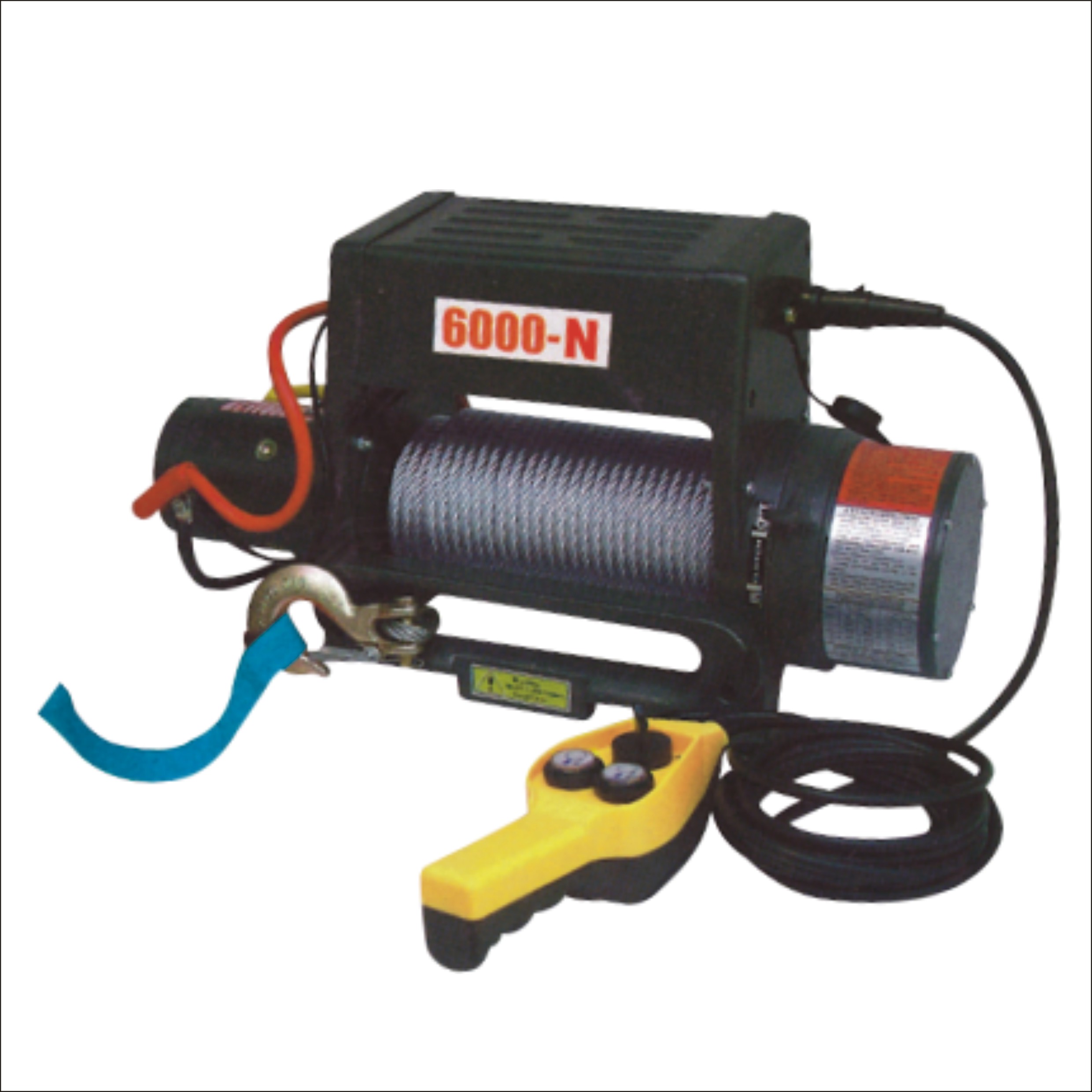

Electric Winch for Vehicle Recovery and Lifting
This electric winch is designed for heavy-duty lifting and pulling applications. It features a durable steel cable, a powerful motor, and a robust housing for reliable performance in demanding environments.
Technical Specifications
Overview
Heavy-Duty Electric Winch
This robust electric winch is engineered for demanding vehicle recovery, lifting, and industrial pulling applications. Equipped with a high-performance series wound motor and a durable steel cable, it provides reliable power in automotive, construction, and marine environments. The system includes a remote control for safe, convenient operation and is built for versatility in various off-road and industrial scenarios.
Performance Metrics
Max Line Pull Rating
6,000 lbs
Max Line Pull
2,722 kg
Max Line Pull
Line Pull Capacity by Layer
| Layer | Line Pull (lbs) | Line Pull (kg) |
|---|---|---|
| 1 | 6,000 | 2,722 |
| 2 | 4,770 | 2,164 |
| 3 | 4,020 | 1,823 |
| 4 | 3,510 | 1,592 |
Technical Specifications
- Motor
- Series Wound 12V DC 4.8 HP (3.6 KW)
- Gear Ratio
- 265:1
- Cable Capacity
- 3/8 in (9.5 mm) x 100 ft (30.5 m)
Physical Dimensions
- Overall Dimensions
- 21.3 in x 6.3 in x 8.6 in (541 mm x 160 mm x 218 mm)
- Mounting Bolt Pattern
- 10.0 in x 4.5 in (254 mm x 114.3 mm)
- Net Weight
- 30.5 kg
Features
Suitable Applications
Vehicle RecoveryLiftingOff-roadIndustrialMarineConstruction
- Included Accessories
- Remote ControlSteel CableHookStrap
