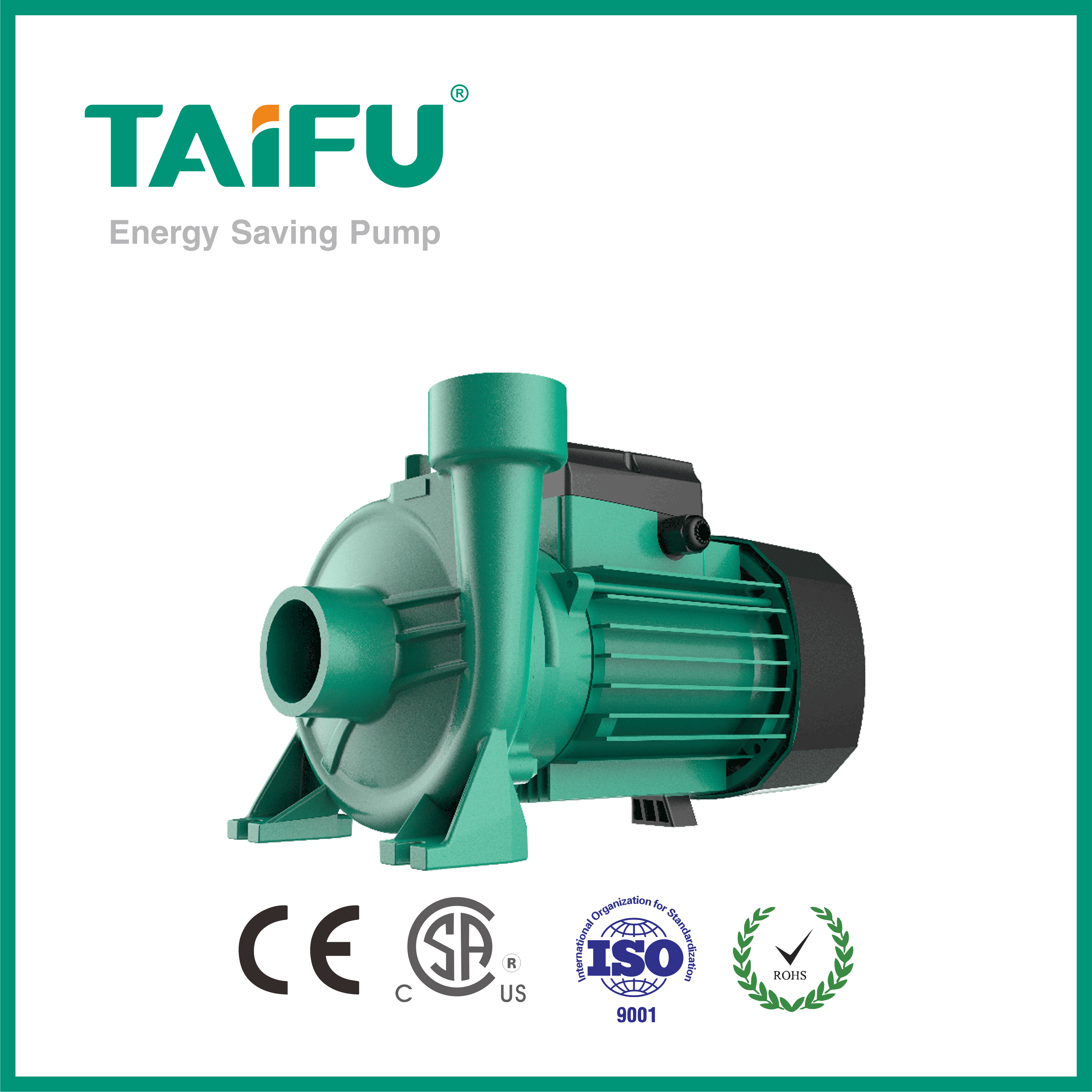

Electric Water Pump for Fluid Circulation
This electric water pump is designed for efficient water transfer in various applications. It features robust construction and certifications including CE, CSA, ISO 9001, and RoHS, ensuring compliance with international standards.
Technical Specifications
Product Overview
High-Efficiency Electric Water Pump
This electric water pump is engineered for superior fluid circulation in demanding residential and commercial environments. Featuring a reinforced motor body with enhanced heat dispersion and a durable, corrosion-resistant design, it ensures reliable performance and longevity. With high-precision components and advanced sealing technology, this pump provides consistent flow rates and optimal head performance across multiple capacity configurations.
Technical Specifications
Motor Features
- Class F copper wire for high thermal resistance up to 155°C
- Reinforced motor body with 20% increased heat-dispersion area
- High-accuracy motor construction for stability
- Mechanical seal life extended by 35% with leakage prevention
- Quality & Compliance
- CECSAISO 9001RoHS
Performance Metrics
Core Operational Metrics
0.37 kW
Minimum Power
2.2 kW
Maximum Power
8 m
Max Suction Height
567 l/min
Max Flow Rate
Model Specifications
| Model | Power (kW) | Inlet/Outlet | Max Flow (l/min) |
|---|---|---|---|
| 1DK-14 | 0.37 | 1" x 1" | 83 |
| 1DK-20 | 0.55 | 1" x 1" | 100 |
| 1.25DK-24 | 0.75 | 1.25" x 1.25" | 150 |
| 1.5DK-20 | 0.75 | 1.5" x 1.5" | 333 |
| 1.5DK-28 | 1.1 | 1.5" x 1.25" | 200 |
| 2DK-20 | 1.1 | 2" x 2" | 450 |
| 2DK-22 | 1.7 | 2" x 2" | 367 |
| 2DK-34 | 2.2 | 2" x 2" | 567 |
Material Construction
Component Materials
- Impeller: Brass
- Pump Body: High strength, electrophoresis treated
- Rotor Shaft: Welded stainless steel
- Fan Cover: Reinforced nylon with anti-strike properties
