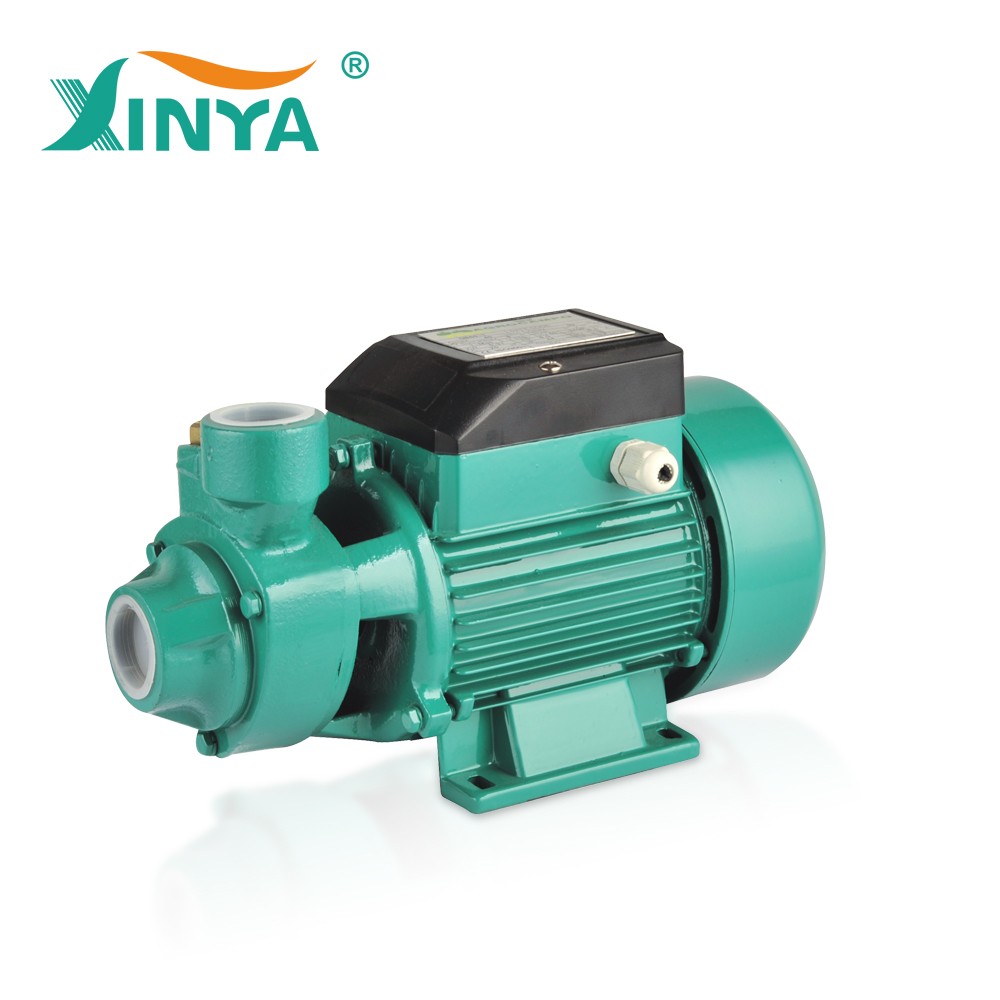

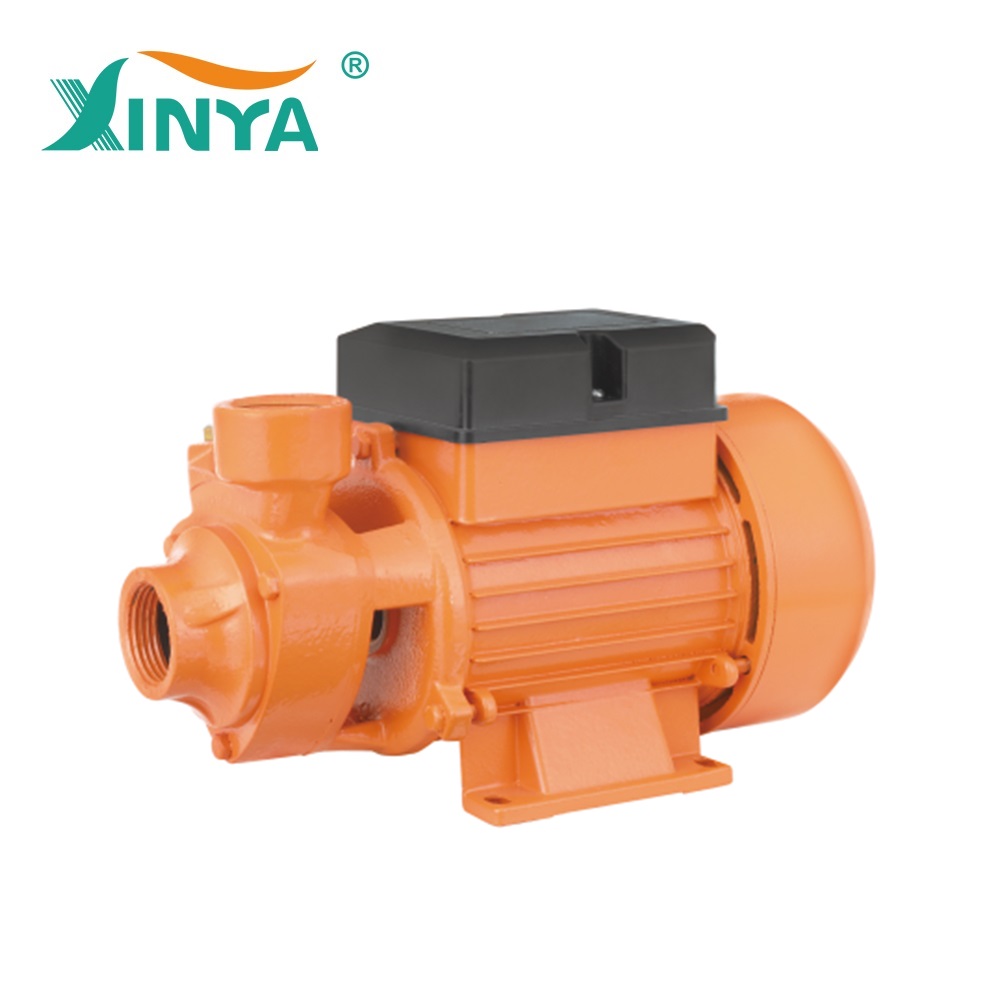

Electric Vortex Clean Water Booster Pump
This electric vortex pump is designed for pumping clean water in domestic and light industrial applications. Its compact size, light weight, and efficient motor make it suitable for boosting water pressure in various settings.
Technical Specifications
Product Overview
Clean Water Efficiency
This vortex electric pump is engineered for reliable performance in clean water applications, including well water supply and domestic water distribution. Featuring an asynchronous motor and a robust vortex impeller, it offers a high-efficiency solution in a compact, lightweight form factor. Its design ensures energy savings and simple installation for various automated water supply systems.
Technical Specifications
Core Performance
35 L/min
Max Flow
32 m
Max Head
2,850 rpm
Speed
Material Composition
| Component | Material |
|---|---|
| Pump Head | Cast iron |
| Pump Body | Aluminum |
| Impeller | Copper |
Design Features
- Closed impeller structure
- Single impeller quantity
- Single suction design
- Horizontal shaft position
- Power & Voltage
- 220V/50HZ110V/60HZElectric drive
Certification & Compliance
Compliance Standards
CEISO 9001RoHSGS
