Electric Vehicle DC Charging Cable

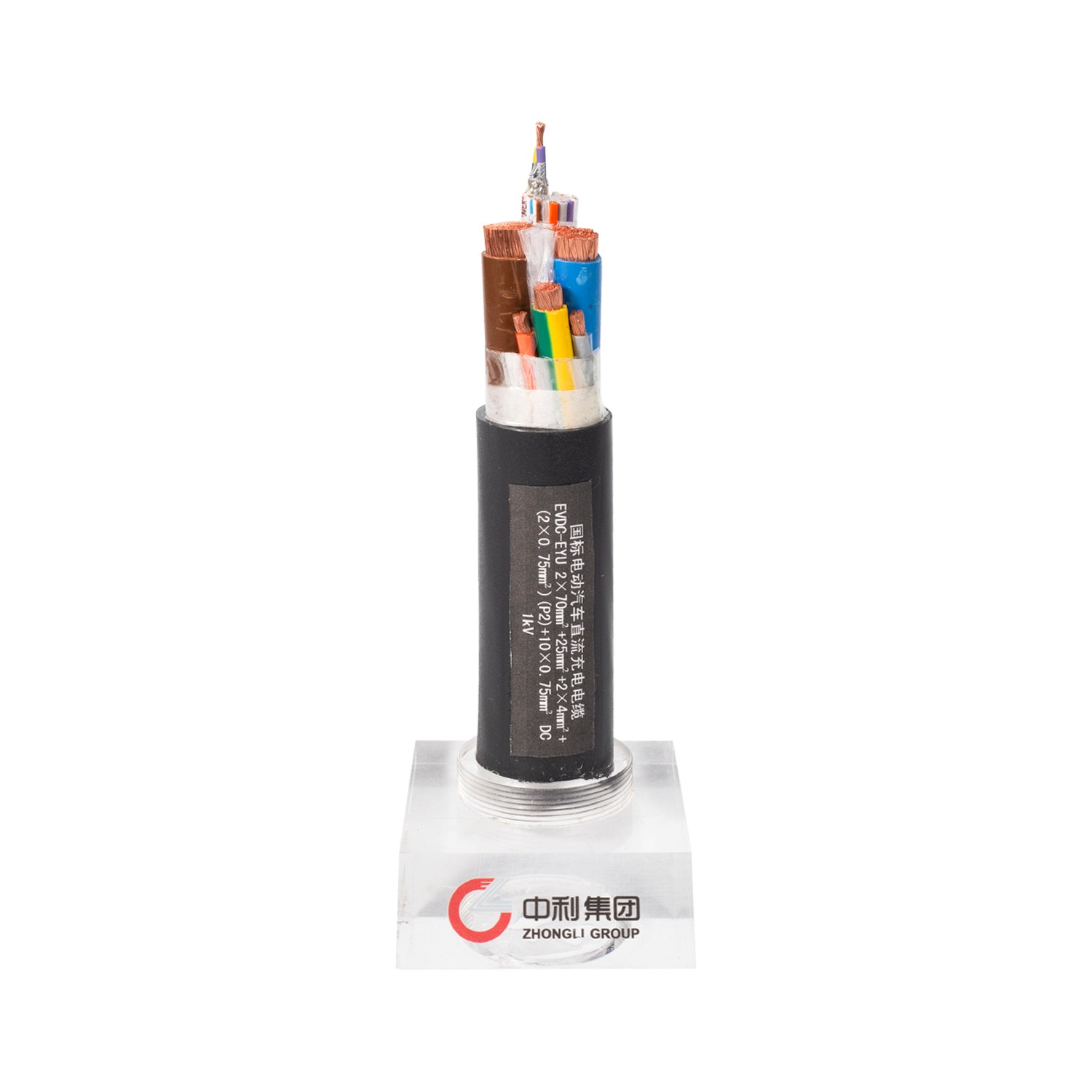

This is a DC charging cable designed for electric vehicles. It features a multi-core construction with various conductors and a durable outer jacket.
Technical Specifications
Product Overview
High-Performance DC Charging Cable
This professional-grade DC charging cable is engineered specifically for electric vehicle infrastructure, ensuring reliable and efficient power transmission. Built with a robust multi-core construction, the cable supports complex power and control requirements for modern charging stations. Its 1kV rating and durable insulation make it suitable for demanding, high-voltage charging environments.
Technical Specifications
- Voltage Rating
- 1 kV
- Model Identifier
- EVDC-EYU
Construction Details
Conductor Configuration
| Conductor Type | Quantity & Size |
|---|---|
| Main Power | 2 x 70mm² |
| Main Power | 1 x 25mm² |
| Power/Aux | 2 x 4mm² |
| Control (P2) | 2 x 0.75mm² |
| DC Control | 10 x 0.75mm² |
Features
- Primary Application
- Electric Vehicle ChargingDC Fast ChargingPower Transmission
