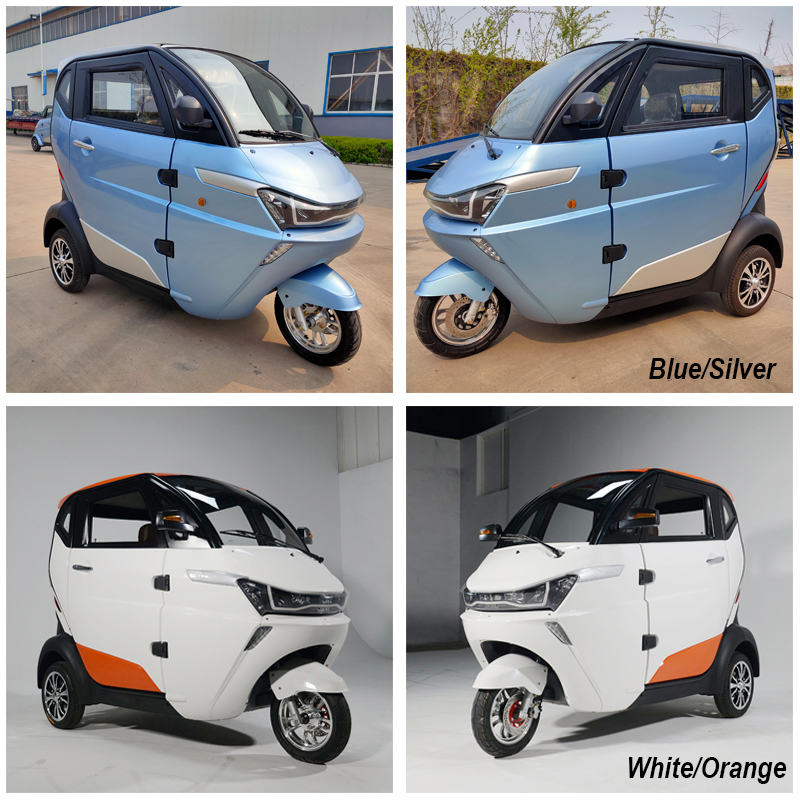

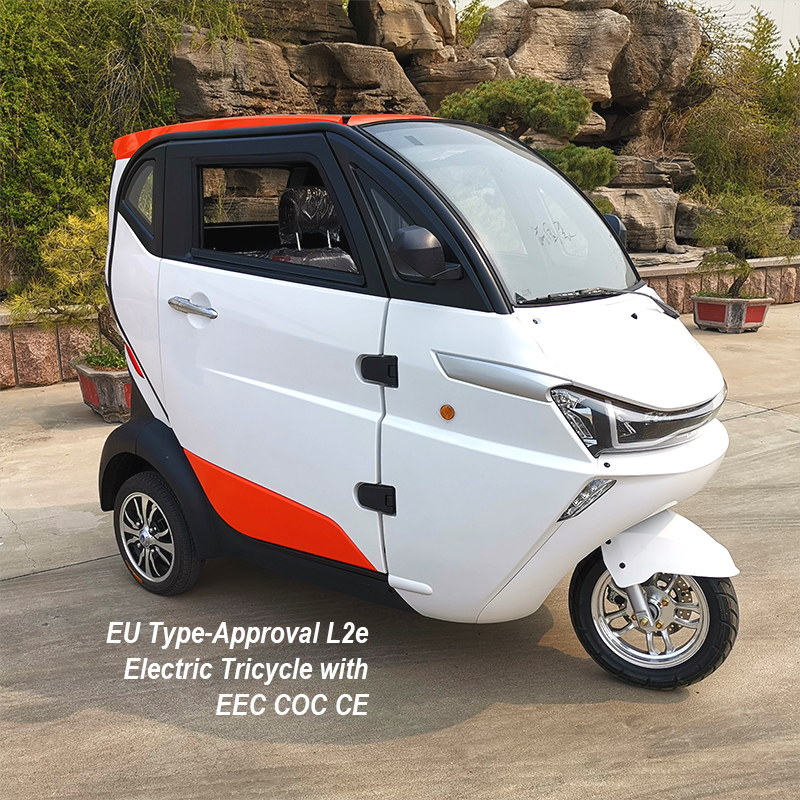

Electric Three-Wheel Passenger Vehicle
This electric passenger vehicle features a three-wheel design for enhanced maneuverability. Compliant with EEC, COC, and CE standards, it ensures safety and quality for urban commuting and short trips.
Technical Specifications
Overview
Efficient Urban Mobility
This electric three-wheel passenger vehicle is designed for efficient daily commutes and urban transport. It features a compact footprint for superior maneuverability in congested city streets while providing a fully enclosed cabin for all-weather protection. With multiple battery options and a smart charging system, it offers a sustainable and economical alternative for short-distance travel.
Key Performance Metrics
35 km/h
Max Speed
100 km
Max Range
3 Persons
Max Capacity
Technical Dimensions
Physical Dimensions
| Dimension | Measurement (mm) |
|---|---|
| Length | 2,160 |
| Width | 1,150 |
| Height | 1,680 |
Powertrain & Battery
Motor Configuration
- Standard 1500W Motor
- Optional 3000W Motor (includes 135/70R12 tyres)
LiFePO4 Battery Options
- 70Ah with on-board smart charger
- 80Ah with on-board smart charger
- 100Ah with on-board fast charger
- Charging Efficiency
- 6 hours via domestic socket (2-3 hours with fast charger)
Chassis & Safety
Tyre Specifications
| Position | Size |
|---|---|
| Front Tyre | 120/70-12 |
| Rear Tyre | 125/65-12 |
- Braking System
- Hydraulic Brake: Front Disc / Rear Disc
- Suspension Type
- Front Independent / Rear Integral axle
Compliance & Logistics
- Certifications
- EECCoCCEISO Quality ManagementEU Whole-Vehicle Type-Approval
- Logistics Advantage
- Available as non-assembled kits to reduce customs duty and transport costs.
