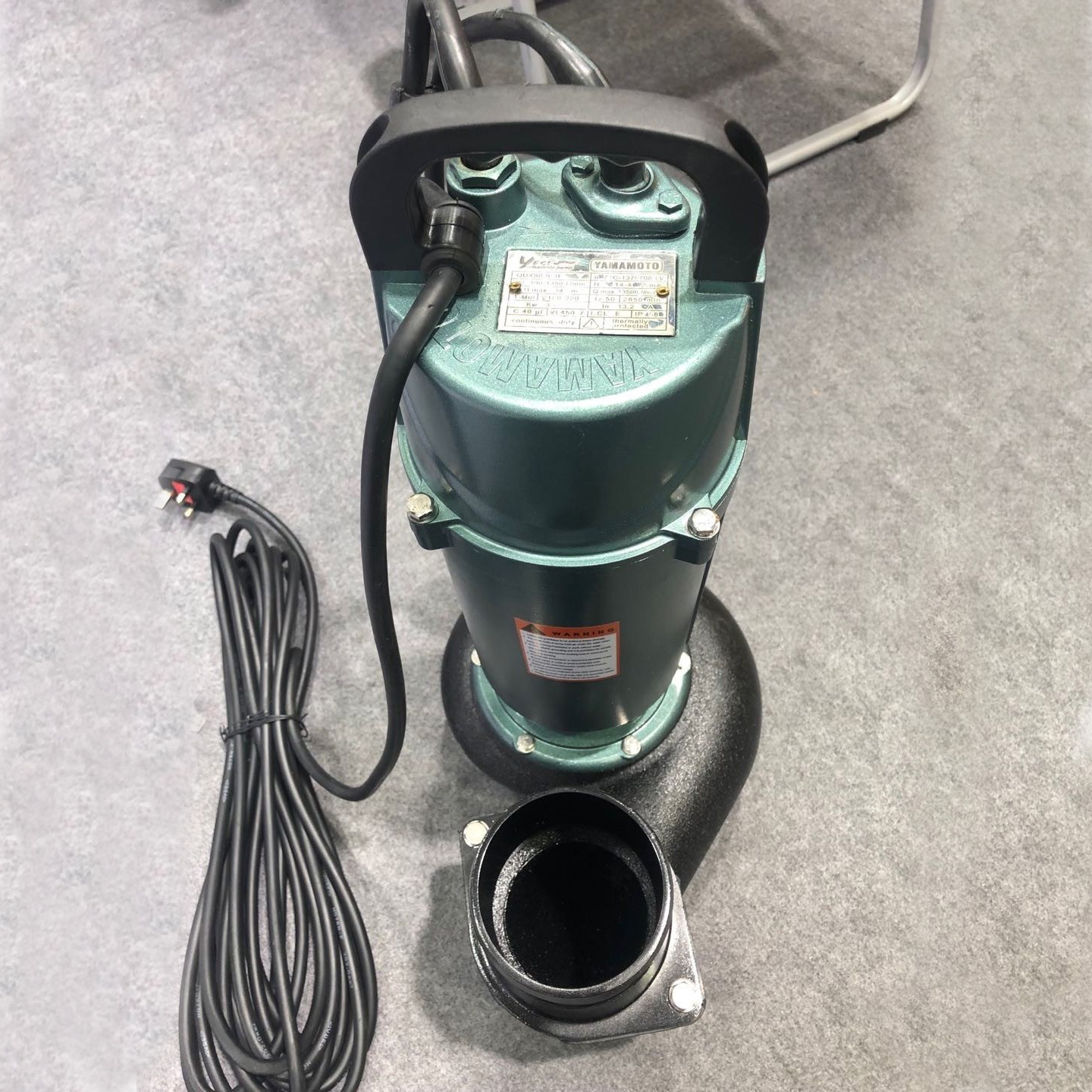

Electric Submersible Water Pump
This submersible pump is designed for drainage and irrigation purposes. It is engineered for efficient water removal and transfer, featuring a robust construction for durability in demanding environments.
Technical Specifications
Product Overview
High-Performance Submersible Pumping Solution
Engineered for versatility in irrigation and drainage tasks, this high-performance submersible pump features a 100% copper motor and stainless steel shaft for long-term reliability. With a wide voltage compatibility range and thermally protected motor, it ensures safe, efficient operation across diverse environments. Its robust construction, including high-grade bearings and an electrophoresis-processed head, makes it an ideal choice for agricultural and construction water management.
Technical Specifications
- Power Rating
- 3 kW
- Operating Voltage
- 180-220V
- Current
- 13.2 A
- Max Flow Rate
- 1350 L/min
- Maximum Head
- 14 m
Construction & Features
Available Port Sizes
- 1 Inch
- 2 Inch
- 3 Inch
- 4 Inch
Durability Components
| Component | Specification |
|---|---|
| Bearing | C&U Bearing |
| Cable | 10M Rubber Wire |
| Duty Cycle | Continuous |
- Product Highlights
- 100% Copper MotorStainless Steel ShaftThermally ProtectedContinuous DutyElectrophoresis Process
