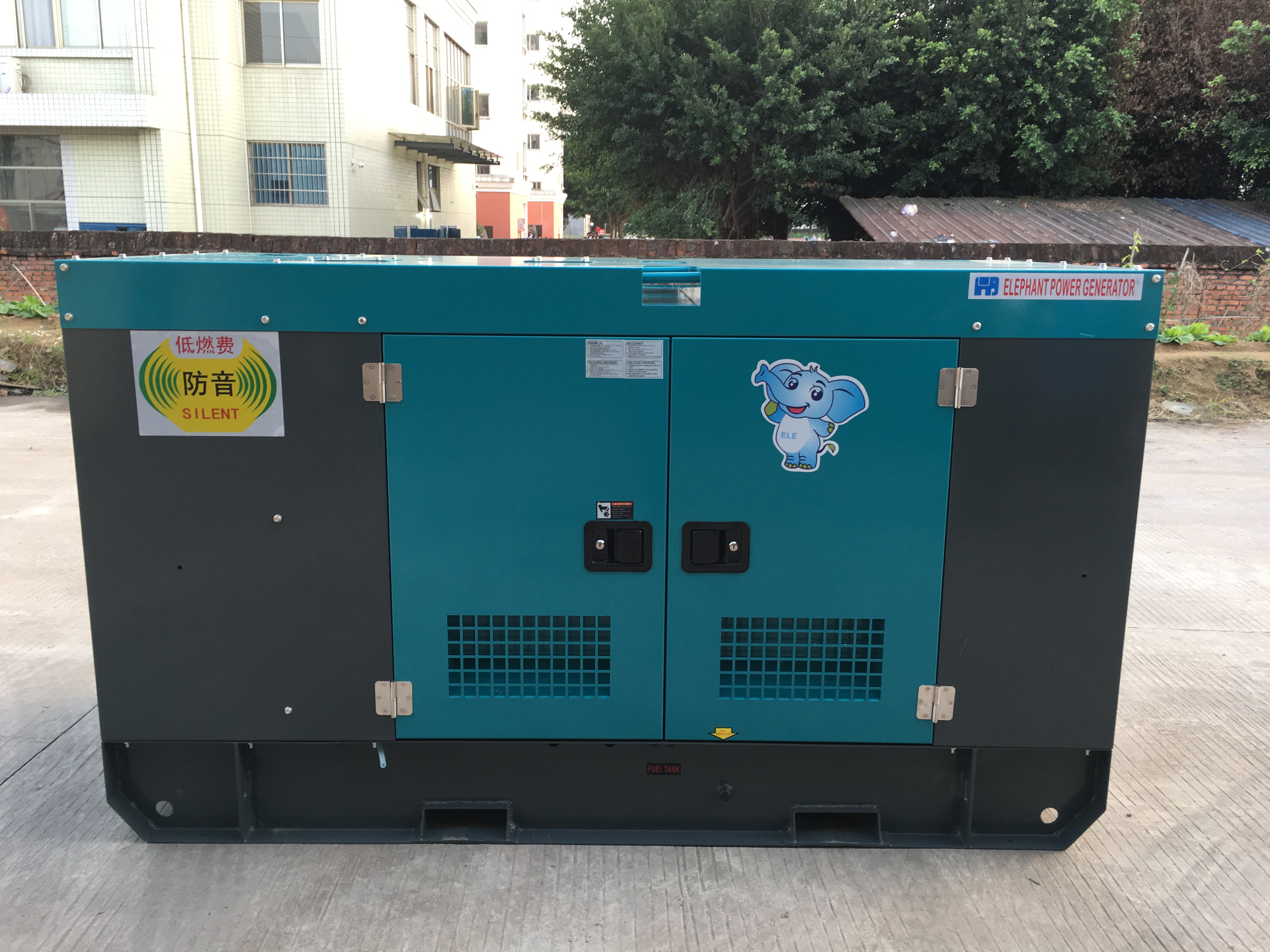

Electric Start Diesel Power Generator
This electric start diesel generator provides reliable power for various applications. It features a durable enclosure for noise reduction and weather protection.
Technical Specifications
Product Overview
Reliable Diesel Power Generation
This electric start diesel generator is designed for versatility, offering both open and silent configurations suitable for diverse operational environments. Built for durability and efficiency, it features a robust engine, brushless alternator, and advanced control systems to ensure stable power delivery. With integrated safety features like emergency stops and anti-vibration technology, it provides a dependable solution for primary or backup power needs.
Technical Specifications
Performance Metrics
24 kW
Prime Power (50Hz)
26 kW
Standby Power (50Hz)
1,500 rpm
Operating Speed (50Hz)
0.8
Power Factor
Generator Configuration
| Feature | 50Hz Specification | 60Hz Specification |
|---|---|---|
| Prime Power | 30kVA/24kW | 33kVA/24kW |
| Standby Power | 33kVA/26kW | 36kVA/29kW |
| Speed | 1500rpm/min | 1800rpm/min |
Electrical System
- Voltage: 110V-440V
- Phase: 3 phase, 4 wires
- Power Factor: 0.8 lagged
Features & Construction
Configuration Options
Open TypeSilent TypeTrailer Mounted
- Key Features
- Brushless AlternatorAuto Control PanelCopper RadiatorAnti-vibration Pads8-Hour Fuel TankEmergency Stop Button
Warranty & Support
Warranty Coverage
| Usage Type | Duration |
|---|---|
| Prime Usage | 1000 hours or 12 months |
| Standby Usage | 500 hours or 24 months |
