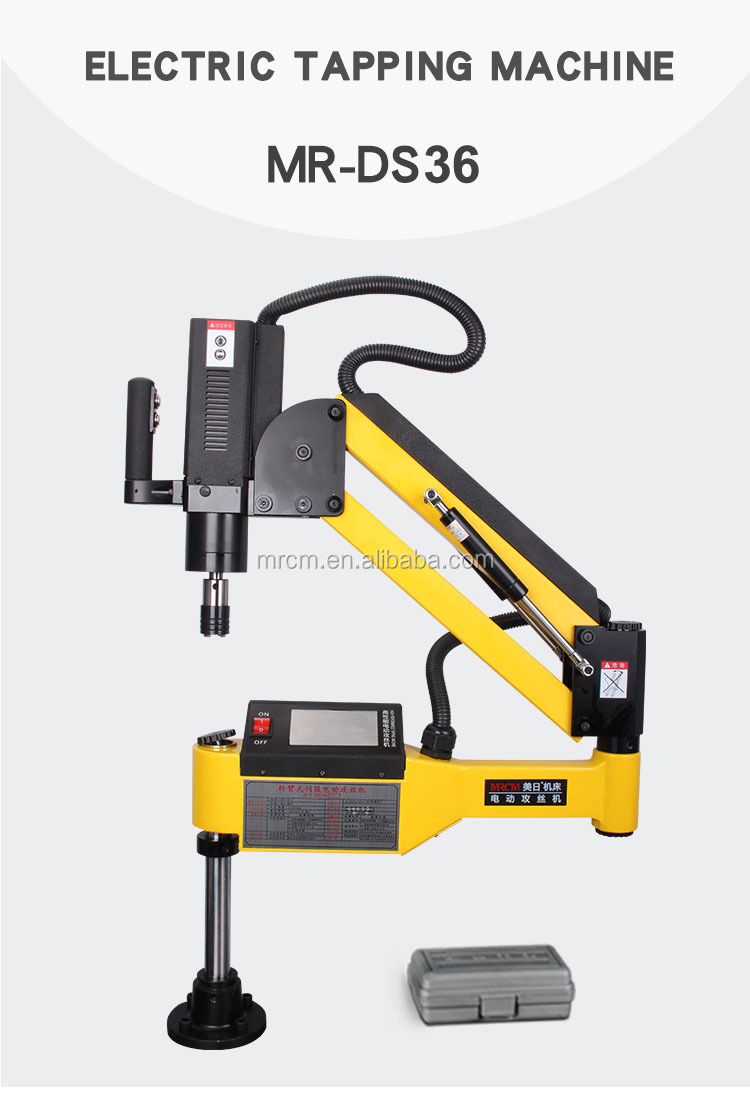

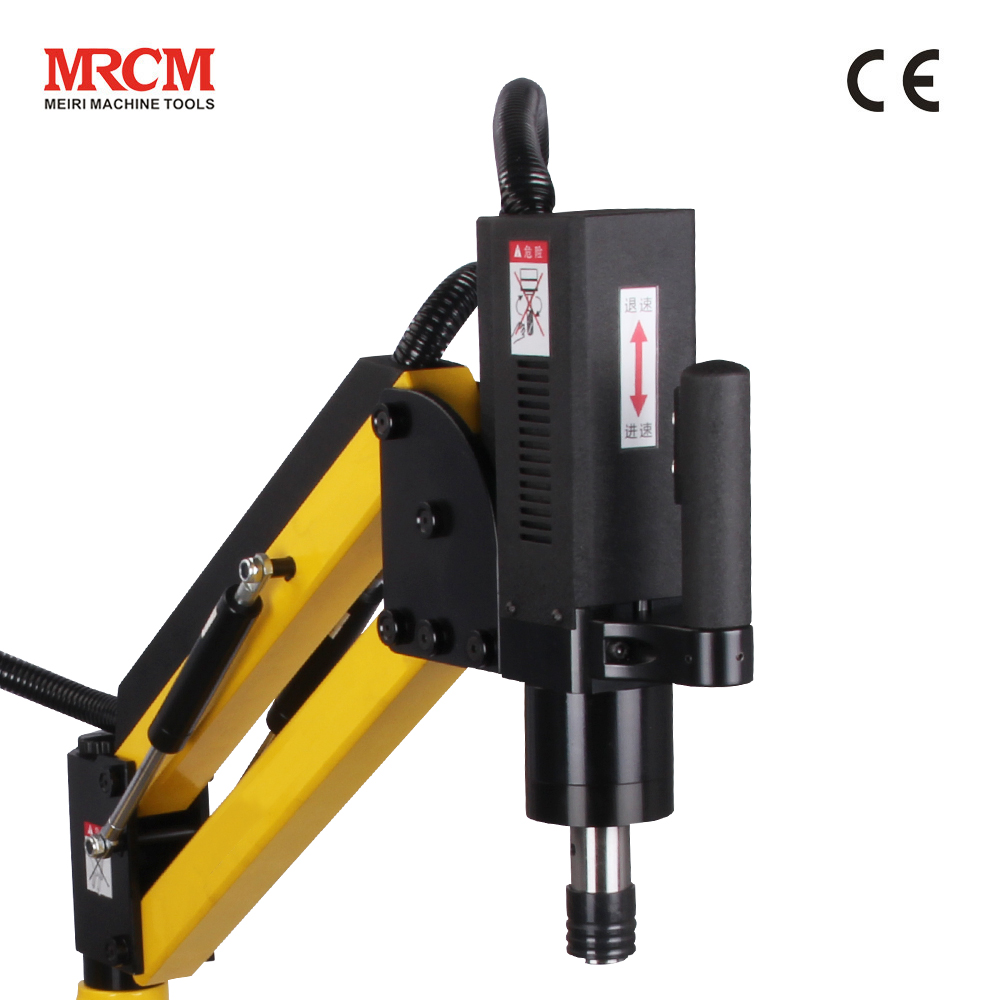

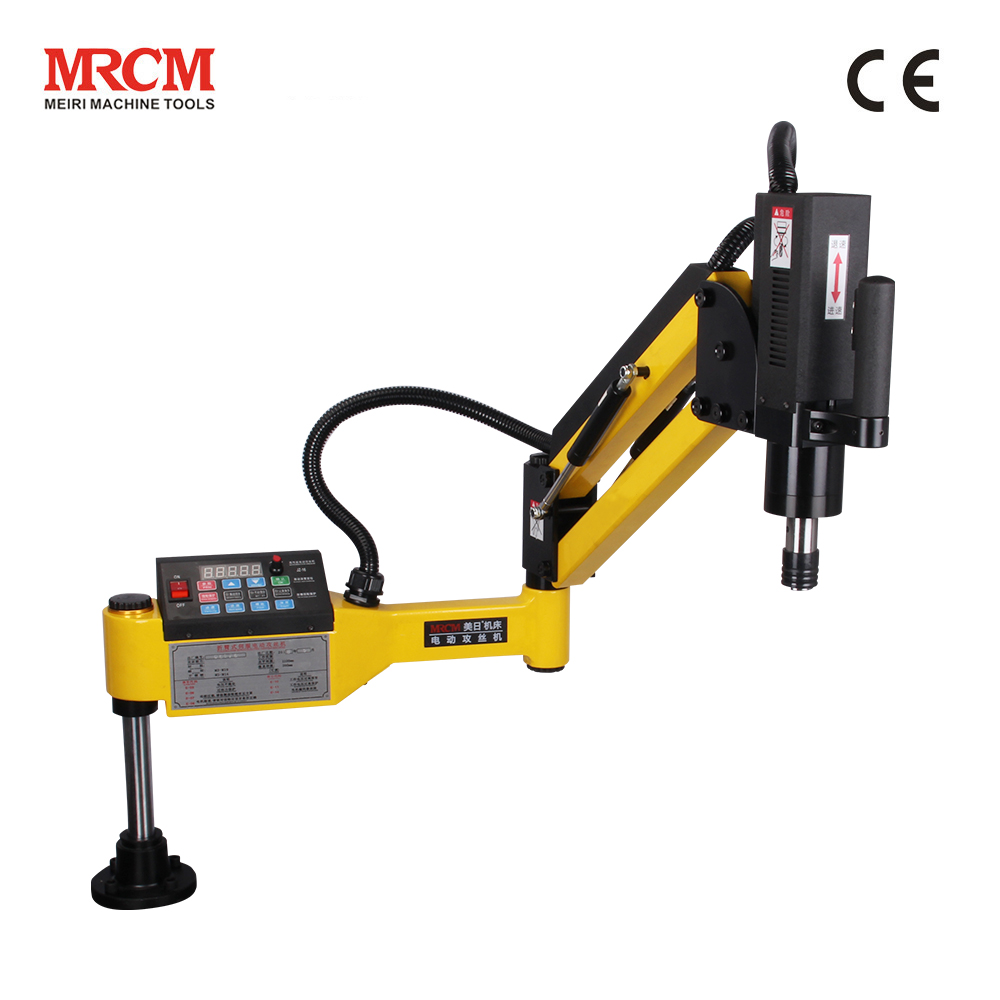

Electric Servo Tapping Machine with Touch Screen
This electric servo tapping machine features intelligent torque protection and replaces traditional manual tapping methods. The high-definition touch screen simplifies operation for accurate processing of complex workpieces.
Technical Specifications
Product Overview
Advanced Electric Servo Tapping Solution

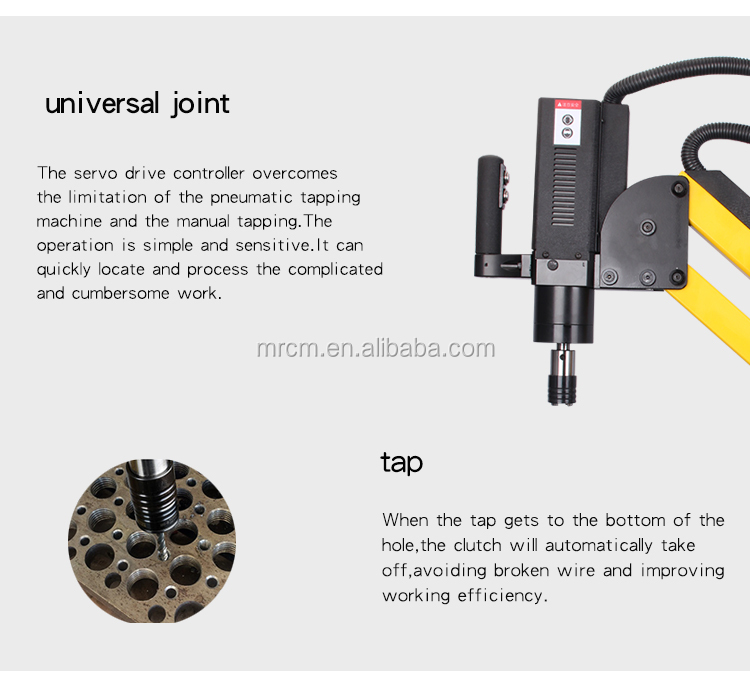

This high-performance electric tapping machine utilizes advanced servo drive control to overcome the limitations of traditional manual or pneumatic tapping methods. Designed for precision and efficiency, it features an intuitive high-definition touch screen interface that allows for flexible programming and accurate depth control. With its robust mechanical design and intelligent torque protection, this machine ensures durable, deformation-free operation suitable for complex and heavy workpieces in industrial environments.
Technical Specifications
- Tapping Range
- M6 - M36
- Input Voltage
- 220 V
- Power
- 1200 W
- Speed Range
- 0-150 rpm/min
Equipment & Accessories
Included Tap Collets
- M6-8
- M10
- M12
- M14
- M16
- M18-20
- M22
- M24
- M27-30
- M33
- M36
- Optional Add-ons
- Magnetic Seat (1000KG)
Key Features
Operating Modes
Performance Highlights
