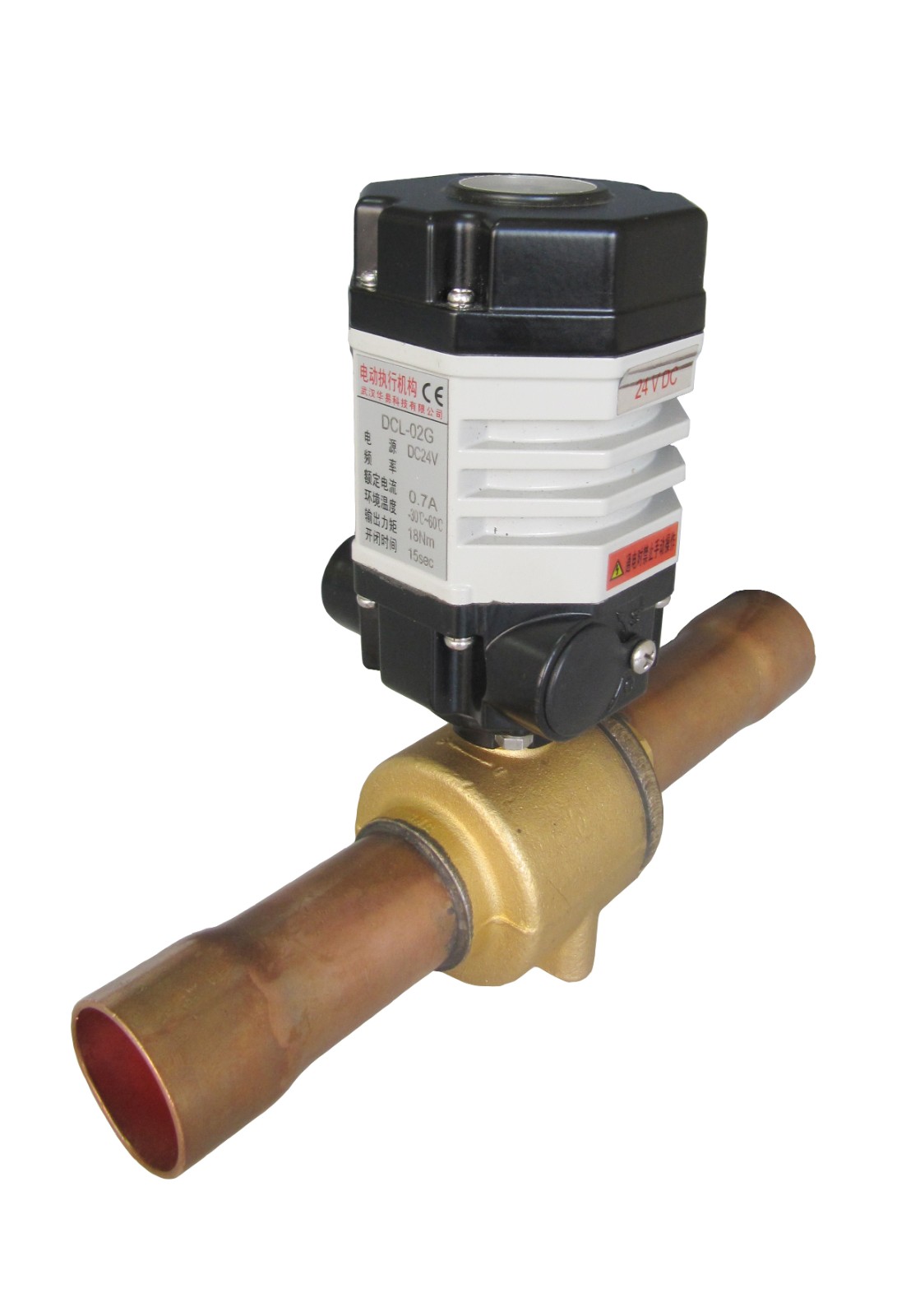

Electric Quarter Turn Valve Actuator
This electric actuator is designed for quarter-turn valve applications. It features a durable aluminum alloy housing and operates on either 24VDC or 12VDC power.
Technical Specifications
Overview
High-Performance Electric Actuator
This compact electric quarter-turn actuator is designed for reliable valve automation in high-security environments, operating on safe 24VDC or 12VDC power. It utilizes a high-performance permanent magnet brush motor to ensure consistent torque and speed regardless of load variations. With a rugged aluminum alloy housing and IP67/NEMA 4X protection, it is built to withstand demanding indoor and outdoor conditions.

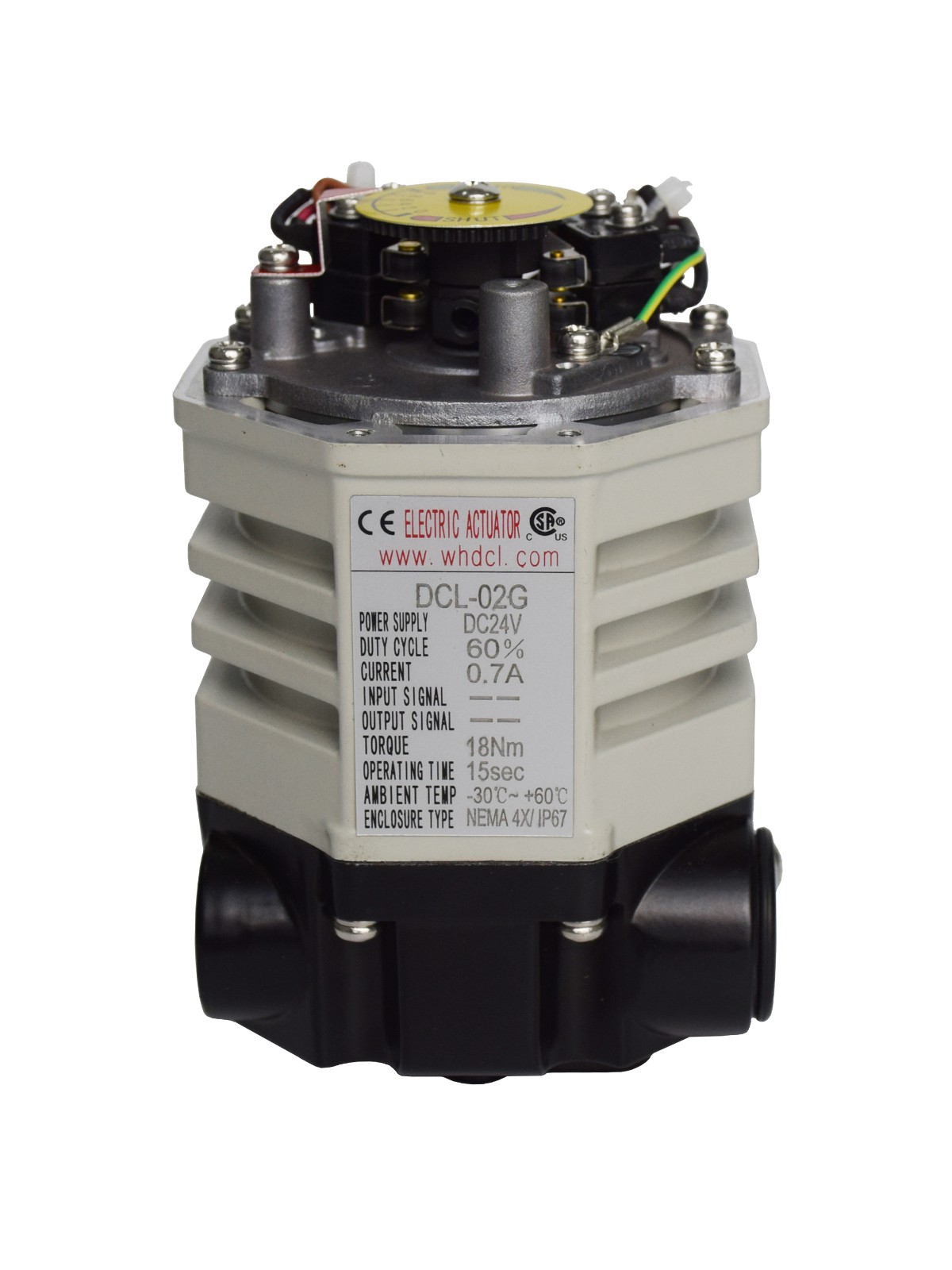

Technical Specifications
Output Torque
18 Nm
Torque
- Operating Time
- 15 sec
- Duty Cycle
- 60 %
- Rated Current
- 0.7 A
Electrical
- Power Supply
- 24VDC12VDC
Environmental & Protection
Enclosure Rating
IP67NEMA 4X
- Ambient Temperature
- -30°C to +60°C
Features
Key Features
- Quarter turn operation (<360°)
- Self-locking mechanism when powered off
- Manual operation handle
- Dual limit switches for position confirmation
- Soft nitriding metal gear train
- Thermally protected motor
Compliance
- Certifications
- CERoHS 3CSA
