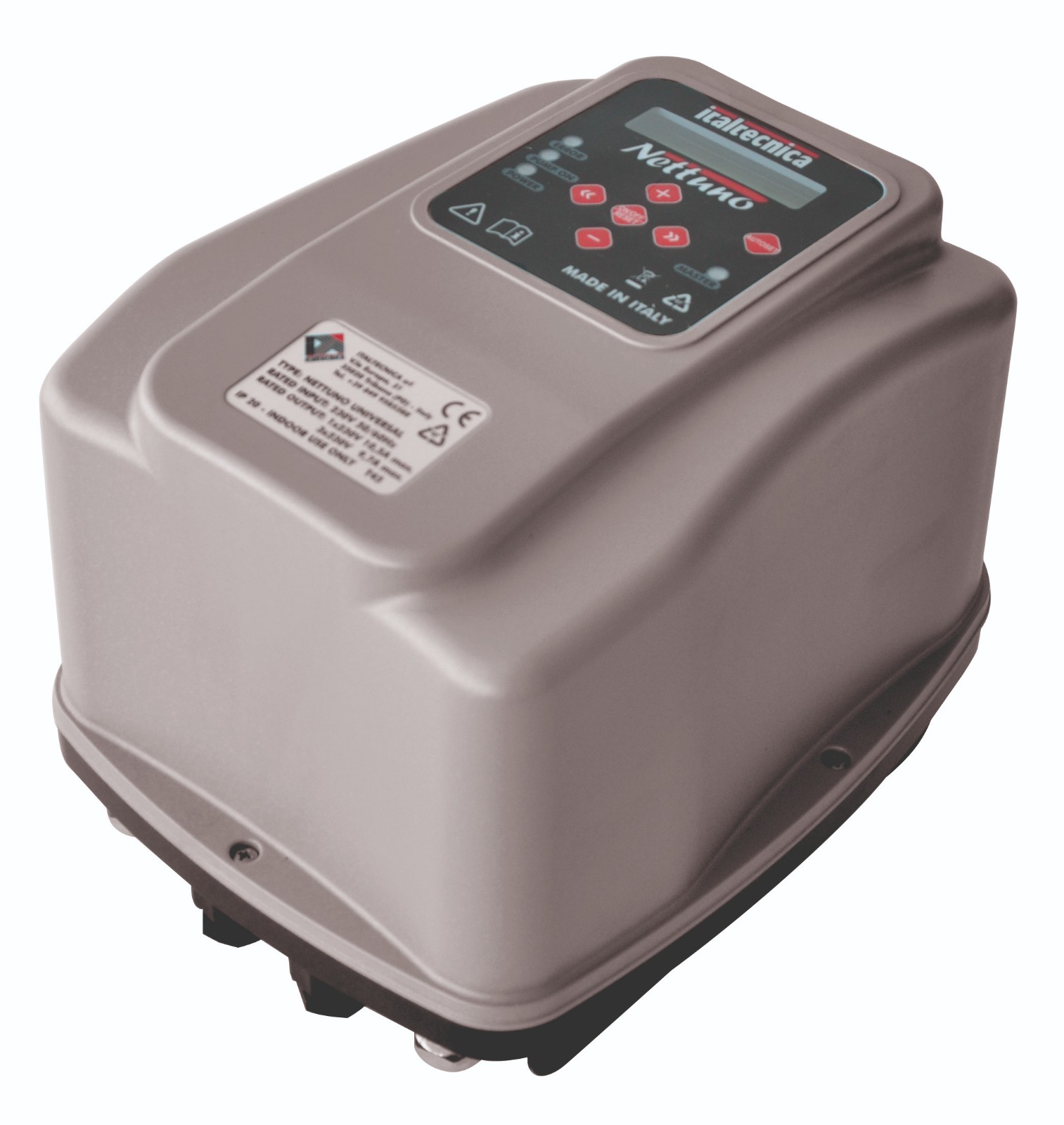

Electric Pump Inverter
This electric pump inverter employs technology to control traditional electric pumps, managing start and stop functions. It modulates the motor's input current frequency to adjust speed according to the system's water demand.
Technical Specifications
Overview
Advanced Pump Control
This electronic inverter device utilizes advanced frequency modulation technology to control traditional electric pumps, including surface, vertical, and submersible models. By adjusting motor speed based on real-time water demand, it ensures constant pressure, significantly reduces energy consumption, and prevents hydraulic hammering through soft-start/stop functions. The system is designed for reliability with comprehensive protections, including dry-running monitoring and automatic reset capabilities.
Technical Specifications
Motor Output Ratings
10.5 A
Max 1x230V Output
9.7 A
Max 3x230V Output
Protection Rating
IP44
- Power Supply
- Single-phase 230Vac ±10% - 50/60Hz
- Cooling System
- Forced air ventilation
- Max Ambient Temperature
- 45 °C

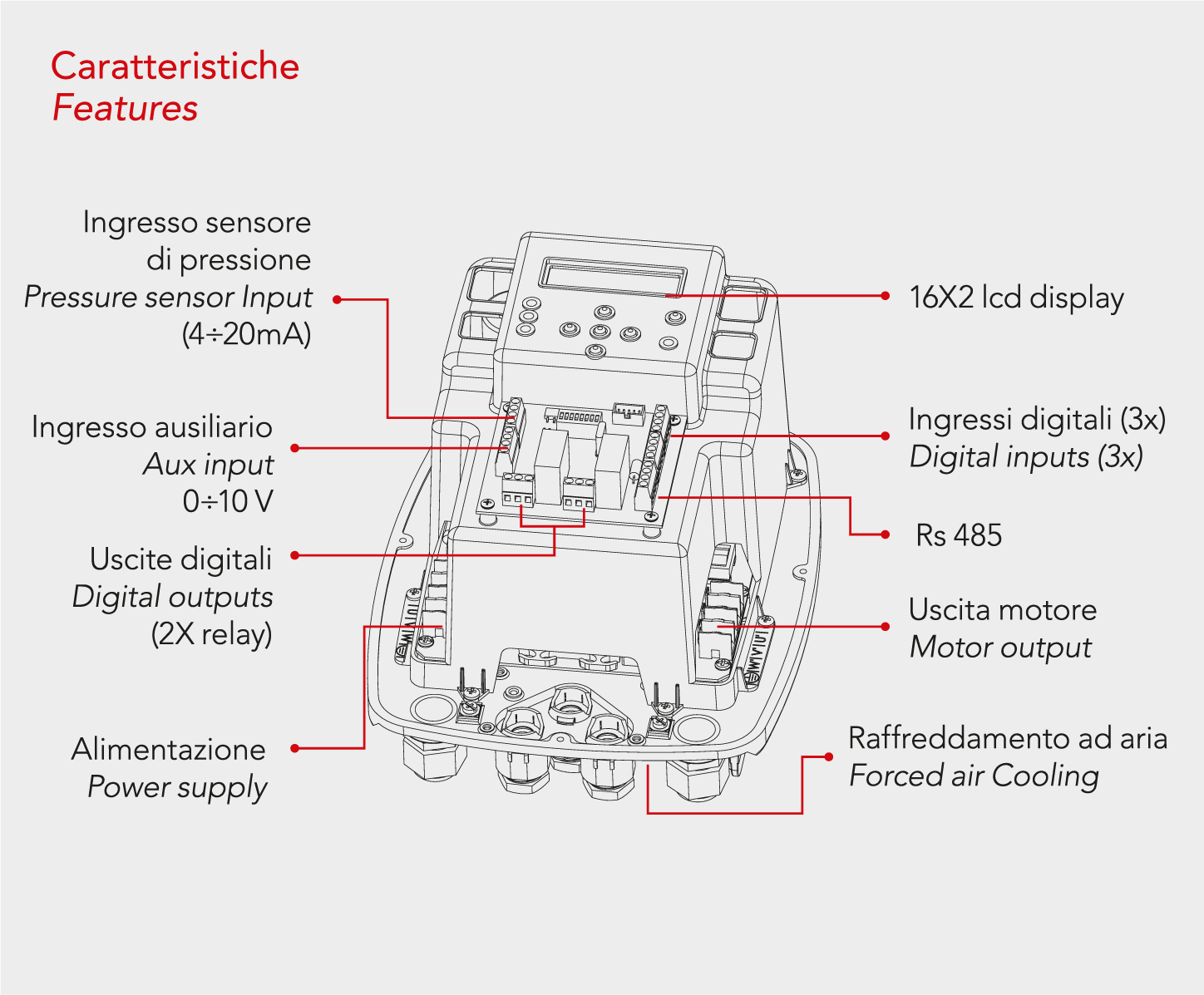

Connectivity & Control
Inputs
- Pressure sensor input (4-20mA)
- Auxiliary input (0-10V)
- 3x Digital inputs
Outputs
- 2x Relay outputs (programmable functions)
- RS485 communication port
System Capabilities
- Booster Set Capacity
- 8 pumps
- Key Features
- Soft-StartDry-Running ProtectionLeakage MonitoringAnti-seize FunctionConstant Pressure

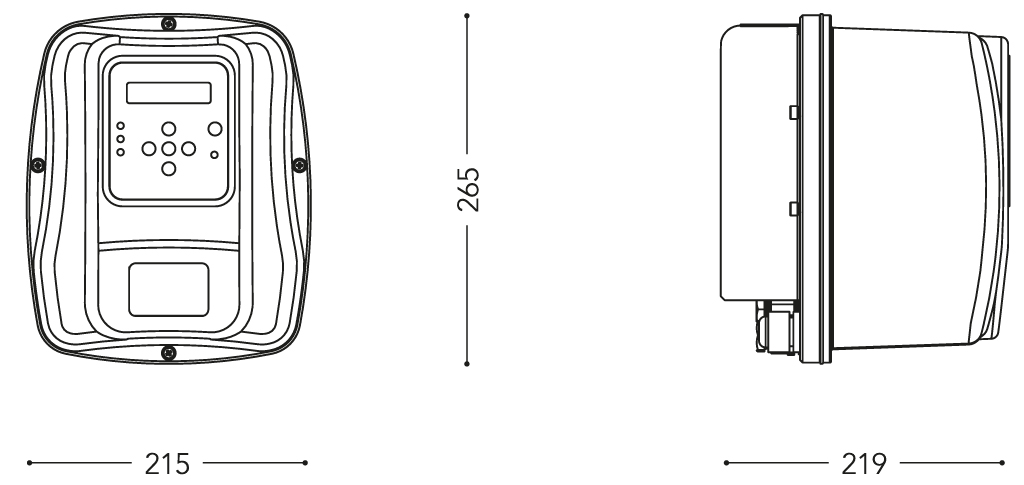

Dimensions
- Dimensions (W x H x D)
- 215mm x 265mm x 219mm
