Electric Pump Electronic Flow Controller
This electronic device automates the start and stop operations of single-phase electric pumps. It provides protection against dry running and features adjustable starting pressure.
Technical Specifications
Overview

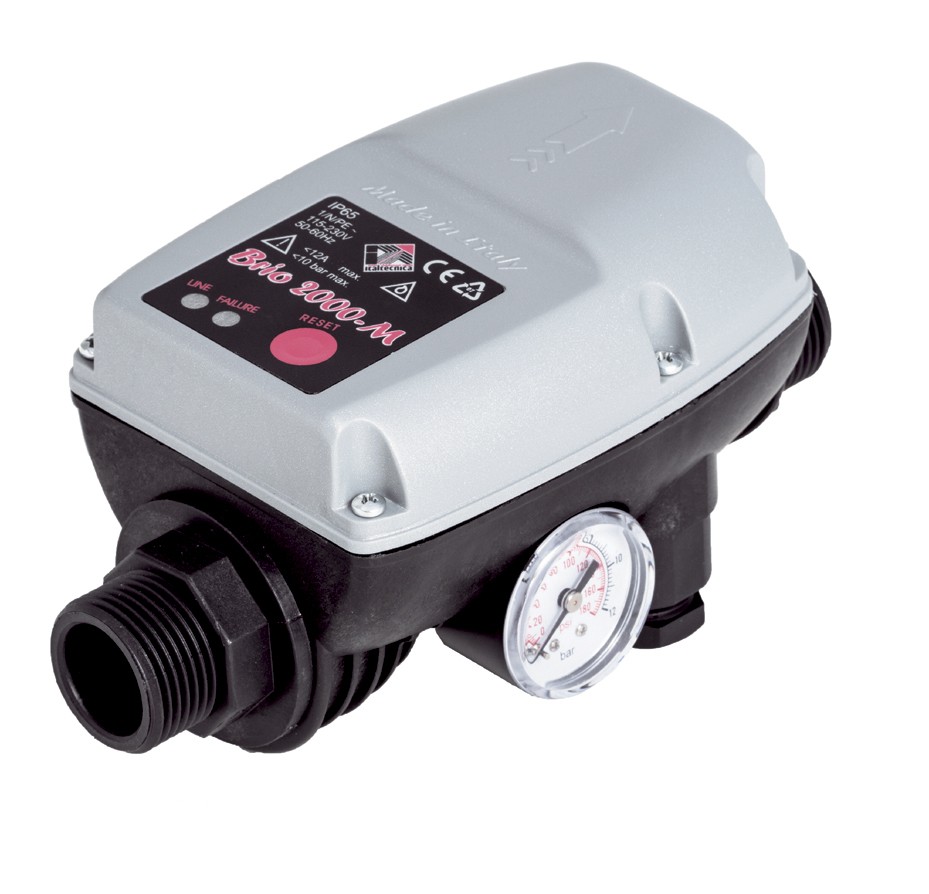

Electronic Pump Control
This electronic controller automates the start and stop operations of single-phase electric pumps, effectively replacing traditional pressure switch and tank systems. It activates the pump upon pressure decrease, such as when a tap is opened, and halts operation when flow ceases. Designed for versatility, it includes built-in protection against dry running and allows for flexible installation in both vertical and horizontal positions.

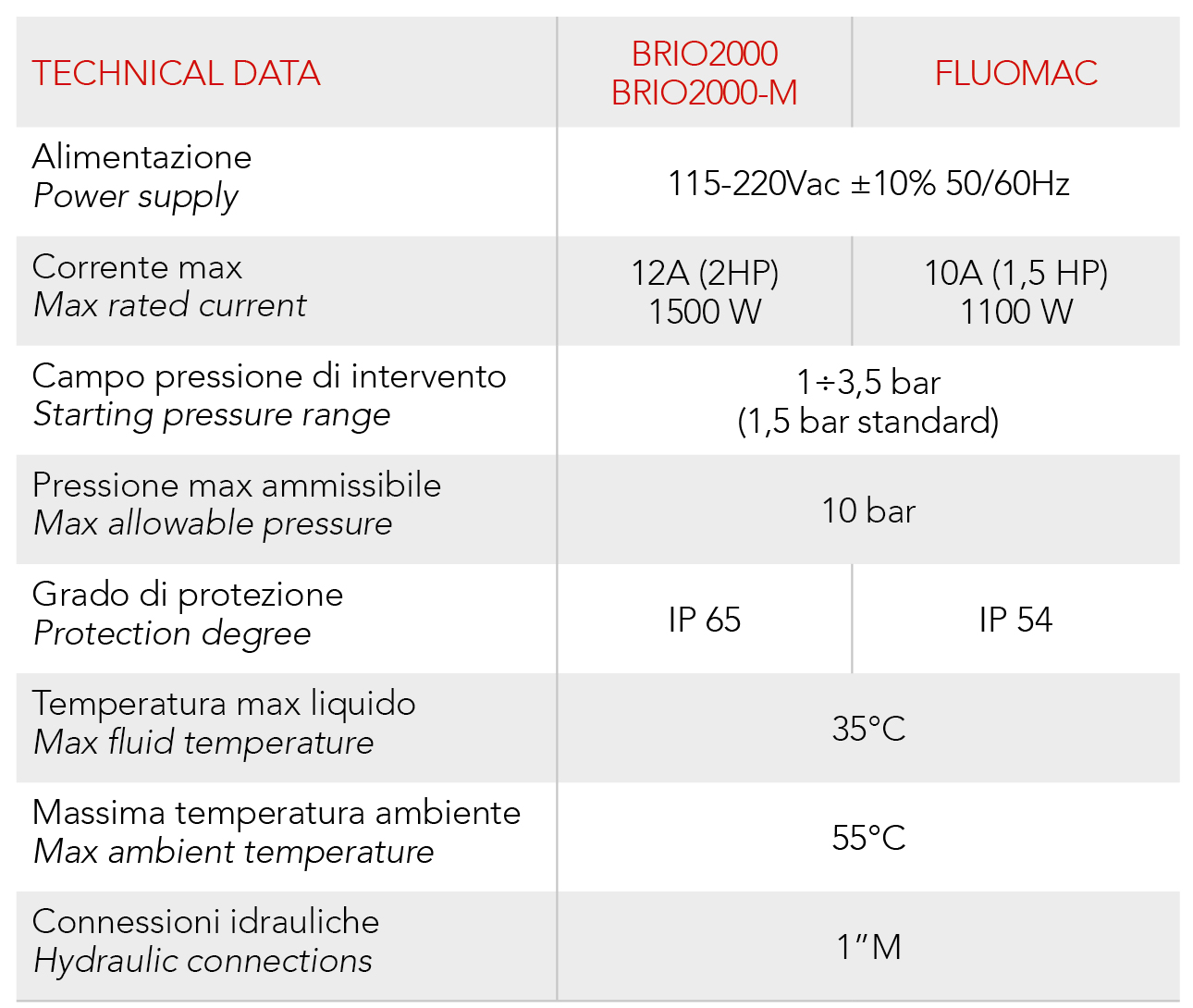

Technical Specifications
- Power Supply
- 115-220Vac ±10% 50/60Hz
- Max Current (Brio 2000/M)
- 12 A
- Max Power (Brio 2000/M)
- 1500 W
- Starting Pressure Range
- 1 - 3.5 bar (1.5 bar standard)
- Max Allowable Pressure
- 10 bar
- Hydraulic Connections
- 1" M
Environmental Ratings
- Protection Degree
- IP65 (Brio 2000/M)IP54 (Fluomac)
- Max Fluid Temperature
- 35 °C
- Max Ambient Temperature
- 55 °C
Key Features
Core Functionalities
- Dry running protection
- Adjustable starting pressure
- Maintenance-free operation
- Easily replaceable PCB
- Installation in by-pass mode
