Electric Pulling Winch
This electric winch is designed for heavy-duty pulling applications. It features a robust motor, durable steel cable, and remote control for safe operation.
Technical Specifications
Overview

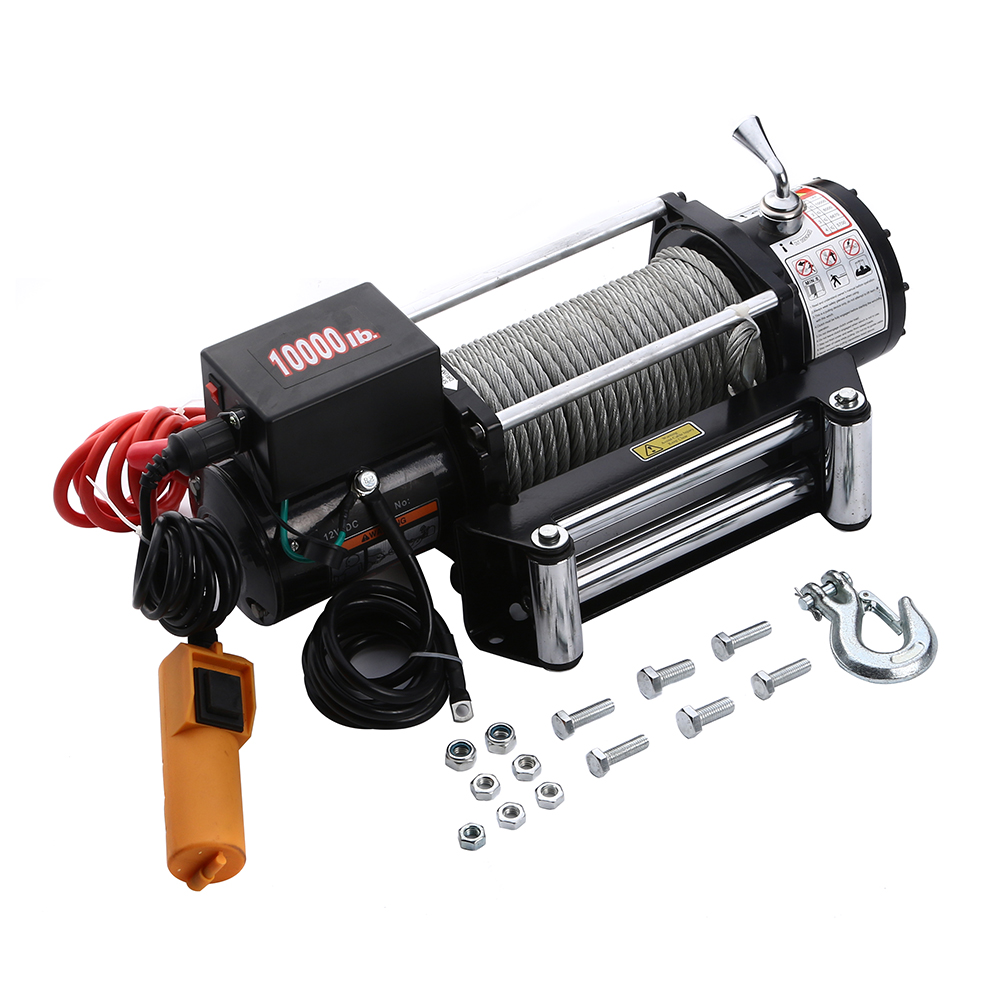

Heavy-Duty Electric Pulling Winch
This 12V DC electric winch is engineered for demanding pulling applications, offering a robust 10,000 lbs pulling capacity. It features a high-performance series wound motor and a full metal 3-stage planetary gear system for reliable operation in vehicle recovery and industrial settings. Designed for durability and ease of use, it includes an automatic braking system, weather-sealed components, and convenient remote control operation.
Performance Metrics
Rated Line Pull
10,000 lbs
Rated Line Pull
4,545 kgs
Rated Line Pull
- Gear Ratio
- 294:1
- Motor
- 12V DC, 6.0hp (4.4kw) Series wound
- Braking System
- Automatic braking system
Physical Dimensions
- Overall Dimensions
- 21.85" x 6.14" x 8.74" (555mm x 156mm x 222mm)
- Drum Size
- 2.48" x 8.98" (63mm x 228mm)
Wire Rope & Fairlead
- Wire Rope Dimensions
- 0.36" x 92' (9.2mm x 28m)
- Fairlead Type
- Heavy duty 4-Way Roller fairlead
Features & Control
Durability Features
Weather sealed solenoidFull metal 3-stage planetary gearFree-spooling capable
- Control Options
- Power load inPower outSealed handlebar remoteLever shift clutch
