Technical Specifications
Overview

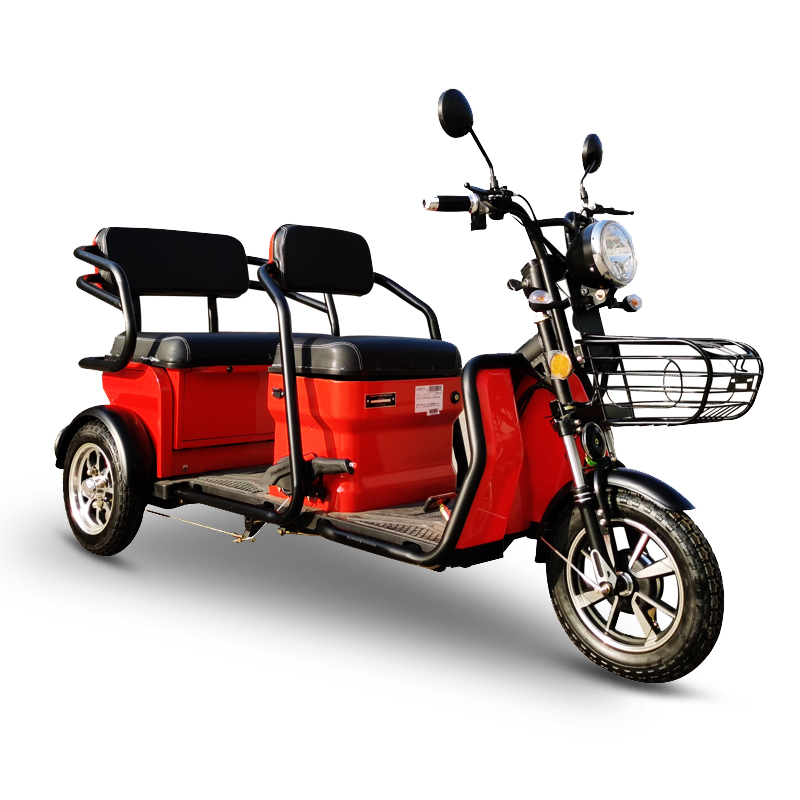

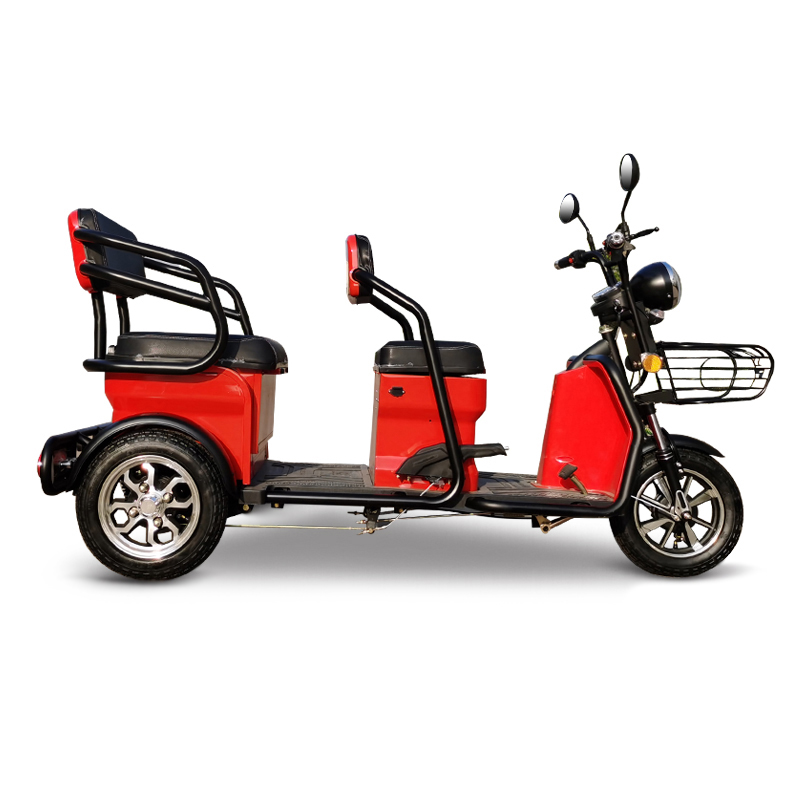

Versatile Electric Passenger Tricycle
This electric passenger tricycle is designed for efficient urban commuting and personal transportation. It features a robust frame with a foldable back seat, allowing for flexible cargo or passenger carrying capacity. Equipped with a 1000W brushless motor and maintenance-free battery, it offers a reliable, eco-friendly ride with a range of up to 50km per charge.
Performance
Rated Power
1,000 W
Rated Power
2,200 W
Peak Power
- Max Speed
- 30 km/h
- Mileage Per Charge
- 50 km
Battery & Charging
Battery Details
- 60V/32Ah maintenance-free battery
- Charging time: 8 hours
Dimensions & Capacity
Weight Capacity
| Metric | Value |
|---|---|
| Curb Weight | 125 |
| Rated Gross Weight (kg) | 320 |
| Max Designed Gross Weight (kg) | 400 |
- Overall Dimensions
- 2045 x 880 x 1035 mm
Technical Specifications
Suspension
- Front: Single/φ27mm/hydraulic/shock absorber
- Rear: Spring shock absorber
- Motor Type
- 60V DC brushless/sine wave/magnetic steel height 50H
- Brake System
- Mechanical drum brakes (Front and Rear)
Certifications & Features
Key Features
EEC CertifiedFoldable Rear SeatOff-seat AlarmFront Basket Included
