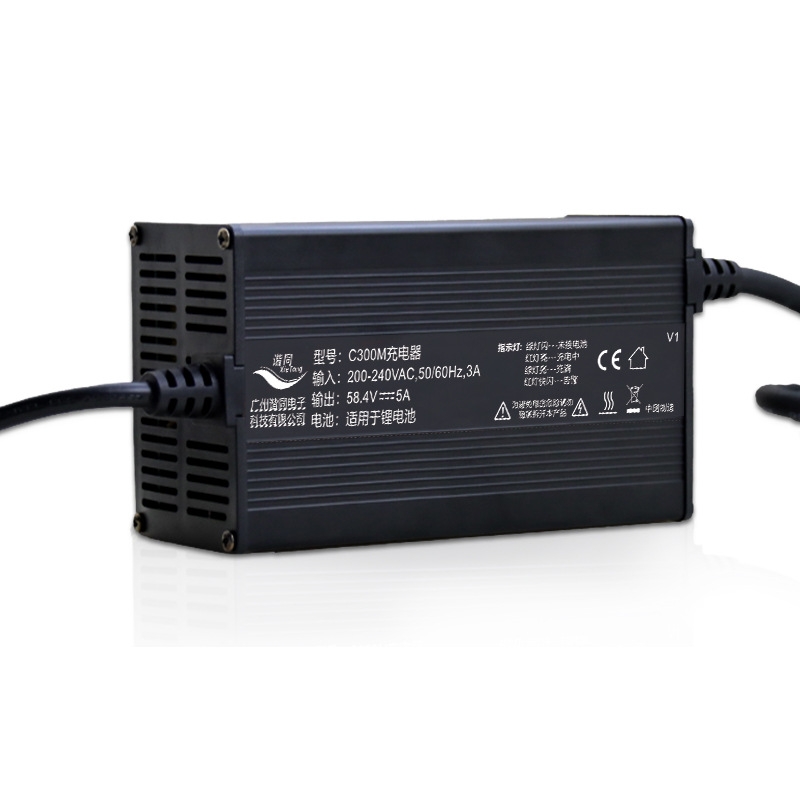

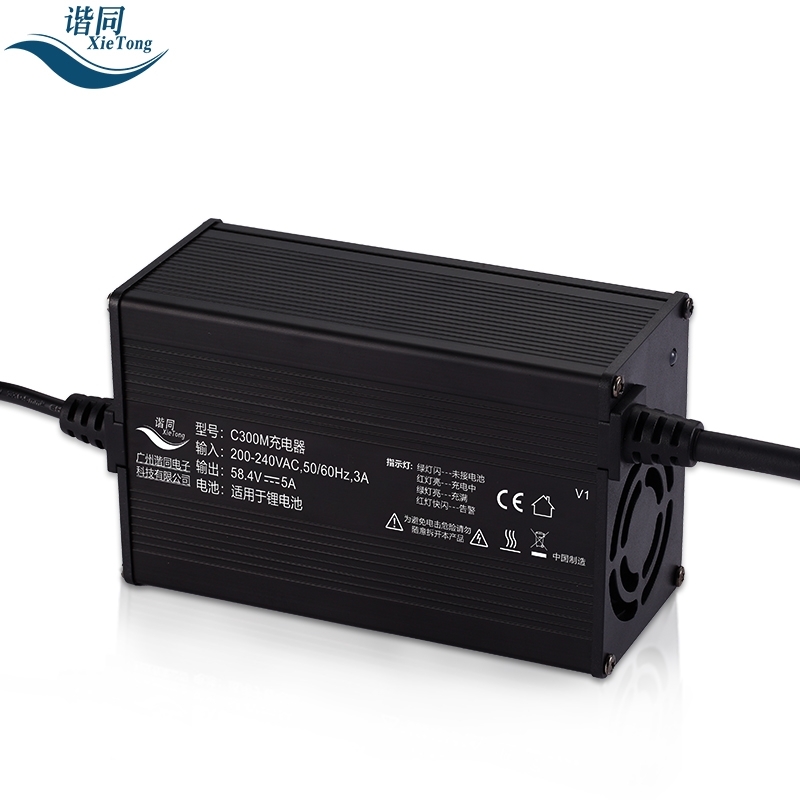

Electric Motorcycle/Scooter Lithium-Ion Battery Charger
This lithium-ion battery charger is designed for electric motorcycles and scooters. It provides a 58.8V output, suitable for 14S 48V battery packs, ensuring efficient and safe charging and extending battery lifespan.
Technical Specifications
Overview
High-Performance Battery Charging Solution
This versatile battery charger is engineered for electric motorcycles, scooters, and e-bikes, providing efficient and reliable power delivery. Designed for compatibility with various battery chemistries including Li-ion, LiFePO4, and lead-acid, it ensures optimal charging cycles. With a compact, durable aluminium alloy construction and integrated safety features, it is a robust choice for professional and consumer electric vehicle maintenance.
Technical Specifications
Output Voltage & Current
58.8 V
Voltage
6 A
Current
- Output Power
- 400 W
- Input Voltage Range
- 110-132VAC / 200-264VAC
- Supported Battery Types
- Li-ionLiFePO4Lead Acid
Physical Attributes
- Dimensions
- 137 x 90 x 51 mm
- Net Weight
- 1 kg
- Housing Material
- Aluminium Alloy
Compliance & Support
Certifications
CE
- Warranty
- 12 Months
- Socket Standard
- Customizable per region
Operational Indicators
LED Status Indicators
| Status | Indication |
|---|---|
| Green Flashing | Battery Not Connected |
| Red Solid | Charging |
| Green Solid | Fully Charged |
| Red Flashing | Error/Warning |
