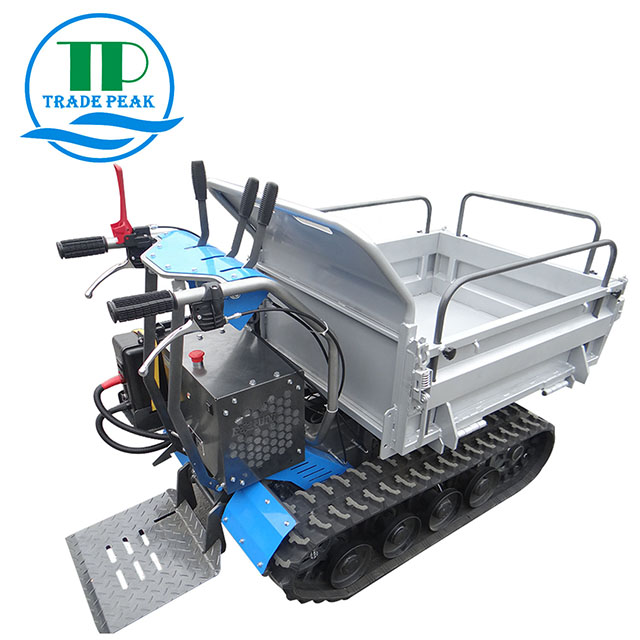

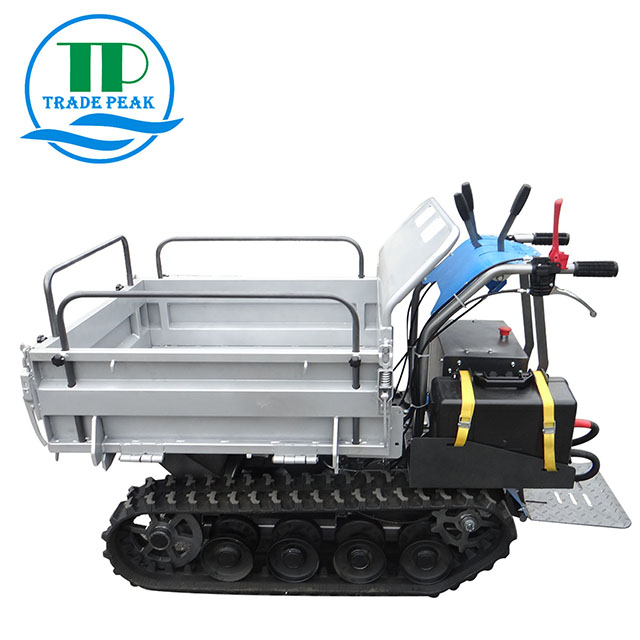

Electric Mini Tracked Dumper with 500kg Capacity
This electric mini dumper is designed for efficient material handling on diverse terrains. It has a load capacity of 500kg and features a tilting mechanism for easy unloading.
Technical Specifications
Overview
Compact Electric Power
This electric mini tracked dumper is a versatile and efficient solution for material handling in construction, agriculture, and landscaping. Powered by a 2200W brushless DC motor, it offers quiet, emission-free operation suitable for both indoor and outdoor environments. With a 500kg load capacity and a durable tracked design, it provides excellent stability and maneuverability in tight spaces and challenging terrains.
Performance & Power
Motor Power
2,200 W
Motor Power
500 kg
Load Capacity
- Motor Type
- Brushless DC Motor
- Battery Capacity
- 50 Ah
- Operating Voltage
- 48 V
Technical Specifications
- Transmission
- CVT Gearbox
- Rubber Track Size
- 180 x 60 mm
Dimensions
Cargo Box Dimensions
| Dimension | Value (mm) |
|---|---|
| Width | 742 |
| Length | 1,120 |
| Depth | 260 |
- Packing Size (L x W x D)
- 1700 x 900 x 1100 mm
