Technical Specifications
Overview
Precision Metal Shearing Performance

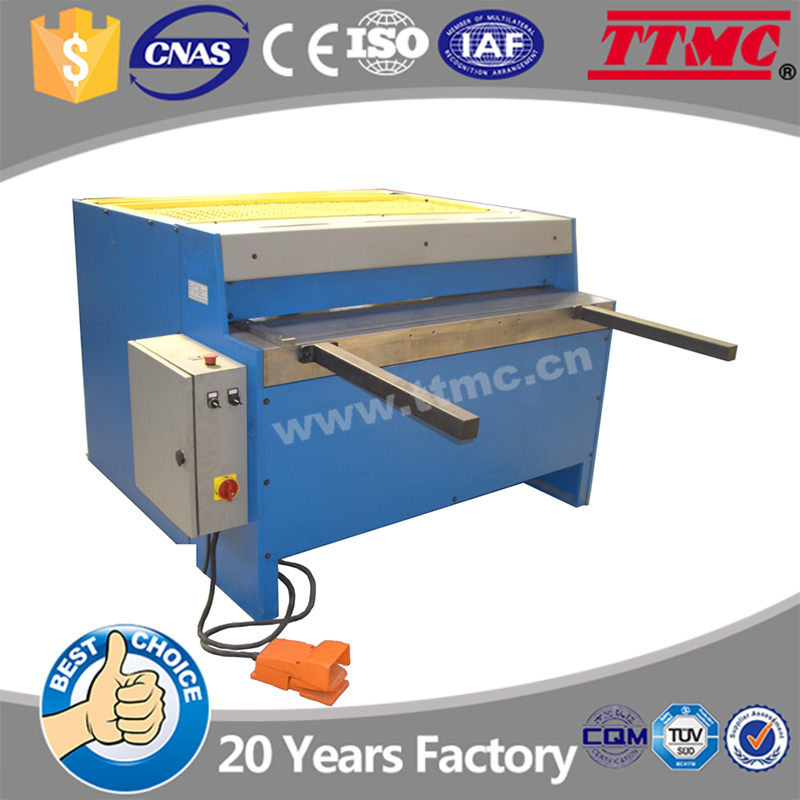

This industrial electric shearing machine is engineered for precision and efficiency in metalworking applications. It features a robust construction designed for stability, including an automatic rubber-coated sheet hold and cutting line lighting for enhanced accuracy. With a 3 kW motor and user-friendly controls like a mobile 24V foot switch, it provides a reliable solution for heavy-duty cutting tasks.
Technical Specifications
- Max Shearing Thickness
- 3 mm
- Max Shearing Width
- 1250 mm
- Motor Power
- 3 kW
- Shearing Angle
- 2 degrees
- Strokes per Minute
- 30 spm
- Back Gauge Range
- 630 mm
Logistics
- Net Weight
- 980 kg
- Gross Weight
- 1140 kg
- Packing Dimensions
- 184 x 103 x 135 cm
Features
Standard Features
- Manual back gauge with mm-counter
- Cutting line lighting
- Mobile 24V foot switch
- Bench angle-stop
- Automatic rubber-coated sheet hold
- Included Accessories
- Shearing blade24V mobile foot pedal switchBack gauge
Compliance
Certifications
CETUVSUDCQM
