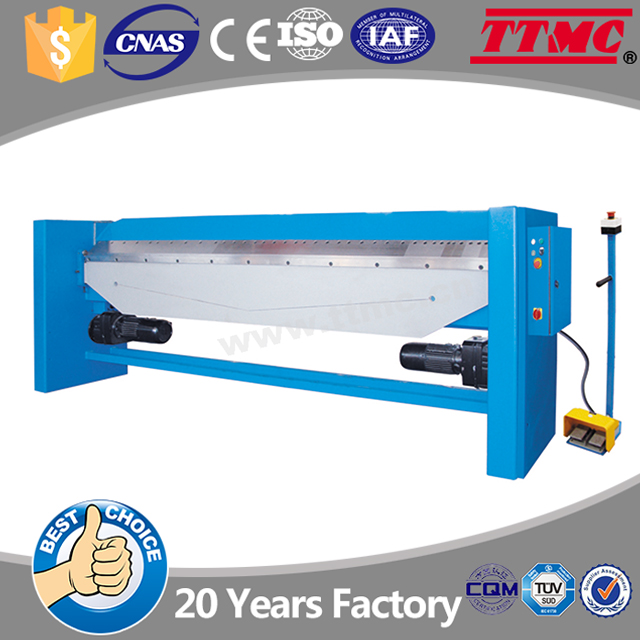

Electric Metal Folding Machine
This electric folding machine is designed for precise metal bending. It features a robust frame and electric motor for powered operation, along with segmented tooling for versatile bending configurations.
Technical Specifications
Overview
Precision Metal Bending Solution
This electric metal folding machine is designed for high-efficiency metal fabrication, offering consistent and repeatable results for various applications. It features a robust, heavy-duty steel frame for stability and is equipped with segmented blades to allow for versatile bending configurations. With dual electric motors for pressing and folding, plus convenient foot pedal operation, this machine streamlines the bending process while ensuring user safety and control.
Technical Specifications
Bending Capacity
3,020 mm
Max Bending Width
1 mm
Max Bending Thickness
135 °
Max Bending Angle
Dimensions & Weight
| Metric | Value |
|---|---|
| Opening Height | 100 mm (4") |
| Net Weight | 1630 kg (3598 lbs) |
| Gross Weight | 1930 kg (4260 lbs) |
| Packing Size | 383 x 76 x 141 cm |
Motor Specifications
- Pressing Motor: 0.37 kW (0.50 HP)
- Folding Motor: 0.75 kW (1 HP)
Features & Compliance
Certifications
CEISOTUV
- Key Features
- Segmented bladesFoot pedal operationElectric poweredHeavy-duty steel frame
