Electric Drill Bit and End Mill Sharpener

This electric machine is designed for sharpening both drill bits and end mills with high efficiency. It features easy operation and delivers precise grinding for various bit sizes.

Request a Quote Download PDFPDF

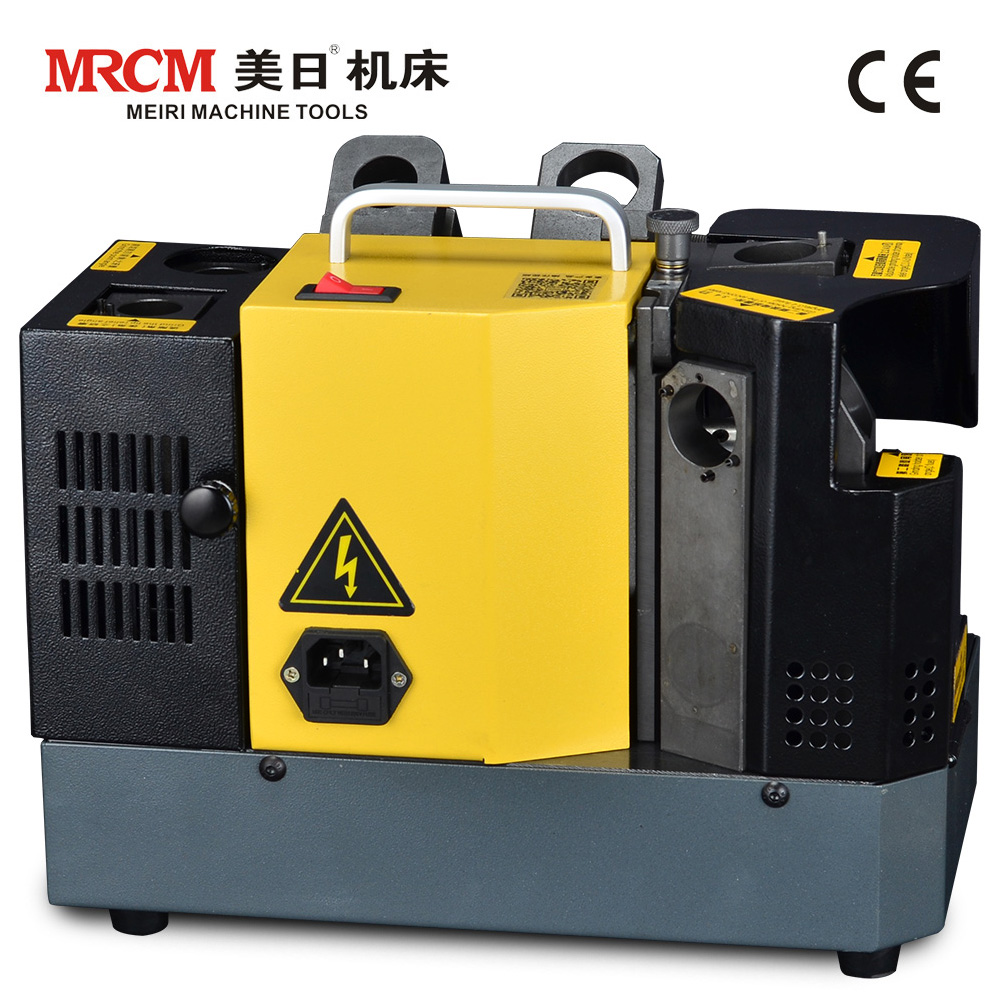

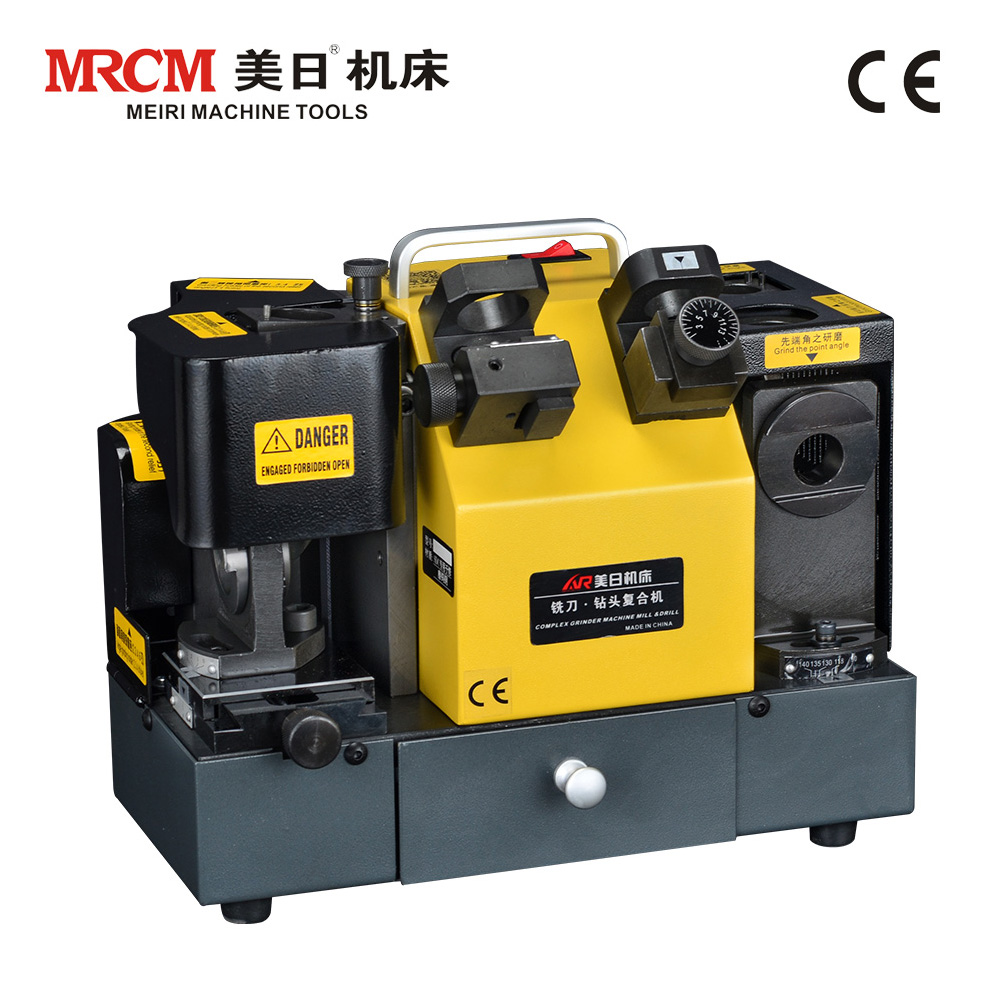

MR- F6 electric button high efficiency bit sharpening/ grinding machine with CE certificat - Image 1

Technical Specifications

Overview

High-Efficiency Sharpening Solution

This electric sharpener offers a versatile 2-in-1 design, allowing for the precise maintenance of both drill bits and end mills in a single, compact unit. Engineered for ease of use, it enables operators without extensive grinding experience to achieve professional results quickly. The system supports multiple flute counts and adjustable angles, making it an essential tool for maintaining consistent cutting performance and extending tool life in industrial and workshop environments.

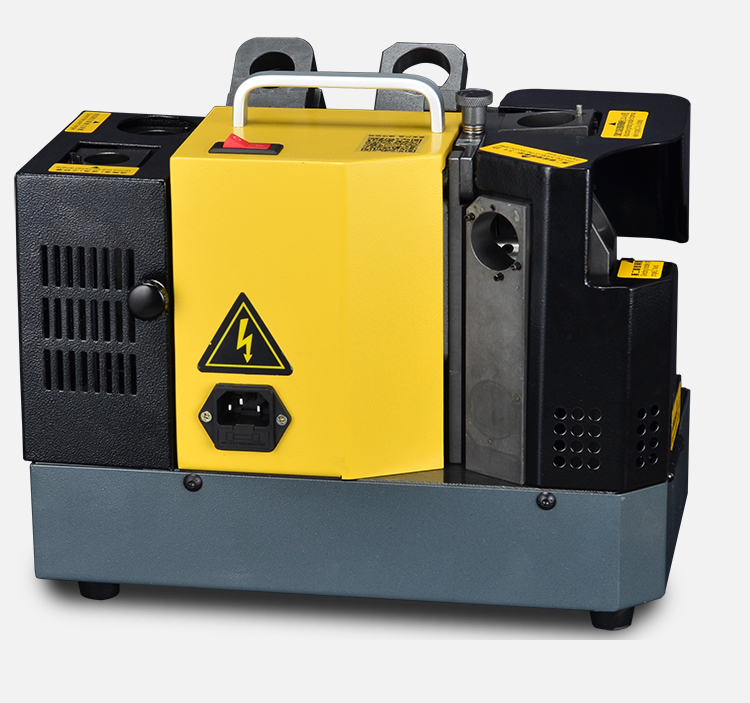

Front view of the compact grinding machine — Compact design suitable for professional workshops and industrial settings.

Technical Specifications

Power Specifications

220 V

Voltage

250 W

Power

4,400 rpm

Rotational Speed

Physical Dimensions: 35 x 25 x 30 cm
Weight: 48 kg

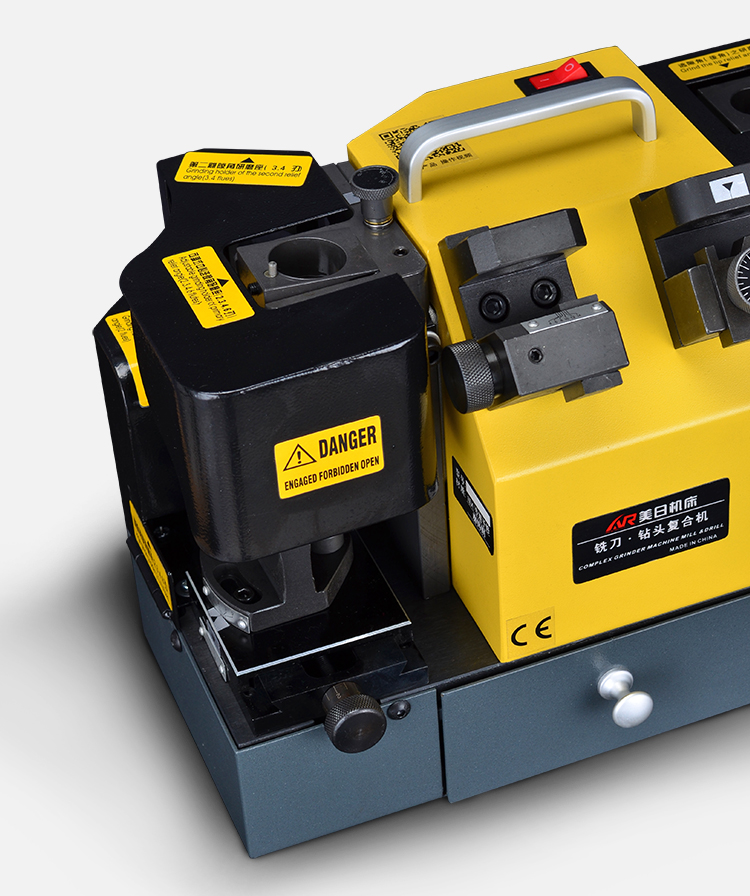

Precision adjustment mechanism for setting grinding angles.

Capabilities

Grinding Capabilities

Tool Type	Diameter Range	Point Angle
End Mill	Φ12-Φ30mm	0°-5°
Drill Bit	Φ13-Φ32mm	95°-135°

Supported Flute Counts: 2-flute3-flute4-flute6-flute

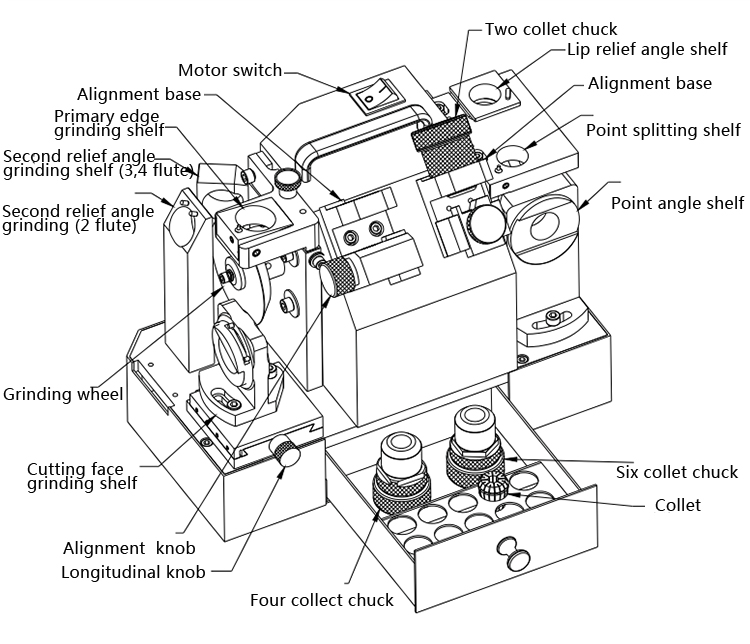

Detailed view of the MR-F6 grinding machine with labeled components — Machine layout showing grinding shelves for primary edge, relief angles, and point splitting.

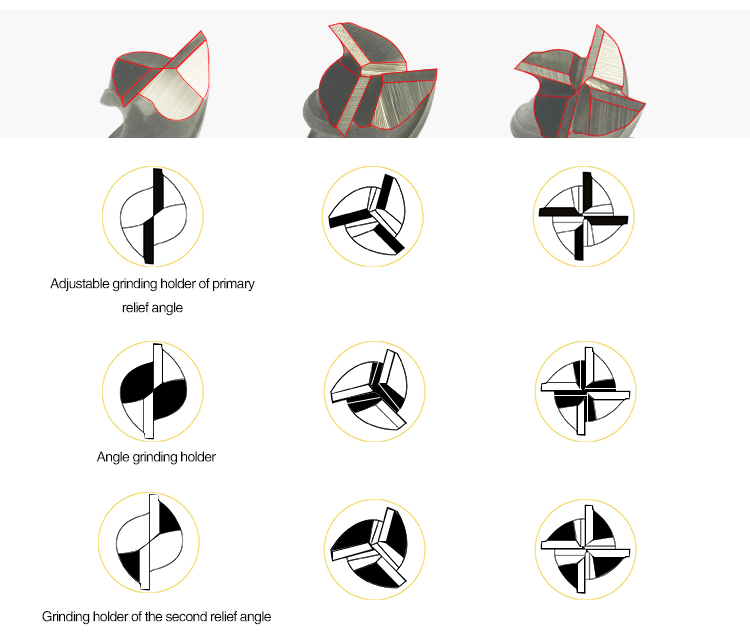

Adjustable grinding holders on the machine — Close-up of the adjustable grinding holders designed for precise relief angle control.

Included Equipment

Standard Equipment

1 x SDC Grinding Wheel (for carbide)
1 x CBN Grinding Wheel (for HSS)
19 Collets (Φ12-Φ30)
2 x Collet Chucks (for 2, 4 flutes)
1 x Collet Chuck (for 3, 6 flutes)
1 x Collet Chuck (for end mills Φ12-Φ30)

Compliance

Certifications

CE CertifiedNational Patent
