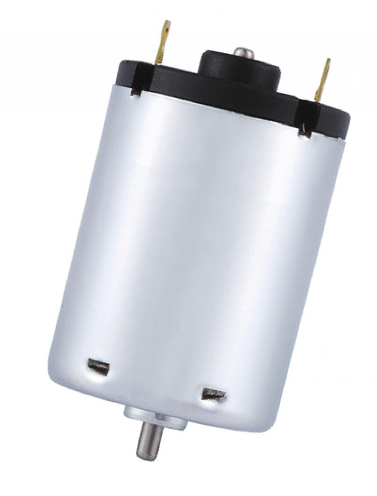

Electric Curtain DC Motor
This DC motor is designed for electric curtain applications. It features carbon brushes to ensure efficient power transfer and reliable operation.
Technical Specifications
Overview
High-Efficiency DC Motor for Electric Curtains
This compact DC motor is engineered specifically for electric curtain applications, featuring reliable carbon brush technology for consistent power transfer. Its durable metal housing ensures longevity, while the integrated varistor provides essential voltage protection for safe operation. Designed for precision, this motor offers versatile performance options to suit various curtain drive requirements.

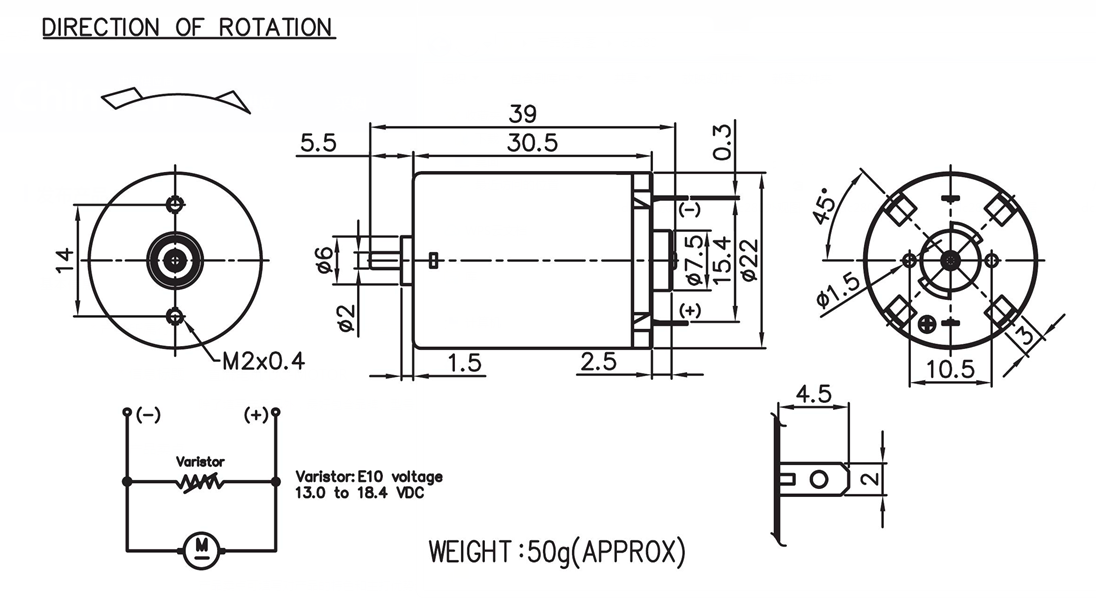

Physical Specifications
Shaft Diameter
- 2
- 6
- Approximate Weight
- 50 g
- Body Length
- 39 mm
- Mounting Hole Specification
- M2x0.4
Electrical Specifications
- Varistor Protection Range
- 13.0 - 18.4 VDC
Performance Data
Performance Metrics (RK-250VC Series)
| Model | Voltage | Max Speed (RPM) |
|---|---|---|
| RK-250VC-09540 | 24.0V | 9,000 |
| RK-250VC-11360 | 24.0V | 13,500 |
| RK-250VC-12270 | 12.0V | 9,000 |
| RK-250VC-16180 | 12.0V | 13,500 |
Features
- Key Features
- Carbon Brush TechnologyMetal HousingIntegrated VaristorCompact Design
