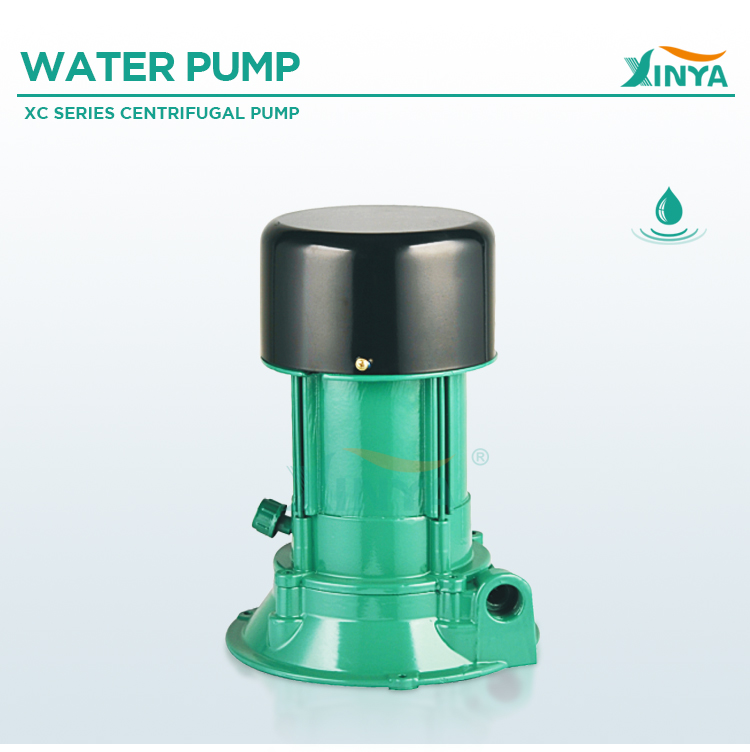

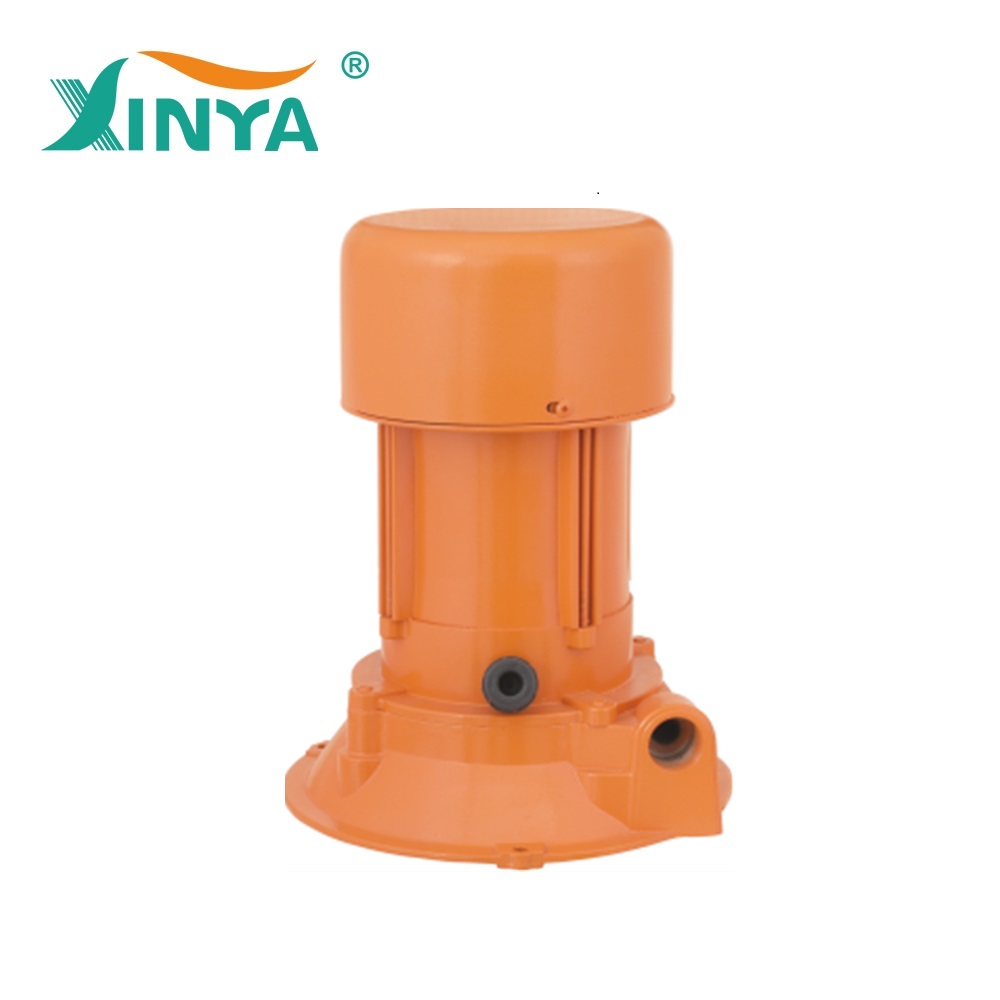

Electric Clean Water Self-Priming Pipe Pump, 500W, 0.66HP
This XC series self-priming pipe pump is suitable for arable land irrigation and mine water drainage. Its compact construction ensures efficient energy conservation and long-lasting durability, making it suitable for use in rivers, lakes, and wells.
Technical Specifications
Product Overview
Versatile Clean Water Solution
The XC550 self-priming pipe pump is engineered for efficient water transfer in both agricultural and residential environments. Its compact, durable construction ensures high-efficiency energy conservation and reliable sealing quality during operation. Ideally suited for drawing water from wells, rivers, and lakes, this pump is an essential tool for irrigation, flood control, and domestic pressurization tasks.
Technical Specifications
Performance Metrics
60 L/min
Max Flow Rate
21 m
Max Head
500 W
Power Rating
8 bar
Max Pressure
Materials & Build
| Component | Material |
|---|---|
| Pump Body | Aluminum |
| Impeller | Aluminum |
Operating Limits
- Max Fluid Temperature: 35°C
- Max Environment Temperature: 35°C
- Outlet Size: 3/4 inch
- Protection Rating: IP43
- Electrical Input
- 220V/50HZ110V/60HZ
Applications
- Common Use Cases
- IrrigationFlood ControlDomestic Water IntakePipe PressurizationSolar Energy PressurizationGreenhouse Watering
