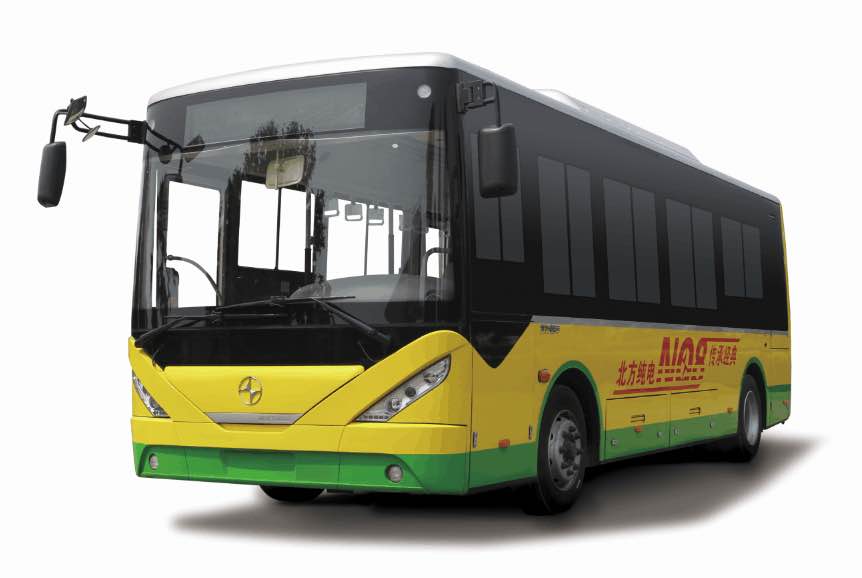

Electric City Bus with Low-Floor Design
This electric city bus is based on European technology and manufacturing processes. Its design ensures excellent safety and reduces energy consumption, optimizing driving range and operation costs.
Technical Specifications
Overview
Sustainable Urban Mobility
This fully electric city bus is engineered for efficient and sustainable public transportation. Featuring a low-floor design for enhanced accessibility and a high-capacity battery system, it provides a reliable range for daily urban routes. The vehicle combines a robust unitized body structure with modern safety and passenger comfort features, making it an ideal solution for environmentally conscious transit operators.
Performance & Powertrain
Key Performance Metrics
150 km
Driving Range
90 kW
Rated Power
150 kW
Peak Power
Battery System
| Parameter | Value |
|---|---|
| Battery Type | LFP (Lithium Iron Phosphate) |
| Total Voltage | 604V |
| Total Capacity | 172Ah |
| Battery Packs | 7 |
Dimensions & Capacity
Physical Dimensions
- Length: 8010mm
- Width: 2350mm
- Height: 3000mm
Vehicle Mass
- Kerb Mass: 7300kg
- Total Mass: 10900kg
- Passenger Capacity
- 55 total capacity / 10-25 seats
Chassis & Construction
Axle Configuration
- Front: Highway-machinery independent front axle
- Rear: Dongfeng 7T axle
- Body Construction
- Full unitized body with rectangular steel skeleton and prestressed planking
- Suspension Type
- Air SuspensionIndependent Front SuspensionBidirectional Shock AbsorbersRear Anti-roll Bar
Technology & Equipment
Onboard Technology
WIFIWireless Data TerminalVehicle Data RecorderSmoke AlarmInterior Monitoring System
Multimedia & Displays
- LED road signs
- Automatic stop announcer
- Interior electronic information display
- Reserved space for mobile TV
