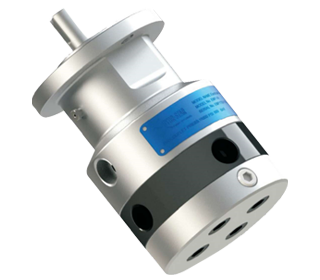

Electric Checkball Piston Pump
This electric pump is a piston pump designed to be driven by a motor, ideally an electric motor. It is suitable for use in wellhead control panel systems and power packs on high-torque service tools, using hydraulic oil as the application medium.
Technical Specifications
Product Overview
High-Performance Checkball Piston Pump
This electric checkball piston pump is engineered for demanding industrial applications, including wellhead control panel systems and high-torque service tool power packs. It features a robust, high-strength alloy steel body with optional stainless steel casing for enhanced durability. Designed for efficiency, the pump delivers high-pressure output up to 15,000 psi and operates with low noise levels, supporting both clockwise and counterclockwise rotation.
Performance Metrics
Rated Pressure
10,000 psi
Rated Pressure
690 bar
Rated Pressure
Max Intermittent Pressure
15,000 psi
Max Intermittent Pressure
1,034 bar
Max Intermittent Pressure
- Maximum Speed
- 3000 rpm
Operational Details
Flow Rate Options
- 0.64 l/min
- 1.02 l/min
- 1.4 l/min
- 2.1 l/min
- Rotation Direction
- ClockwiseCounterclockwise
Installation & Requirements
- Application Medium
- Hydraulic Oil
- Installation Requirement
- Must be installed at a lower position than the tank; vent air in the pump chamber before starting.
Technical Specifications

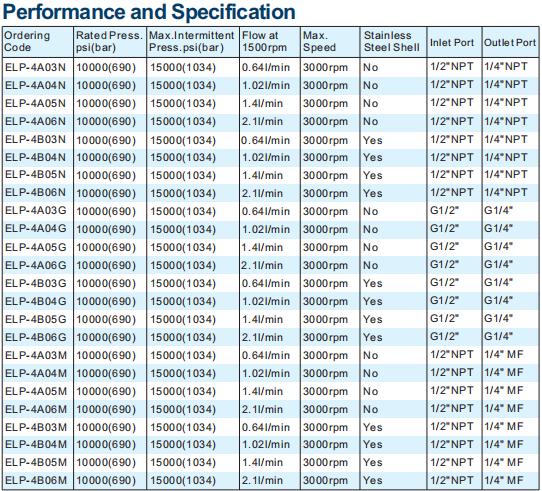

Performance Table
| Code | Flow at 1500rpm | Stainless Steel Shell |
|---|---|---|
| ELP-4A03N | 0.64 l/min | No |
| ELP-4A04N | 1.02 l/min | No |
| ELP-4A05N | 1.4 l/min | No |
| ELP-4A06N | 2.1 l/min | No |
| ELP-4B03N | 0.64 l/min | Yes |
| ELP-4B04N | 1.02 l/min | Yes |
| ELP-4B05N | 1.4 l/min | Yes |
| ELP-4B06N | 2.1 l/min | Yes |
