Technical Specifications
Product Overview
Built for Demanding Tasks

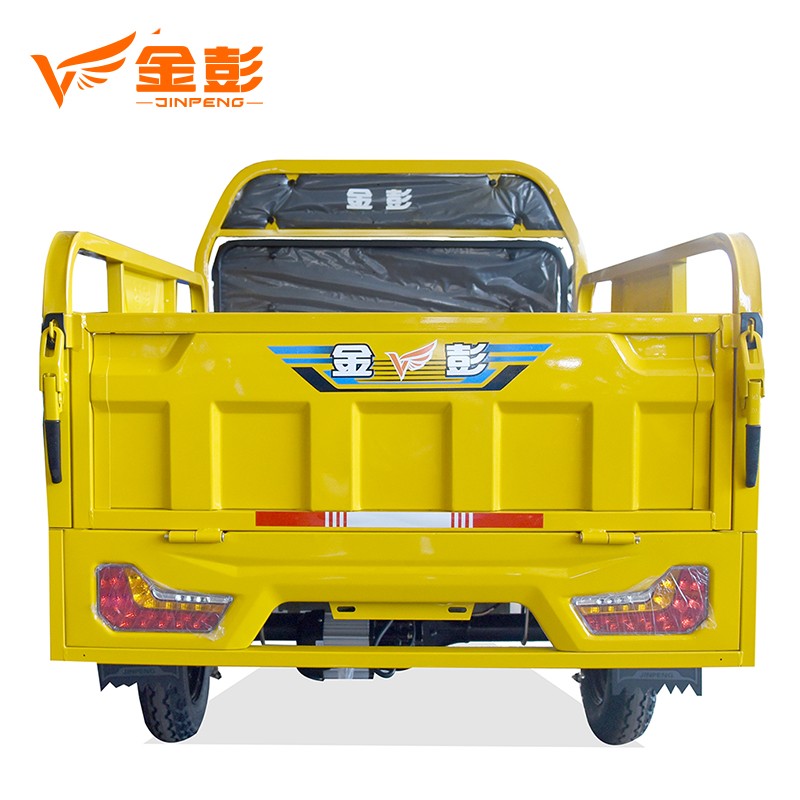

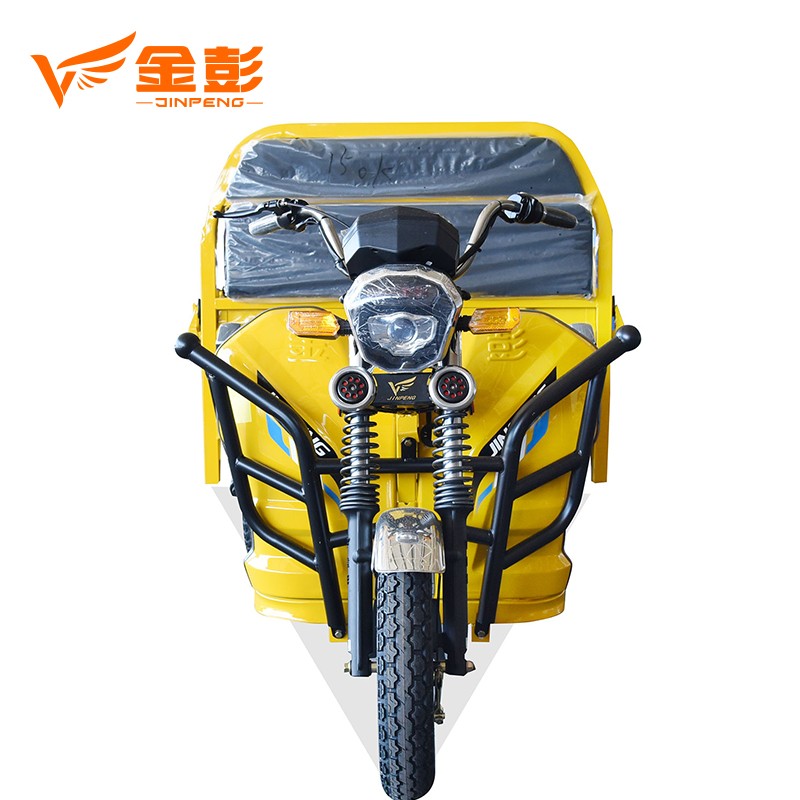

This electric cargo tricycle combines a powerful 1000W differential motor with a robust steel-frame construction to deliver reliable hauling capabilities. Engineered for performance, it features superior climbing ability and an efficient 60V power system, making it suitable for both commercial and personal use in various terrains. With its high-capacity cargo bed and focus on stability, this vehicle provides a dependable, eco-friendly solution for heavy-duty goods transport.
Performance
- Motor Power
- 1000 W
- Grade Ability
- 25%-28%
- Maximum Speed
- 25 km/h
- Range per Charge
- 60 km
Technical Specifications
- Overall Dimensions
- 2960 x 1175 x 1350 mm
- Cargo Box Size
- 1500 x 1100 x 330 mm
- Curb Weight
- 220 kg
- Loading Capacity
- 300 kg
Electrical System
- Battery System
- 60V 45Ah
- Charging Time
- 6-8 hours
- Controller
- 60V 45A 24-tube
Components
Tire Specifications
- Front: 3.5-12
- Rear: 3.75-12
- Braking System
- Front Drum BrakeRear Drum Brake
