Electric Actuated PPH UPVC Ball Valve
This electric actuated ball valve is constructed from PPH and UPVC for excellent chemical resistance. It features a mini motor for precise and reliable operation in various industrial applications.
Technical Specifications
Overview
High-Performance Electric Actuated Ball Valve
This electric actuated ball valve is designed for reliable flow control in demanding industrial environments, featuring a robust PPH and UPVC construction for superior chemical and wear resistance. Equipped with a high-performance brushless motor and internal overload protection, it offers a service life of over 20,000 cycles. Its simple yet effective sealing structure makes it an ideal choice for applications involving silicon powder, mineral powder, and mud pump systems.
Technical Specifications
Rated Torque
- Rated Voltage Options
- DC12VDC24V
- Pressure Rating
- 1.6 MPa
- Angle of Rotation
- 90° ± 2° (Max 360°)
- Running Time (per 90°)
- 10s (DC24V) / 15s (DC12V)

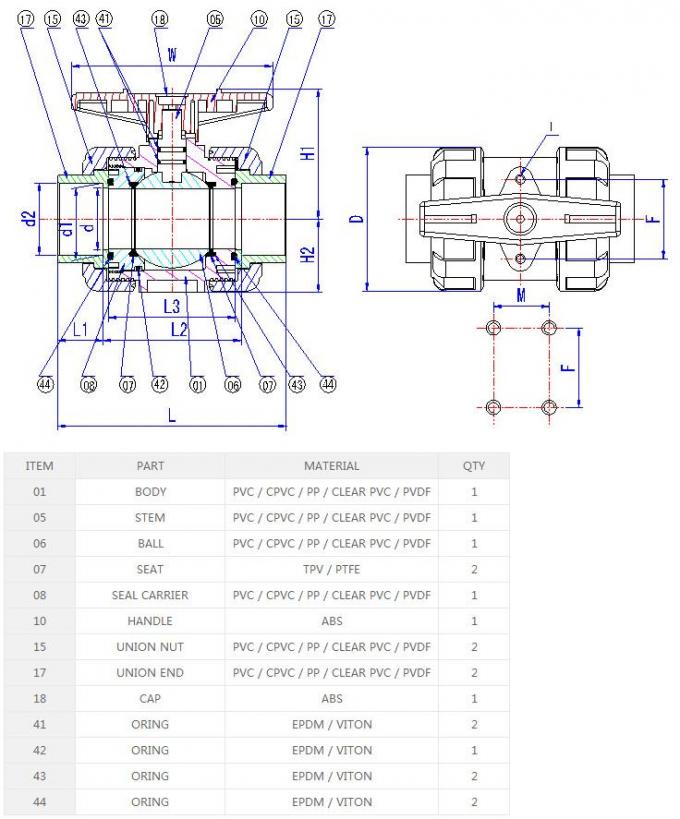

Material Composition
Component Materials
| Component | Material |
|---|---|
| Body / Stem / Ball | PVC / CPVC / PP / CLEAR PVC / PVDF |
| Seat | TPV / PTFE |
| O-Rings | EPDM / VITON |
| Handle / Cap | ABS |
Actuator Features
Safety Features
- Internal motor overload protection
- Manual operation via hexagon wrench (no power)
- Parallel operation support for multiple actuators
- Motor Type
- High performance brushless motor
- Sound Power Level
- 50 dB(A)
Installation & Maintenance
Wiring & Feedback Models

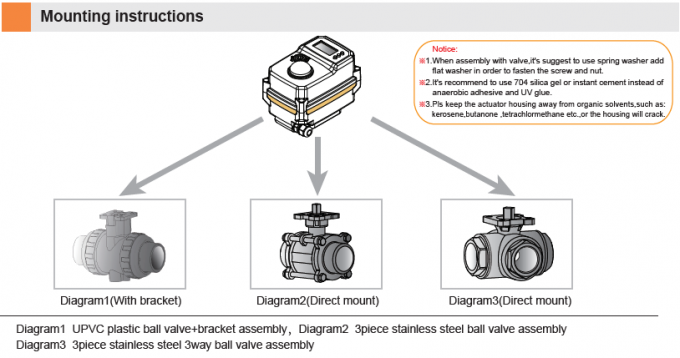

Mounting Options
- Bracket assembly
- Direct mount
Housing Protection
Keep the actuator housing away from organic solvents such as kerosene, butanone, and tetrachlormethane to prevent housing cracks. Use 704 silica gel or instant cement for assembly rather than anaerobic adhesives.
