Electric Actuated Ball Valve PPH UPVC 1.6MPa
This electric actuated ball valve features a PPH and UPVC construction for durability. It is designed for fluid control in industrial applications, offering resistance to wear and corrosion with a 1.6MPa pressure rating.
Technical Specifications
Overview
High-Performance Electric Actuated Ball Valve
This 1.6MPa PPH UPVC Electric Actuated Ball Valve is engineered for high wear resistance and reliable flow control in demanding industrial environments. Featuring a robust brushless motor and a durable plastic body, it is ideal for handling corrosive media such as mineral powder, mud, and chemical solutions. Its simple structure ensures quick operation and excellent sealing performance, making it a versatile choice for automated fluid systems.
Performance Metrics
Key Performance Metrics
1.6 MPa
Nominal Pressure
20 Nm
Rated Torque (DC24V)
20,000 Cycles
Service Life
10 S
Running Time (90°)
Electrical Specifications
Motor Features
- High performance brushless motor
- Internal motor overload protection
- Parallel operation support (2+ actuators)
- Manual override using hexagon wrench
- Rated Voltage Options
- DC12VDC24V
- Power Consumption (DC24V)
- 9.6W Running / 0.25W Holding

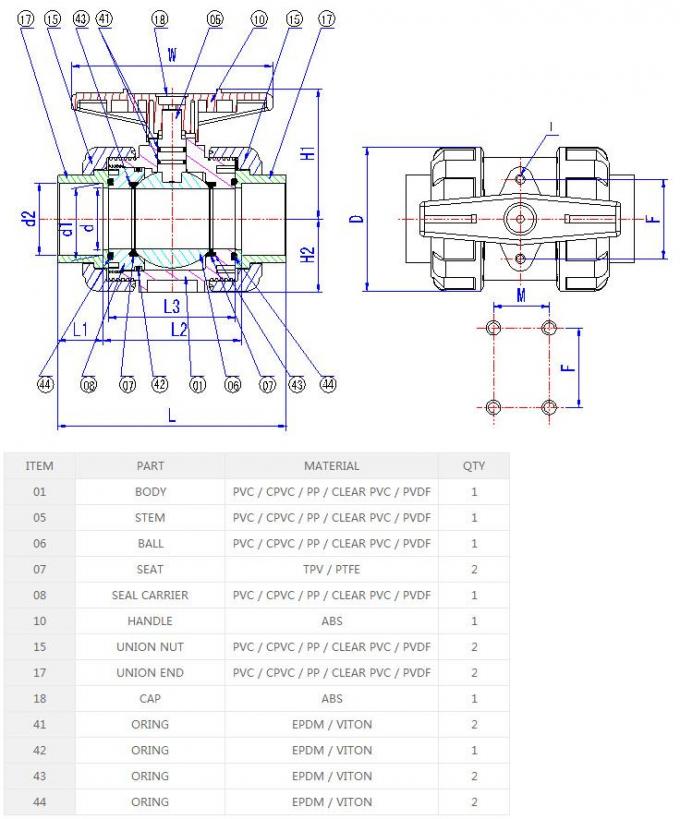

Material Composition
Component Materials
| Component | Material Options |
|---|---|
| Body / Ball / Stem | PVC, CPVC, PP, Clear PVC, PVDF |
| Seat | TPV, PTFE |
| O-Rings | EPDM, VITON |
| Handle / Cap | ABS |
Applications
- Suitable Media
- Silicon PowderMineral PowderCoal Powder GasMud Pump SlurryChemical ProcessingWater Treatment
Installation & Connectivity
Wiring & Feedback Models
B3BD3B3SBD3SB3CBD3C

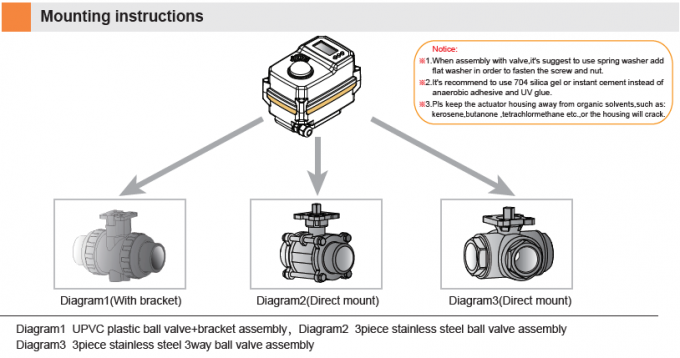

Valve Compatibility
- 2-way and 3-way ball valves
- UPVC plastic ball valve with bracket
- 3-piece stainless steel ball valve (Direct mount)
- 3-piece stainless steel 3-way ball valve
Technical Standards
- Operating Mode
- S3-85% (IEC60034-1-2017)
- Sound Power Level
- 50 dB(A)
