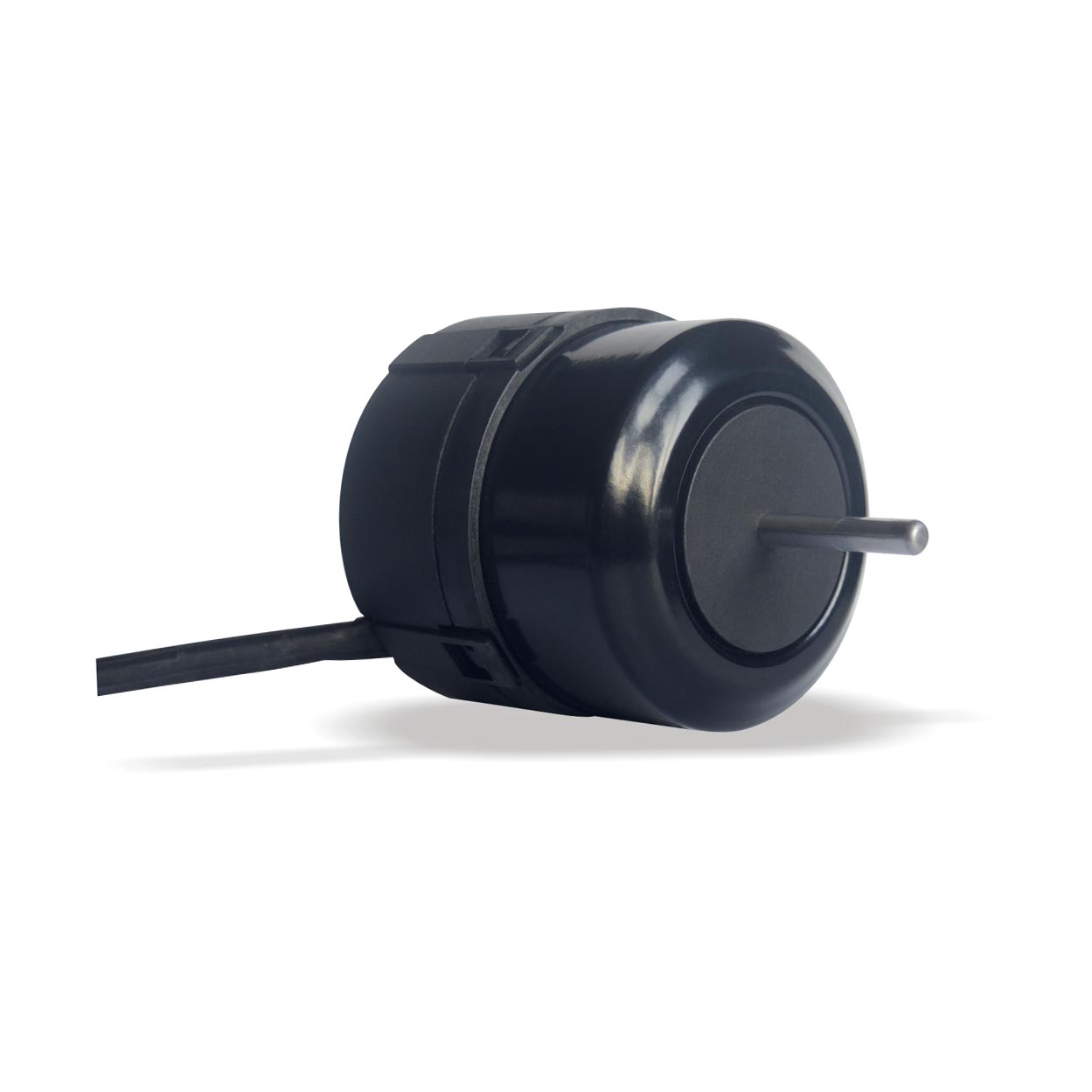

ECM50 Series Electric Motor for Fans
This ECM50 series motor is designed for extractor fans and small ventilators in residential settings. It features variable speed control, quiet operation, and a long operational lifespan.
Technical Specifications
Overview
ECM50 Series Efficiency Motors
The ECM50 series is a high-efficiency brushless DC (BLDC) motor engineered specifically for extractor fans and small ventilation applications. It features a compact external rotor design that ensures quiet operation and a long service life. Designed for reliability, the unit includes comprehensive electronic protection against over-current, over-load, and inverse power connection issues.
Technical Specifications
- Input Voltage
- 110VAC/220VAC
- Rated Output
- 3 W
- Rated Speed
- 2500 RPM
- Variable Speed Range
- 0-3000 RPM
- Rated Torque
- 0.01 Nm
- Efficiency
- 50 %
Features
Speed Control
- High speed mode
- Low speed mode
- Variable speed control (0-3000 RPM)
Electronic Protections
Over-current protectionOver-load protectionInverse power connection protection
- Motor Technology
- Three-phaseBLDCExternal Rotor
Key Metrics
Performance Highlights
2,500 RPM
Rated Speed
3 W
Rated Output
50 %
Efficiency
