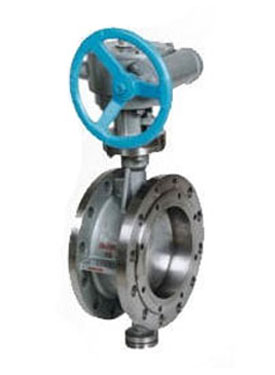

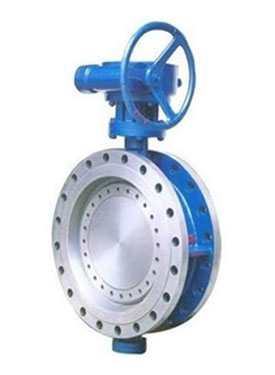

Eccentric Hard Sealed Butterfly Valve
This eccentric metal seal butterfly valve offers good corrosion resistance and a reliable seal. Increasingly used across industries, it is replacing traditional gate, globe, and ball valves in many applications.
Technical Specifications
Overview
High-Performance Eccentric Butterfly Valve
This eccentric metal-sealed butterfly valve is engineered for demanding industrial applications, offering superior corrosion resistance and reliable sealing performance. Designed to replace traditional gate, globe, and ball valves, it features a frictionless closure mechanism and bi-directional service capabilities. Its robust construction, including blow-out proof shaft and ISO top flange, ensures durability and ease of automation in critical flow control systems.
Technical Specifications
Operation Methods
- Lever
- Gear
- Electric
- Pneumatic
- Hydraulic
- Size Range
- 2" ~ 36" (DN50 ~ DN900)
- Pressure Rating
- ANSI 150lb ~ 600lb
- Body Materials
- Carbon SteelStainless SteelAlloy SteelDuplex Steel
- Disc Sealing Materials
- PTFEGraphite Laminated
Design Features
Eccentric Design
Triple EccentricDouble Eccentric
Key Design Features
- Metal to metal seated
- Bi-directional service
- Frictionless closure
- Blow-out proof shaft
- ISO top flange
Compliance & Standards
Applicable Standards
| Category | Standard |
|---|---|
| Design Standard | API 609, MSS SP-67, MSS SP-68, BS 5155 |
| Face to Face | API 609, ASME B16.10, BS 5155, EN1092 |
| End Connection | ASME B16.5, ASME B16.47 |
| Inspection and Test | API 598 |
