EC External Rotor Fan Motor
BLDC motors designed for fans in HVAC applications offer high efficiency and variable speed control. These motors provide quiet operation and a long operational lifetime.
Technical Specifications
Product Overview
High-Efficiency EC Fan Motor
This external rotor BLDC motor is engineered specifically for HVAC applications, offering superior energy efficiency and reduced operational costs. Designed for quiet, long-lasting performance, it features advanced electronic protections and flexible control options including 0-10VDC and PWM. With soft start capabilities and reversible rotation, this motor provides a reliable and maintenance-free solution for professional air-moving equipment.
Key Features
- Operational Features
- External Rotor TypeThree PhaseSoft StartSpeed FeedbackCW/CCW ReversibleMaintenance-Free
Control & Protection
Control Interfaces
- 0-10VDC Speed Control
- PWM Speed Control
Electronic Protections
- Over-current protection
- Over-load protection
- Blocking protection
- Wrong connection of power input protection
Performance Data

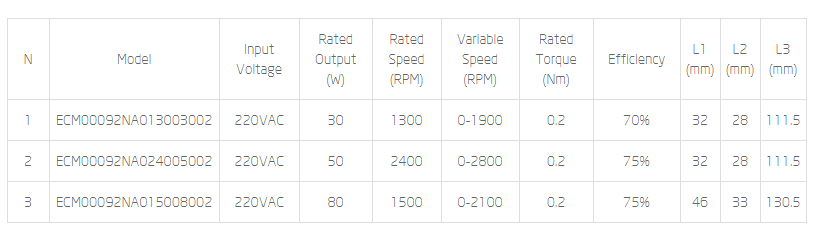

Performance Specifications
| Model | Output (W) | Rated Speed (RPM) | Efficiency |
|---|---|---|---|
| ECM00092NA013003002 | 30 | 1,300 | 70% |
| ECM00092NA024005002 | 50 | 2,400 | 75% |
| ECM00092NA015008002 | 80 | 1,500 | 75% |
- Input Voltage
- 220VAC
